Ultra Low Temperature Refrigerator Vertical 540×615×1115

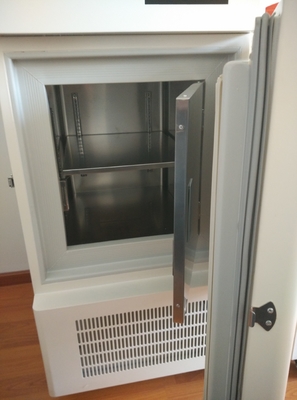

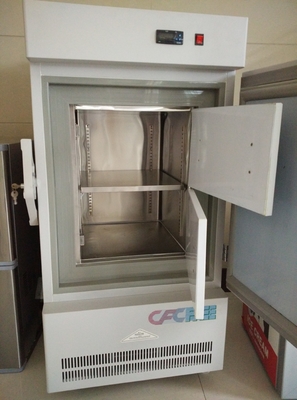

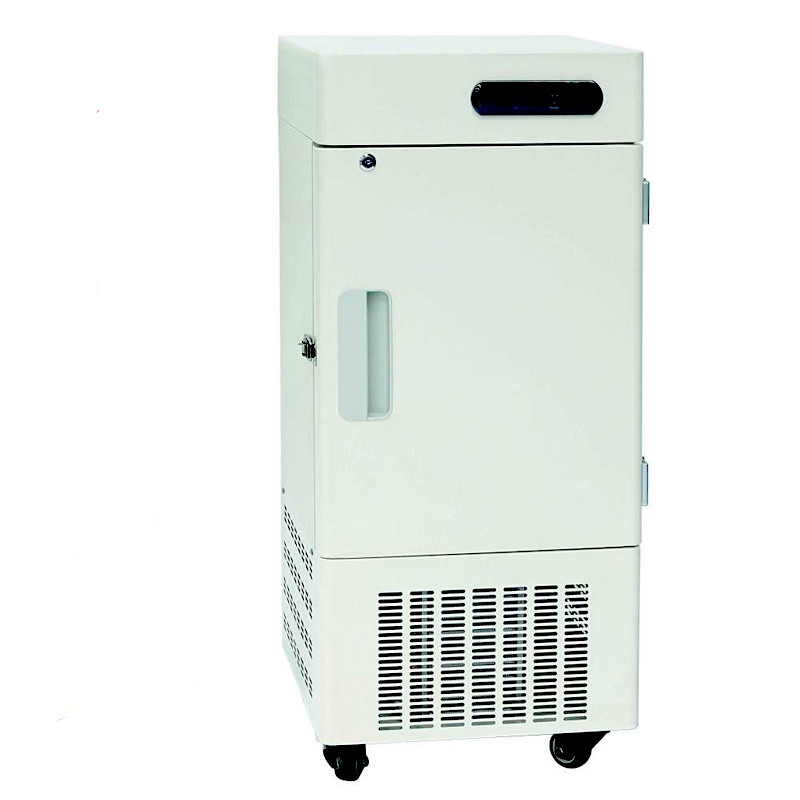

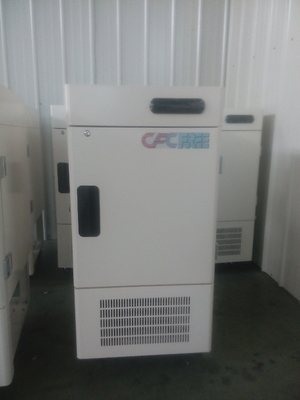

Large Image : Ultra Low Temperature Refrigerator Vertical 540×615×1115

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-6020B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Vertical Ultra-Low Temperature Refrigerator is packaged within wooden case.
Delivery Time:	4-7 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	40 sets / month

Contact Now

Detailed Product Description

Product Name:	Vertical Ultra-Low Temperature Refrigerator	Model:	ZL-6020B
Effective Volume:	56	Temperature Inside The Box:	-25℃～-65℃adjustable
Dimension（W×D×H）mm:	540×615×1115	Inner Liner Size (W×D×H)mm:	364×400×409
Supply Voltage:	220V 50Hz	Power Rating:	450
Protection Against Electric Shock:	Class I Type B
Highlight:	Ultra Low Temperature Refrigerator , 540×615×1115 Refrigerator

Vertical Ultra-Low Temperature Refrigerator - Model ZL-6020B

This vertical ultra-low temperature refrigerator is designed for scientific research institutions, ultra-low temperature experiments of special materials, electronic industry, chemical industry, military applications, university laboratories, biological engineering, and ocean-going fisheries.

Applications

Ideal for preserving viruses, germs, red blood cells, white blood cells, skin, bones, bacteria, semen, biological products, marine specimens, and for low-temperature testing of electronic devices.

Technical Specifications

Model	ZL-6020B
Effective Volume	56L
Temperature Range	-25℃ to -65℃ (adjustable)
External Dimensions (WDH)	5406151115 mm
Internal Dimensions (WDH)	364400409 mm
Shell / Liner Material	Cold-rolled steel plate spraying / 1mm thick stainless steel
Compressor	Danfoss
Sensors	PT100
Supply Voltage	~220V 50Hz
Power Rating	450W
Protection Against Electric Shock	Class I Type B
Climate Type	N
Refrigerant	Environmentally friendly refrigerant blends
Insulation Layer	100mm

Key Features

Precision Temperature Control: Microcomputer digital control with 0.1℃ adjustment resolution, adjustable range from -25℃ to -65℃, with configurable temperature differential settings and high/low temperature alarm functionality
Comprehensive Safety System: Multi-level protection including buzzer with sound and light alarm, high/low temperature alerts, sensor failure detection, password protection, frequent start-up protection, and continuous refrigeration during sensor failures
Advanced Refrigeration System: Extra-thick 100mm foam insulation with double-sealed door design, optimized self-repeating refrigeration system with imported Danfoss compressor, efficient evaporator design for optimal temperature uniformity, and 100% chlorine-free environmentally friendly mixed refrigerant
Single Compressor Design: Fewer components for reduced failure rates and lower energy consumption
Quiet Operation: German EBM silent fan for stable performance with minimal noise
User-Friendly Design: Built-in stainless steel shelves for flexibility and easy cleaning, food-grade stainless steel interior that never rusts, heavy-duty castors for mobility, safety door lock mechanism, top-mounted control panel for easy access, and clear LED temperature display
Operating Environment: Suitable for use in 10℃ to 30℃ ambient conditions
Optional Accessories: Digital temperature recorder with USB interface for data logging and analysis
