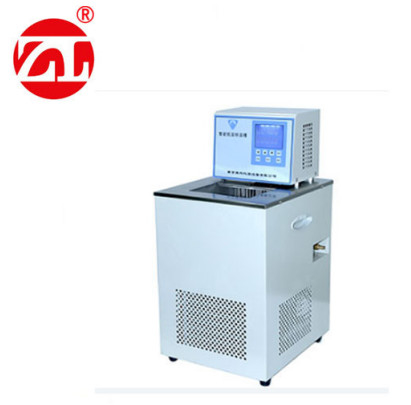

| Name: | Low-Temperature Constant Temperature Bath | Temperature Range:: | -20℃~150℃ |
|---|---|---|---|
| Inner Size (L*W*H): | 250*200*200mm | Slot Opening Size: | 180×150mm |
| The Host Size (L*W*H): | 420 × 360 × 820mm | 5.The Power Consumption Of The Whole Machine: | ≤ 1500W |
| Temperature Fluctuation: | ±0.1 | Temperature Control Accuracy: | ±0.1 |
| Digital Display Resolution: | 0.1℃ | ||
| High Light: | 250*200*200mm Constant Temperature Bath,ISO Constant Temperature Bath,1500W Low Temperature Bath |
||
Low temperature thermostat is suitable for petroleum, chemical, electronic instrumentation, physics, chemistry, biological engineering, medicine and health, life science, light industry and food, physical testing and chemical analysis and other research departments, colleges and universities, enterprise quality control and production departments. For example, the constant temperature of biochemical experiments or sample testing, the measurement and calibration of thermometer and platinum resistance, supporting the fermentation tank, cyclotron, electrophoresis instrument, photometer, chromatography column, rotary viscometer, rotary evaporator, rheometer, etc.
Product Features:
1.The temperature control system adopts PID temperature control technology, the accuracy can reach 0.05℃.
2. Adopt high quality corrosion resistant stainless steel inner chamber, volume from 7.5L to 30L optional.
3. the use of air-cooled fully enclosed compressor refrigeration, fast cooling speed, low noise, so that your laboratory quietly.
4. there are internal and external circulation, external circulation can be the tank of constant temperature liquid outside the lead, can establish a second constant temperature field to expand the scope of use.
5. a key to open the LCD large screen display, set the temperature and display temperature clearly displayed, easy to operate.
6.Refrigeration system with overheating, over-current protection, control system with over-temperature alarm, can set the upper and lower limits of over-temperature alarm temperature, over-temperature can automatically cut off the load.
7.optional RS232 or RS485 communication interface, to achieve data transmission with PC or PLC machine and other upper computer for long-distance control.
8.The optional inner slot liftable bracket can be used to realize the height adjustment of special experimental samples.
Main Parameters:
| 1.Temperature Range | -20℃~150℃ |
| 2.Inner size (L*W*H) | 250*200*200mm |
| 3.Slot Opening Size | 180×150mm |
| 4.The Host Size (L*W*H) | 420 × 360 × 820mm |
|
5.The Power Consumption of the Whole Machine |
≤ 1500W |
| 6.Temperature Fluctuation | ±0.1 |
| 7.Temperature Control Accuracy | ± 0.1 |
| 8.Digital Display Resolution | 0.1℃ |
| 9.Material | Inner liner 304 stainless steel, shell iron plate spraying |
| 10.Circulation | Internal and external circulation, pump flow rate of 10L per minute |
