Product Details:
Payment & Shipping Terms:
|
| Product Name: | IPX7 IPX8 Pressurized Water Immersion Test Chamber Water Spray Test Chamber | External Dimensions Of Water Tank: | Approx. Length 650*depth 650*height 1400mm |
|---|---|---|---|
| Box Size: | L600*W600*H1200mm | Maximum Test Water Depth: | 1.2m |
| Inner Box Thickness: | 1.5mm | Water Level Adjustment Method: | Water Inlet/drain Valve, Manually Adjustable |
| Water Level Display: | Stainless Steel Ruler (accuracy 1mm), Horizontal Visual Inspection | ||
| High Light: | Water Spray Test Chamber 1.5mm,Water Immersion Test Chamber,IPX8 Water Spray Test Chamber |
||

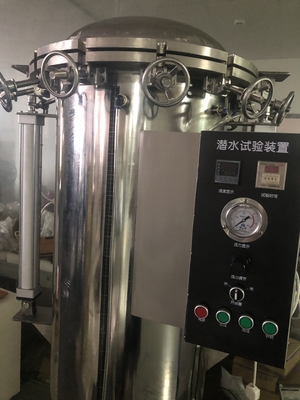

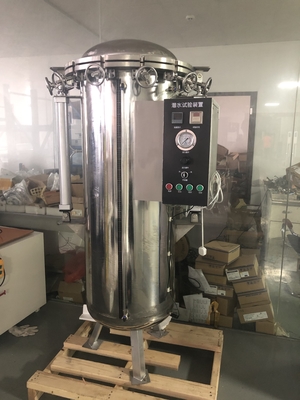

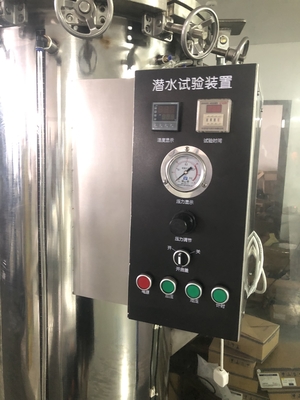

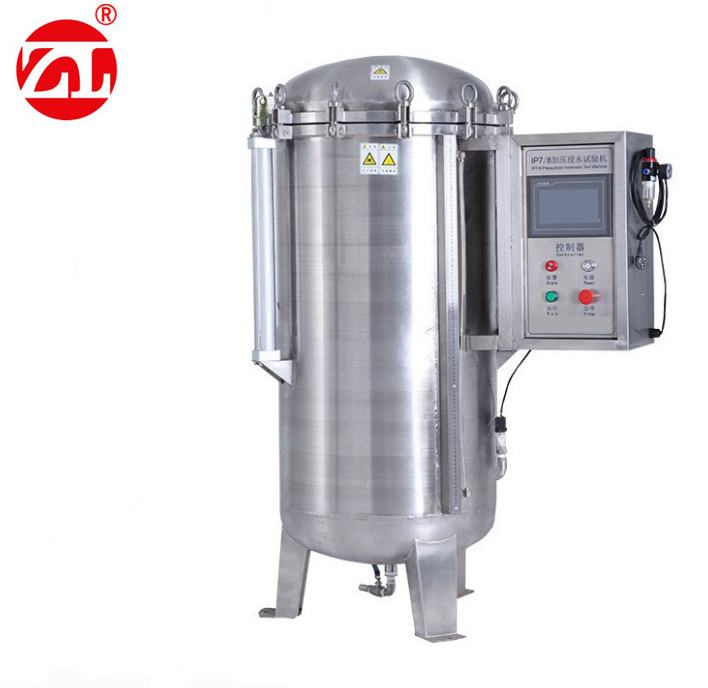

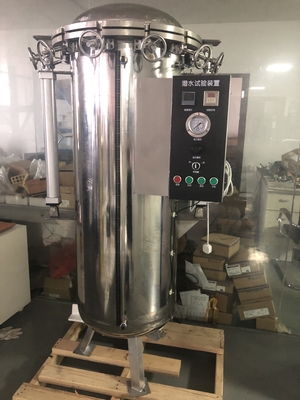

IPX7 IPX8 Pressurized Water Immersion Test Chamber Water Spray Test Chamber
Environmental Test Chamber.pdf
Equipment Overview:
Application Background: The damage to products and materials caused by natural water (rain, seawater, river water, etc.) causes incalculable economic losses every year. The damage caused mainly includes corrosion, fading, deformation, strength loss, swelling, mold, etc., especially electrical products due to rainwater caused by short circuit and very easy to cause fire. Therefore, for a specific product or material shell protection water test is essential a key procedure.
General application areas: outdoor lamps and lanterns, household appliances, auto parts and other electronic and electrical products.
Equipment function: The main role of the equipment is used for electronic electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and other products in the simulation of rainfall climate conditions, the physical and other related properties of the product testing. After the test, through the test to determine whether the performance of the product to meet the requirements, so that the product design, improvement, calibration and factory inspection use.
I. Implementation Standards:
Comply with IEC60529:1989 +A1:1999 +A2:2013 "Degrees of protection provided by enclosures (IP Code)", GB4208-2008 "Enclosure protection level (IP Code)" 14.2.7 and GB7000.1 "Luminaires Part I: General requirements and tests" 9.2.8. General requirements and test" 9.2.8 requirements.
1.Characteristics of the equipment: suitable for conducting IPX7 waterproof level test of products.
2.This box allows a maximum water depth of 1.2 meters, the bottom area: 600 * 600mm. (can be customized)
a, the inner layer is made of tempered glass, to ensure long time use without rust, no leakage, b overall beautiful and generous.
3.Inlet and outlet water pipeline is installed under the tank, and the water inlet valve is located above the back.
4. stainless steel bottom frame with load casters and foot cups, easy to move and fixed.
5.The stainless steel ruler accurately displays the water level.
6.A stainless steel hook is welded above the inner tank, which is convenient for users to take and put test samples.
II. Technical parameters:
| External dimensions of Water Tank | Approx. length 650*depth 650*height 1400mm |
| Box Size | L600*W600*H1200mm |
| Maximum Test Water Depth | 1.2m |
| Inner Box Thickness | 1.5mm |
| Water Level Adjustment Method | Water inlet/drain valve, manually adjustable |
| Water Level Display | Stainless steel ruler (accuracy 1mm), horizontal visual inspection |
III. Main configuration table:
| Name | Specification | Quantity |
| Inner Box | Tempered glass homemade | 1 set |
| Tempered Glass | Thickness 12mm | 1 piece |
| Caster | Global/3 | 4 |
| PP-R Valve Valve | 6 points | 2 |
| Stainless Steel Ruler | 1.5m (accuracy 1mm) | 1 hand |
| Piping Accessories | PP-R | 1 batch |
