Product Details:
Payment & Shipping Terms:
|
| Product Name: | IPX5-6 Strong Water-jet Tester | Outer Box Size:: | 1300* 3800* 200 MM (D*W*H) |
|---|---|---|---|
| Inner Box Size:: | 1200* 1200* 1200 MM (L*W*H) | Water Spray Head:: | 2 Water Jets Are Installed On Top. One IP5 Nozzle, One IP6 Nozzle |
| Spray Hole Inner Diameter: | 1- φ 6.3mm, IP5 (grade), 1- φ 12.5mm, IP6 (grade) | Pipe Diameter: | Six-point Union PVC Pipe |
| Water Spray Pressure: | 80～150kpa(Adjusted By Flow Rate) | Water Spray Flow Rate: | IP5(grade) 12.5±1(L/min), IP6(grade) 100±5(L/min) |
| Duration Of Water Spray: | 3、10、30、9999min(adjustable) | ||
| High Light: | Programmable Rainfall Test Chamber,IPX5 Rainfall Test Chamber,150kpa Rain Spray Test Chamber |
||

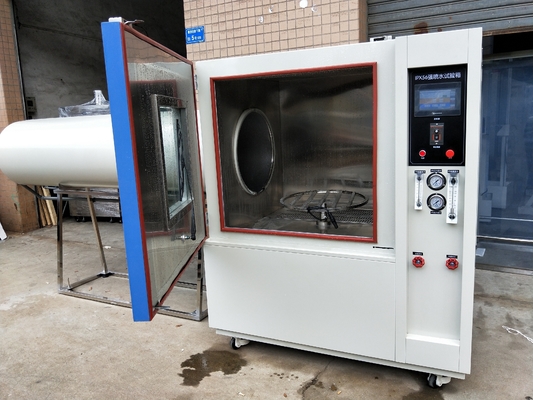

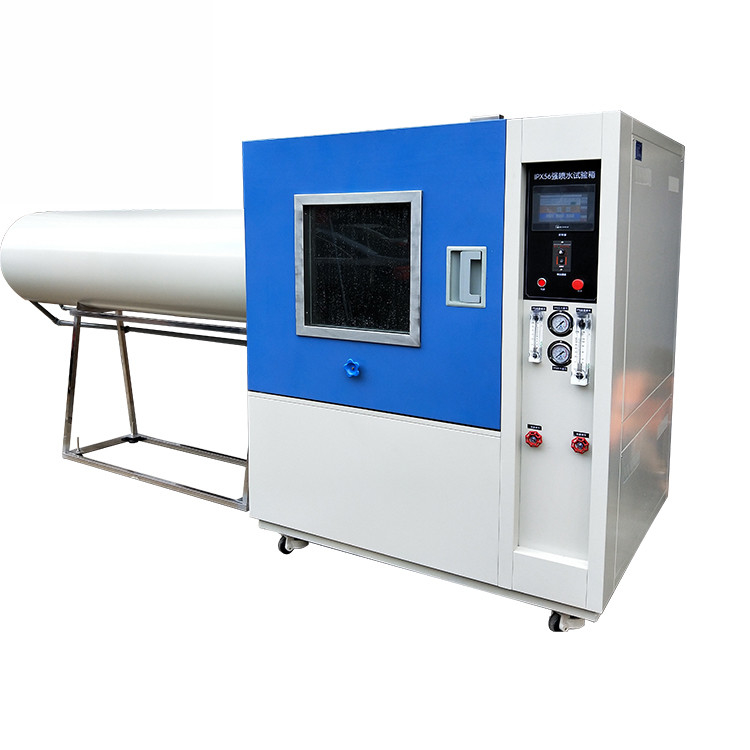

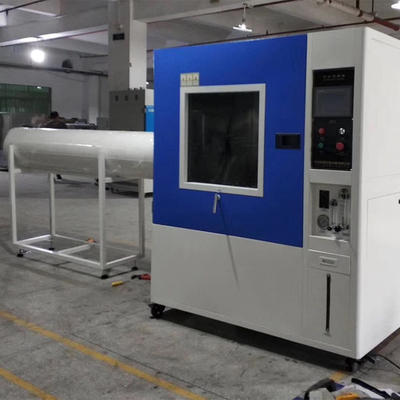

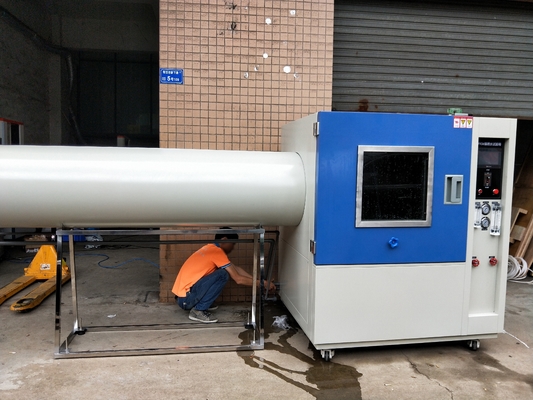

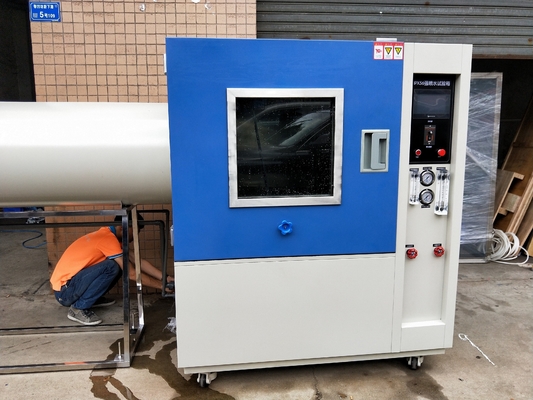

IPX5 IPX6 Programmable Rainfall Test Chamber Rain Spray Test Chamber
Environmental Test Chamber.pdf
IPX56 Rainfall Tester Horizontal Section Product Introduction:
The main role of the equipment is to test the performance of the product in the storage, transportation and use under the climatic environment of rain, the equipment is mainly used for electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and other products in the simulation of the climate conditions of rain, the physical and other related performance of the product testing, testing, through the calibration to determine the performance of the product is after the requirements, so that the product design, improvement, calibration and factory inspection use.
IPX56 Rainfall Tester Horizontal Models Meet The Standard:
Technical standards: in line with the national standard IPX5, 6 standard protection level.
Comply with the standard: GB2423,38-90, GB4706.32-2004 IEC-5129
Implementation standards: GB2423,38-20 GB4208 IEC-60529
IPX56 Rainfall Test Chamber Horizontal Section Product Parameters :
| Outer Box Size: |
1300* 3800* 200 MM (D*W*H) |
Inner Box Size: |
1200* 1200* 1200 MM (L*W*H) |

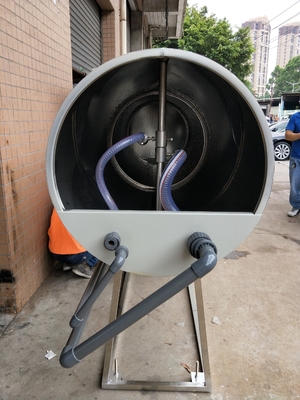

| Water Spray Head: | 2 water jets are installed on top. One IP5 nozzle, one IP6 nozzle | Spray Hole Inner Diameter: |
1- φ 6.3mm, IP5 (grade), 1- φ 12.5mm, IP6 (grade) |
| Pipe Diameter: | Six-point Union PVC pipe | Water Spray Pressure: |
80～150kpa(Adjusted by flow rate) |
| Water Spray Flow Rate: | IP5(grade) 12.5±1(L/min), IP6(grade) 100±5(L/min) | Duration of Water Spray: | 3,10,30,9999min(adjustable) |
| Turntable: | φ500MM | Rotational Speed: | 3±1R/min |
| Run Time Control: | 1M～9999min(adjustable) | Water Circulation System: | Ensure water recycling |
| Receiving Water Surface: | Product top surface | Water Spray Pressure Gauge: | Displayable water spray pressure control |
| Spraying System: | Composed of water pump, water pressure gauge, fixed nozzle bracket, area: 800×800㎜ | Test Chamber Outer Box: | It is made of tempered glass as waterproof wall and stainless steel square as support. |
