| Product Name: | IPX3 IPX4 Rainfall Test Chamber Climate Water Spray Test Chamber | Inner Box Size: | W600xD600xH 600 Mm (Customized Inner Box Size Available) |
|---|---|---|---|
| Outer Box Size: | W1100xD800xH1800 Mm | Inner Box Material: | 304 Mirror Finish Stainless Steel |
| Outer Box Material: | 304 Brushed Stainless Steel | Depending On Window Size: | 400x400 Mm |
| Test Bench Speed: | 1-5rpm Adjustable | Turntable Load: | 25KG |
| Diameter Of Water Spray Ring: | 400mm | ||
| High Light: | Rainfall Test Chamber,Rainfall IPX3 Test Chamber,Rainfall Test Chamber 400x400 mm |
||

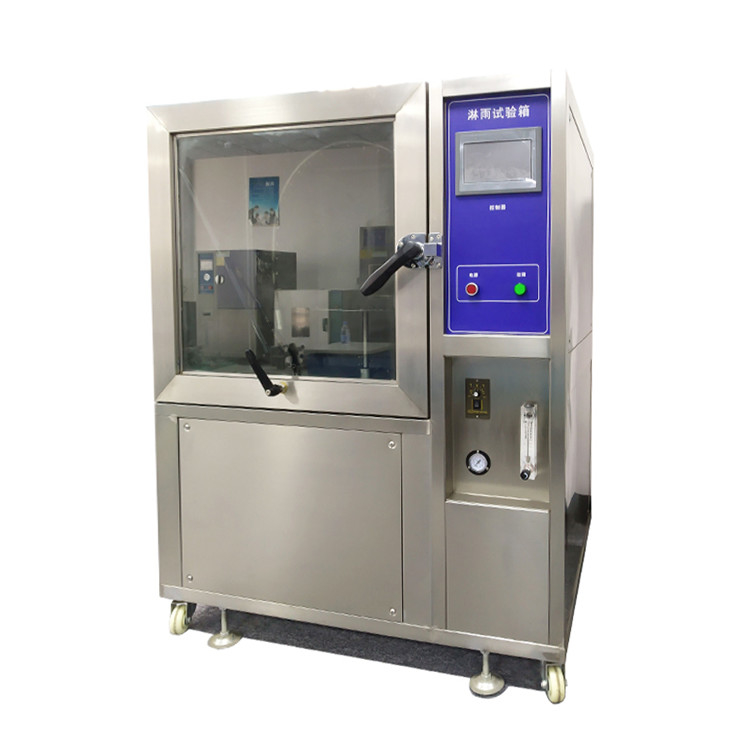

IPX3 IPX4 Rainfall Test Chamber Climate Water Spray Test Chamber
Environmental Test Chamber.pdf
Overview of the Machine:
This equipment is suitable for a variety of automotive parts and electronic appliances and other industrial electronic products against rain, dust and immersion in sand and water test, automotive parts including lights, door locks, electrical, instrumentation, dustproof cover, electronic household appliances and other systems of the full seal stability test.
Rain test chamber is an artificial simulation of rain test chamber, it is known that all the components and equipment in the atmospheric pressure environment, whether working state or storage state, will be affected by a variety of water (including impurities) to varying degrees, including rain recently seen, rain test is to prevent these devices after rain infiltration and rain when or after the degree of change in the effectiveness of the work.
The performance indicators of this test chamber meet GB/T10485 "automobile and trailer exterior devices, automobile and trailer exterior lighting and signal devices basic environmental test, industrial electronics basic environmental test" and JIS, MIL and other related test standards. ISO 20653-2006, GB-4208-93, GB2423.37-89La, GB4208- 93, DIN40050.5K and other corresponding national standards for rainfall testing.
| Equipment Parameters | |
| Specification Model | ZL-6016 |
| Inner Box Size | W600xD600xH 600 mm (Customized inner box size available) |
| Outer Box Size | W1100xD800xH1800 mm |
| Inner Box Material | 304 mirror finish stainless steel |
| Outer Box Material | 304 brushed stainless steel |
| Depending on Window Size | 400x400 mm |
| Test Bench Speed | 1-5rpm Adjustable |
| Turntable Load | 25KG |
|
Diameter of Water Spray Ring |
400mm |
| Spray Hole Diameter | 0.8 mm |
| Spray Hole Distance | 50mm spacing |
| Water Spray Pressure | Adjustable water flow as specified |
| Pendulum Diameter | 16 mm |
| Test Time | 1-999 minutes |
| Pendulum Angle | ±45°, ±60°, ±90°, ±180° (adjustable) |
| Using the Power Supply | 220V 1.5KW |
Machine Details:

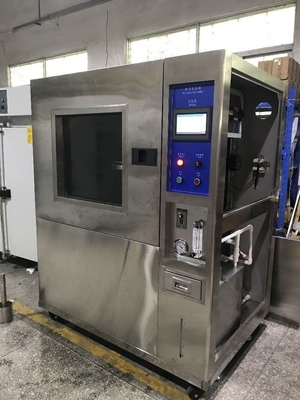

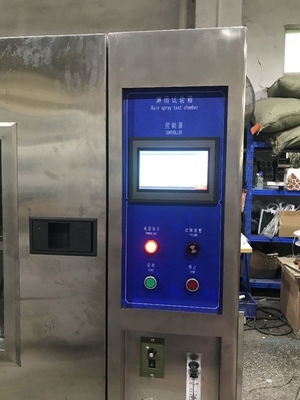

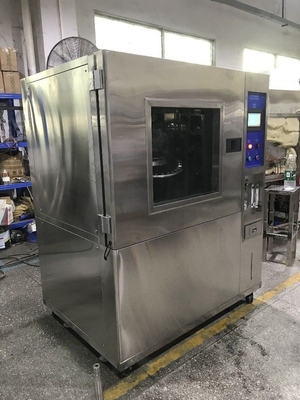

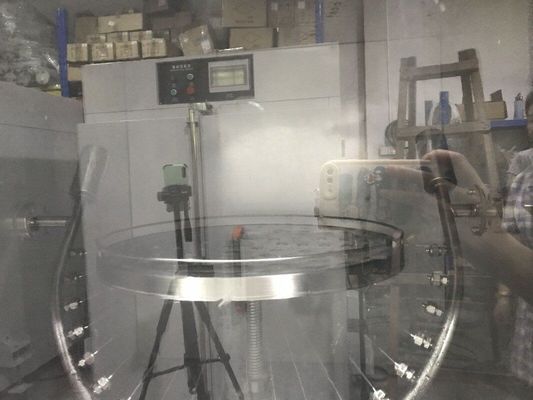

Factory real pictures display
We are Zhongli Instrument Technology Co., Ltd, an instrument Expert, Headquartered in Dongguan, Guangdong, China.since 2007, specialized in manufacturing Lab testing equipments.
Throughout its more than 14 years of history, Our products have sold well in the Europe, America and Southeast Asia market and total more than 95 countries these years,especially favored by European and American countries.
Our equipments cover a wide range of industries, such as rubber and plastics industry, food industry, packaging industry, electronics industry, etc.and are suitable for all scientific research units, quality inspection institutions and academic fields.
In addition to standard machines, our R&D team can customize it for you. Just tell us your needs and we will make you satisfied.
