UV Curing Lamp Flat Machine Spot UV Coating Chamber 150mm

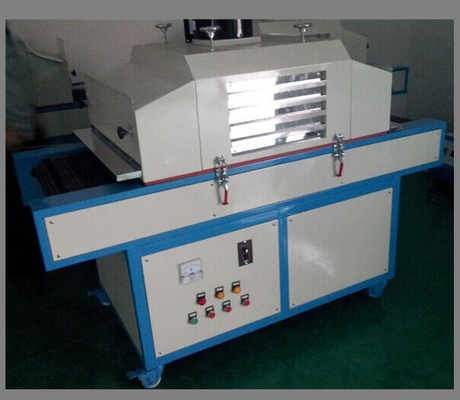

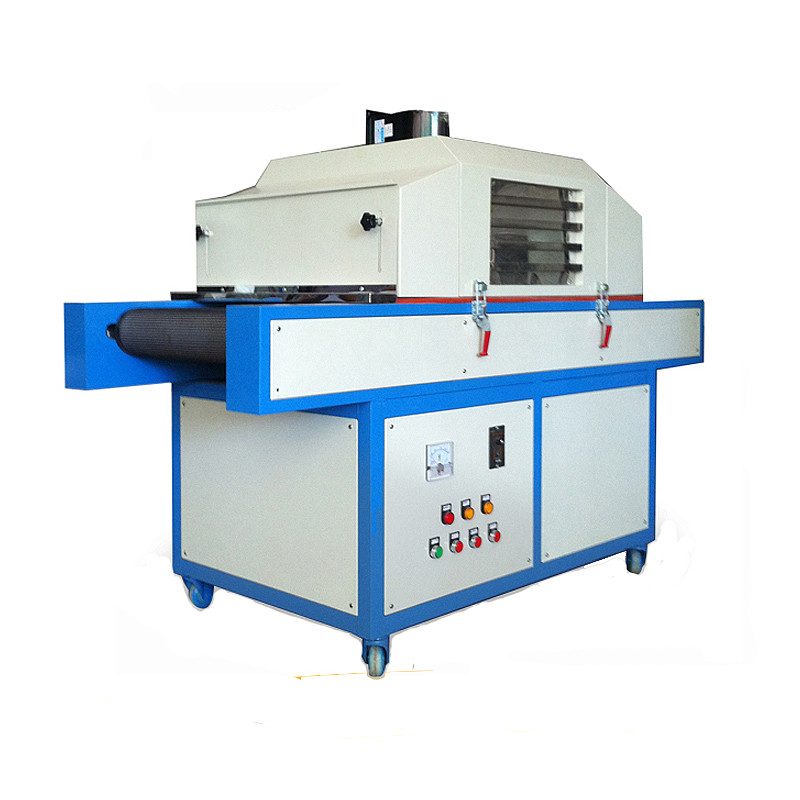

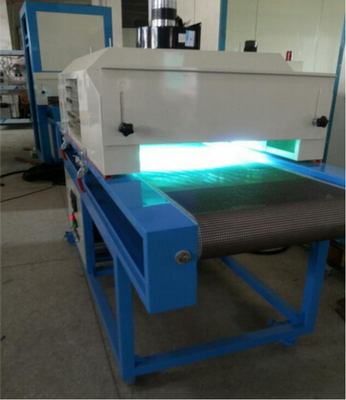

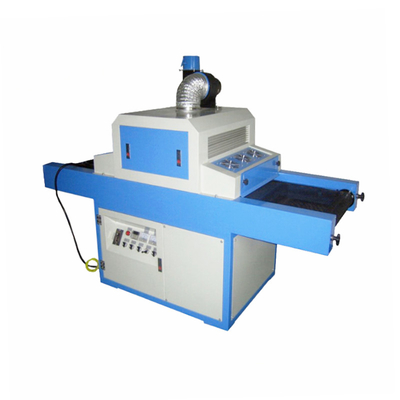

Large Image : UV Curing Lamp Flat Machine Spot UV Coating Chamber 150mm

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-6015

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	UV Curing Machine UV Lamp Flat Machine Spot UV Coating Chamber Price is packaged within wooden case.
Delivery Time:	4-7 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	40 sets / month

Contact Now

Detailed Product Description

Product Name:	UV Curing Machine UV Lamp Flat Machine Spot UV Coating Chamber Price	Machine Length:	2000mm
UV Working Area:	1200mm	Feed Operation Area:	400mm
Discharge Area:	400mm	Entrance Height:	100-150mm Can Be Adjustable
Entrance Width:	500mm	Conveyor Belt Distance To Floor:	Conveyor Belt Distance To Floor
Highlight:	UV Curing Lamp Flat Machine , UV Coating Chamber , UV Coating Chamber 150mm

UV Curing Lamp Flat Machine Spot UV Coating Chamber 150mm

Product Overview

The Flat UV Curing Machine is designed for UV curing on flat surfaces, specifically for drying solid processes and flat surface UV ink drying. This equipment is suitable for curing various UV inks, UV adhesives, UV paints on materials including plastic, glass, and hardware components.

Key Features

High-efficiency UV lighting system for rapid curing completion
Adjustable UV light intensity with customizable parameter settings
LED display for monitoring conveyor running speed
Durable construction using extra-thick stainless steel
Imported UV lamps and transformers with specialized ventilation design
Versatile compatibility with different UV curing processes
Full and half light switching capability for power efficiency
Cost-effective operation with enhanced production output

Machine Dimensions

Specification	Measurement
Machine Length	2000mm
UV Working Area	1200mm
Feed Operation Area	400mm
Discharge Area	400mm
Entrance Height	100-150mm (adjustable)
Entrance Width	500mm
Conveyor Belt Distance To Floor	750±50mm

Electrical Specifications

Component	Specification
General Power	7.0 kw 50A
Belt Speed Range	0-10m/min
Motor Power	800w
Speed Controller	500W
Exhaust Fan	CY-125
Ampere Meter	50A
Voltmeter	220V
Machine Voltage	220V±5% 50Hz Three-wire system

Curing Light Source

Ultraviolet radiation dry solid light source ensuring optimal curing effect
Effective radiation with lamp luminous length of 560mm (total length 800mm)
Lamp power adjustable range: 2KW-3KW
UV light source wavelength: 350μm for guaranteed curing performance
3KW UV lamp horizontally installed in cavity (left, top, right positions)
Complete controller panel included

Equipment Construction

Component	Material/Model
Outside Body of Working Tunnel	1.2mm high quality stainless steel \| A3
Work Space Tunnel Cavity	1.0mm mirror stainless steel plate \| #212
Body Brace	Rectangular tube steel \| 2" square tong
Wind System	Forced wind combination exhauster \| SANGJING
Thermal Insulation Material	Vacuum aluminum silicate + silk cotton double \| 60K
Conveyor Belt	Teflon Mesh Belt
Lamp Adjustable Height	100mm - 180mm Manual self-adjustment
Balancing Device	Smooth water goblet \| 5012100mm
