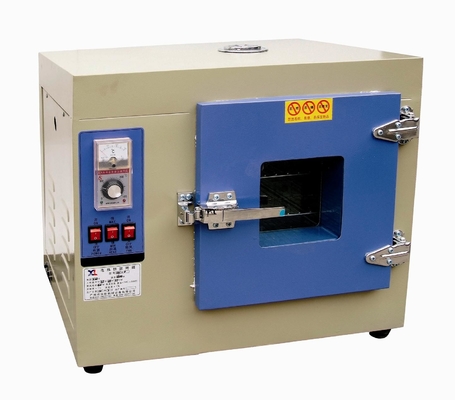

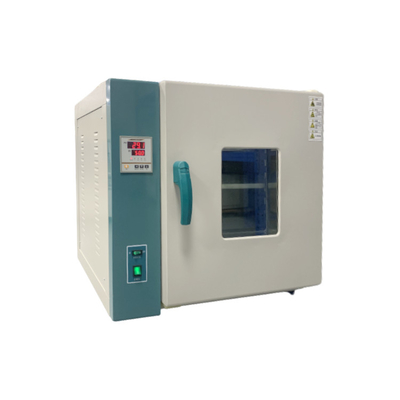

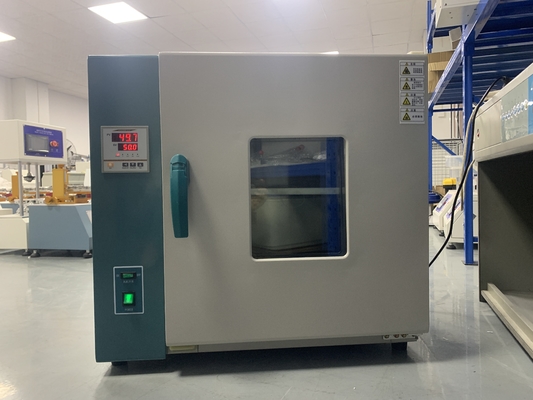

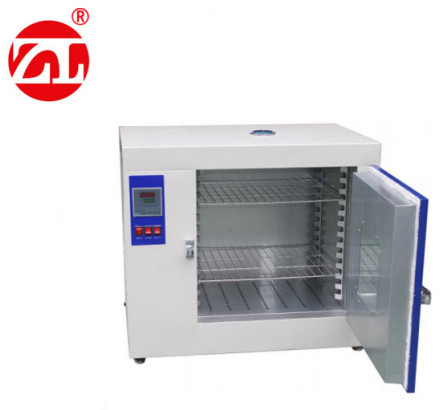

Industrial Heating Drying Chamber Stainless Steel Vertical Electric Oven 50HZ 1000W

Large Image : Industrial Heating Drying Chamber Stainless Steel Vertical Electric Oven 50HZ 1000W

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-6014A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Stainless Steel Vertical Electric Oven Industrial Heating Drying Chamber Price is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	Stainless Steel Vertical Electric Oven Industrial Heating Drying Chamber Price	Power:	220V 50HZ/380V 50HZ
Temperature:	50℃-300℃	Fluctuation:	±1℃
Following Alarm:	+5℃	Consume Power:	1000W
Inside Size (LWH)mm:	350350 350（Can Be Customized）	Outside Size (LWH)mm:	550350 675（Can Be Customized）
Highlight:	ISO Stainless Steel Heating Drying Chamber , Electric Oven 50HZ Drying Chamber , 1000W Drying Test Chamber

Industrial Heating Drying Chamber - Stainless Steel Vertical Electric Oven

This high-performance stainless steel vertical electric oven provides industrial heating and drying capabilities with 50HZ frequency and 1000W power consumption. Designed for precision thermal processing across various industries.

Equipment Overview

This industrial drying chamber utilizes high-temperature drying to eliminate microorganisms through oxidation and protein denaturation. Effectively sterilizes residual microorganisms within specified time periods.

Industry Applications

Widely used in paint, resins, plastics, printing and packaging, aluminum, adhesives, automotive, cosmetics, metals, electronics, electroplating, pharmaceutical, and related industries.

Technical Specifications

Model	6014-A	6014-B	6014-C	6014-D	6014-E	6014-F
Power	220V 50HZ		380V 50HZ
Temperature Range	50℃-300℃
Temperature Fluctuation	±1℃
Following Alarm	+5℃
Power Consumption	1000W	1500W	2000W	2500W	3500W	4500W
Internal Dimensions (LWH)mm	350350350	450350450	550450550	600500750	700650900	8008001000
External Dimensions (LWH)mm	550350675	600530775	700630875	7506801075	8508001285	9509801325

Note: Inner chamber available in galvanized plate material (A) or mirror stainless steel (AS)

Operating Environment

Working ambient temperature: 5℃～40℃ (average temperature ≤28℃ in 24 hours)
Ambient humidity: ≤85%

Primary Functions

This drying chamber is designed for glass drying, thermal denaturation studies, thermal induration experiments, moisture elimination, dry heat sterilization of glass vessels, preheating experiments, food and chemical hardening/softening processes, moisture removal, food preservation extension, building materials testing, electronic component drying, baking, disinfection, sterilization, and material degeneration testing.

Key Features

Constructed from high-quality steel plate or mirror stainless steel with plastic spraying finish
Double-layer tempered glass observation windows with modern aesthetic design
ZL-6014 A vertical electric drum wind with microcomputer intelligent control system
Overheating protection, time settings, and precise temperature control with minimal fluctuations
Tracking alarm function with mixing hot air circulation system
Minimal heat loss with independent drum wind and heating operation capabilities

Compliance Standards

Manufactured in strict accordance with JB/T5520 "Dry Box Technical Conditions" national industry standards.

Chamber Construction

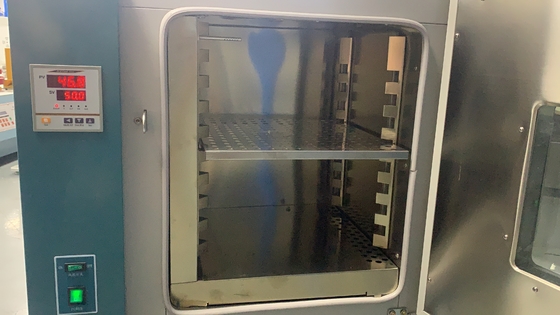

Inner liner constructed from mirror stainless steel plate with argon arc welding
Outer liner made of high-quality steel plate with plastic spraying treatment
Double-layer tempered glass observation window for clear visibility
Hot air circulation system with high-temperature fan and specialized air duct design
Uniform temperature distribution throughout the working chamber

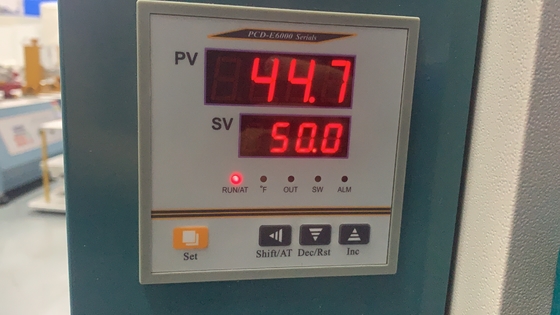

Microcomputer intelligent temperature control with overheating protection
Temperature control alarm system with automatic interruption for safe operation
