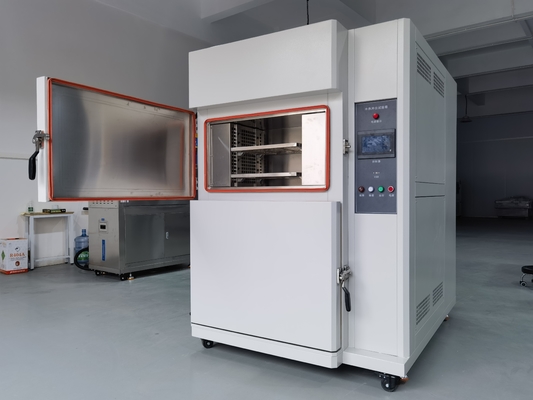

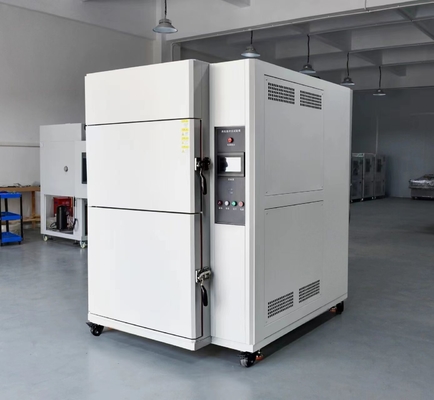

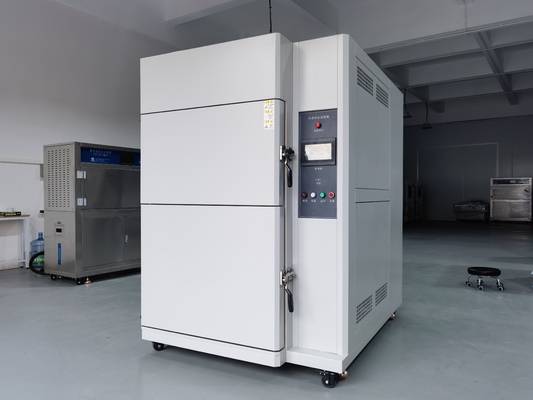

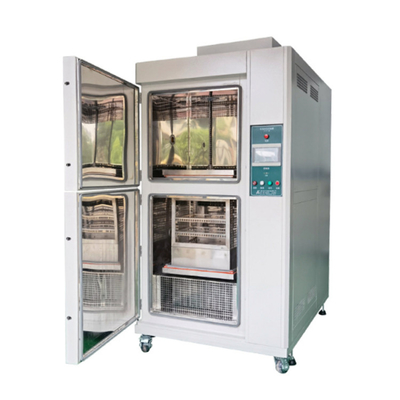

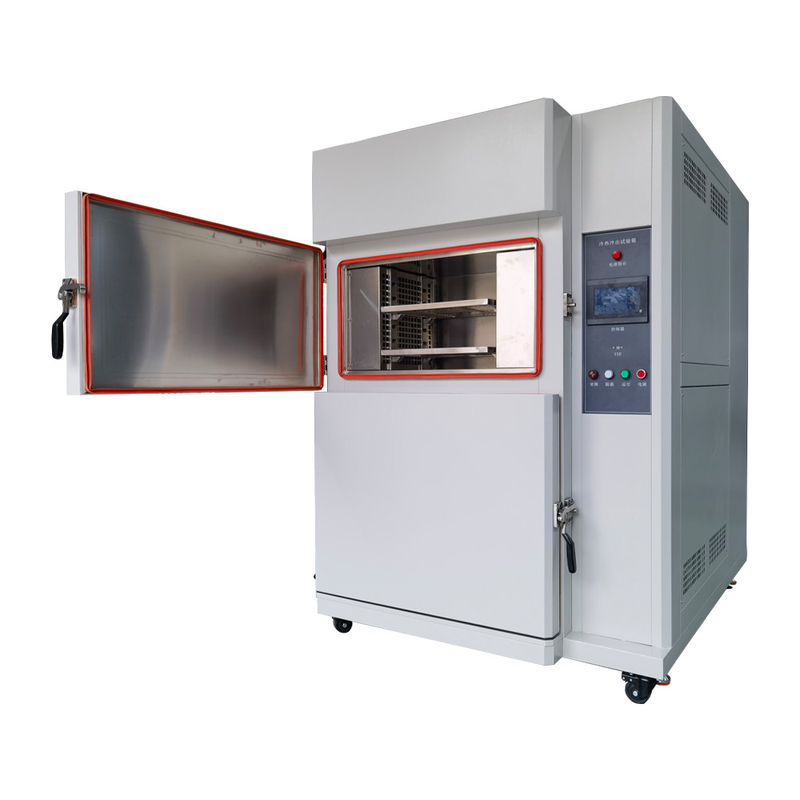

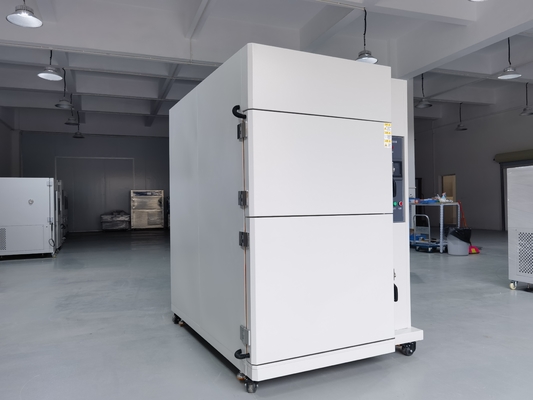

3 Zone Environmental Test Systems Thermal Shock Test Chamber

Large Image : 3 Zone Environmental Test Systems Thermal Shock Test Chamber

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-6012B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	3 Zone Thermal Shock Test Chamber Environmental Test Systems is packaged within wooden case.
Delivery Time:	4-7 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	40 sets / month

Contact Now

Detailed Product Description

Product Name:	3 Zone Thermal Shock Test Chamber Environmental Test Systems	Impact Temperature:	-40℃~~+150℃
Impact Time:	3 Minutes To Finish The Impact Temperature	High-Temperature Range:	80℃～170℃
Low-Temperature Range:	-60℃～-10℃	Temperature Stability:	±0.5℃
3 Temperature Zone:	Testing Zone, Preheating Zone, Precooling Zone	Insulation:	High-precision Glass Wool + PU Foam Rubber
Highlight:	Thermal Shock Test Chamber , 3Zone Environmental Test Chamber Systems , precooling zone Test Chamber Systems

3 Zone Environmental Test Systems Thermal Shock Test Chamber

The 3 Zone Thermal Shock Test Chamber is designed for comprehensive environmental testing, featuring separate high temperature, low temperature, and test areas with unique insulation structures for effective hot and cold impact testing.

Equipment Documentation

ZL-6012B Three-Slot Hot and Cold Impact Testing Machine Documentation

Equipment Overview

This thermal shock test chamber features three distinct zones: high temperature area, low temperature area, and test area, each with specialized insulation. The system performs hot and cold impact tests with maximum duration up to 9999 minutes and cycle count up to 9999 times. Operation can be automated or manual, with selective two-zone or three-zone impact testing. The binary cooling system provides effective cooling in both air-cooled and water-cooled configurations. Computer connectivity is available, with optional recording instruments. Features a color LCD touch-control interface supporting Chinese and English languages for easy operation.

Compliance Standards

GB/T2423.1-1989 Low-temperature Testing Method
GB/T2423.2-1989 High-temperature Testing Method
GB/T2423.22-1989 Temperature Test
GJB150.5-86 Temperature Impact Test
GJB360.7-87 Temperature Impact Test
GJB367.2-87 405 Temperature Impact Test

Industry Applications

Suitable for aviation, military, ships, electrical, electronics, instruments and meters; medical equipment; civilian nuclear energy; colleges and universities; research laboratories; commodity inspection, arbitration, and technical supervision departments; building materials ceramic; petroleum and chemical products. Designed for high and low temperature impact testing across multiple industries.

Technical Specifications

Model	ZL-6012-50	ZL-6012-80	ZL-6012-100	ZL-6012-150
*Inner Box Size (WHD) mm*	500300400	500400400	500500400	600500500
*Outer Box Size (WHD) mm*	190018702100	190020002100	198020002200	198021002250
Impact Temperature	-40℃ to +150℃
Impact Time	3 minutes to complete impact temperature transition
High-Temperature Range	80℃ to 170℃
Low-Temperature Range	-60℃ to -10℃
Heating Rate	2-3℃/min
Cooling Rate	1℃/min
Temperature Stability	±0.5℃
Temperature Accuracy	±1℃
Three Temperature Zones	Testing Zone, Preheating Zone, Precooling Zone
Impact Recovery Time	High-temperature (150℃): ~30min Low-temperature (-40℃/-55℃/-60℃): ~30min Impact Recovery: 5min
Inner Material	SUS #304 Stainless Steel
Outer Material	SUS #304 Stainless Steel
Insulation	High-precision Glass Wool + PU Foam Rubber
Cooling System	Copy Blowing Type or Water-cooled, Environmental Protection Refrigerant
Controller	Man-machine Interface with Touch-programmable Control
Protection Systems	Compressor Slide Off, Overheating, Over-temperature, Over-pressure, Dry Heat, Motor Overload Protection Switch
Attachments	Compartment Frame (2), Test Hole (1)
Power (kW)	13kW	15kW	18kW	20kW
Power Supply	AC380V±10% 3PH 50/60Hz

Primary Functions

The three-slot hot and cold impact testing machine evaluates the adverse effects on static samples exposed to rapidly changing high and low temperature environments. Commonly used for electronic components, automotive parts, and high-tech products requiring rigorous environmental condition testing and high tolerance requirements inspection.
