Thermal Shock Environment Test Chambers Cold And Hot 2 Zone Climatic Test SUS#304

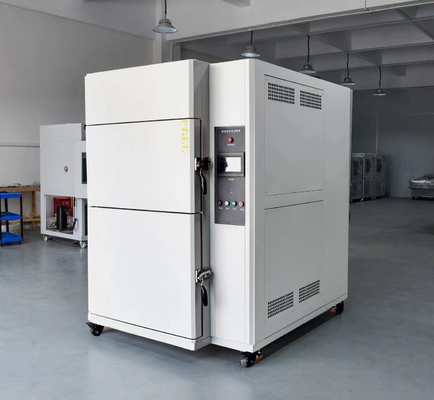

Large Image : Thermal Shock Environment Test Chambers Cold And Hot 2 Zone Climatic Test SUS#304

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-6012

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Cold and Hot 2 Zone Thermal Shock Environment Test Chambers Climatic Test is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	Cold And Hot 2 Zone Thermal Shock Environment Test Chambers Climatic Test	Inside Material:	SUS#304 Cold-Heat-resistant Stainless Steel
Temperature Range:	-75℃～＋180℃	Impact Temperature Range:	High Temperature 40℃～+150℃ Low Temperature -10℃～-65℃
Preheat Temperature Range:	＋60℃ ～＋180℃	Pre-Cooling Temperature Range:	－10℃～－75℃
Temperature Fluctuation Degree:	≤±0.5℃	Temperature Uniformity:	≤±2.0℃
Damper Changeover Time:	≤5S
Highlight:	2Zone Environment Test Chamber , Thermal Shock Test Chambers , SUS304 Environment Test Chambers

Thermal Shock Environment Test Chambers Cold And Hot 2 Zone Climatic Test SUS#304

Thermal Shock Test Machine, High & Low Temperature Environmental Control Chamber

Equipment Overview

Hot and cold impact testing machines are designed to test material changes under extreme high and low temperature environments that alternate continuously in the shortest time. These chambers evaluate chemical changes or physical damage caused by thermal expansion and contraction. The testing box is divided into two parts: a high-temperature region and a low-temperature region. Test samples are placed on a moving basket, utilizing unique heat storage and cool storage technology. A cylinder moves the basket up and down between hot and cold regions to complete thermal shock testing. This equipment is applied to test various materials including metal, plastic, rubber, electronics, and other materials, serving as a basis for product improvement.

ZL-6012A two-boxes air-cooled hot and cold impact testing machine documentation

Usage Description

The two-box hot and cold shock test chamber system structure is divided into high-temperature tank (preheating zone) and low-temperature tank (pre-cooling zone). Samples are placed in the test area, where high or low temperature impacts are achieved through high-pressure cylinder-driven switching between temperature zones. This static testing method assesses the ability of complete products, components, parts, and materials to withstand rapid temperature changes. The temperature shock test evaluates chemical changes or physical damage caused by thermal expansion and contraction in the shortest possible time, determining the impact of single or multiple temperature changes on test samples. Key parameters include temperature change range values, holding times at extreme temperatures, and test cycle counts. This equipment is essential for electronics, LED, metal, plastic, rubber, coating, paint, and various material industries.

Product Technical Parameters

Product Introduction

Name Model	2 Zone Thermal Shock Test Chamber CX-TC-50Z
Uses	This system assesses product, component, part, and material ability to withstand rapid temperature changes. The temperature shock test evaluates chemical changes or physical damage from thermal expansion and contraction in minimal time, determining the impact of consecutive temperature variations. Key parameters include temperature range values, retention times at extreme temperatures, and test cycle counts. Essential for electronics, LED, metal, plastic, rubber, paint, coating, and material industries.
Product Features	Brand new equipment with advanced, reasonable test system structure design and standardized manufacturing process Independent research and development product with intellectual property rights and aesthetically pleasing appearance World-famous brand components with advanced, reliable technical principles for optimal noise and energy control Precise part matching and assembly with international-grade components for long-term, high-frequency use reliability Excellent operability, maintainability, temperature stability, durability, and safety performance Environmentally safe with no pollution or health hazards Professionally labeled control cabinet wiring with clear, understandable line organization
Conformity to Standards	GB/T2423.1-2001 low-temperature test method GB/T2423.2-2001 GB/T2423.22-1989 temperature change test N National military standard GJB150.3-86 National military standard GJB150.4-86 National military standard GJB150.5-86 GJB150.5-86 temperature shock test GJB360.7-87 temperature impact test GJB367.2-87 405 temperature shock test EIA 364-32 thermal shock (temperature cycle)

Volumes and Dimensions

Effective Volume	50L
Inner Box Size	W400H350D350 mm
Outer Box Size	W1300H2000D1650 mm

Performance Specifications

(Measured at ambient temperature +5℃~30℃ no-load condition)

Temperature Range	-75℃～＋180℃
Impact Temperature Range	High temperature 40℃～+150℃ Low temperature -10℃～-65℃
Preheat Temperature Range	＋60℃ ～＋180℃
High Temperature Bath Ramp-Up Time	RT (room temperature) to +180℃≤30min (when room temperature is +10～+30℃)
Pre-Cooling Temperature Range	－10℃～－75℃
Low Temperature Bath Cooling Time	RT (room temperature) ~ -75℃≤80min (room temperature at +10- ＋30℃)
Temperature Fluctuation Degree	≤±0.5℃
Temperature Uniformity	≤±2.0℃
Damper Changeover Time	≤5S
Shock Return Time	－65-- ＋150℃≤5min
Power Supply	AC3¢ 5W 380V 50Hz (R, STN three-phase four-wire plus grounding wire) (voltage fluctuation ≤ ±10%)
Total Power	24KW
Performance Ambient Temperature Requirement	0~+30℃
Cooling Method	Water cooling system
Energy-Saving Design	Refrigeration system adjusts power according to load size using PID + PWM VRF technology with electronic expansion valve servo control and compressor energy regulation for optimal energy efficiency
