Product Details:
Payment & Shipping Terms:
|
| Product Name: | Climate Anti Yellow Aging Test Chamber Leather Rubber Yellowing Aging Tester Factory | Temperature: | Room Temperature ~ 80 ℃ |
|---|---|---|---|
| Placement Of Test Material Disk: | φ30cm Rotation, 3 +- 1rpm | Heating Mode: | Hot Air Circulation |
| UV Light Source: | UV300W Bulb | Manufacturing Material: | Internal SUS#304 Stainless Steel Plate, External Senior Baking Paint |
| Safety Protection: | EGO Over-temperature Power-off Indicator, Safety Overload Switch Ammeter | Light Source: | Bulb Type |
| High Light: | AC220V Test Leather Rubber Chamber,ISO Climate Test Chamber,UV300W bulb Test Chamber |
||

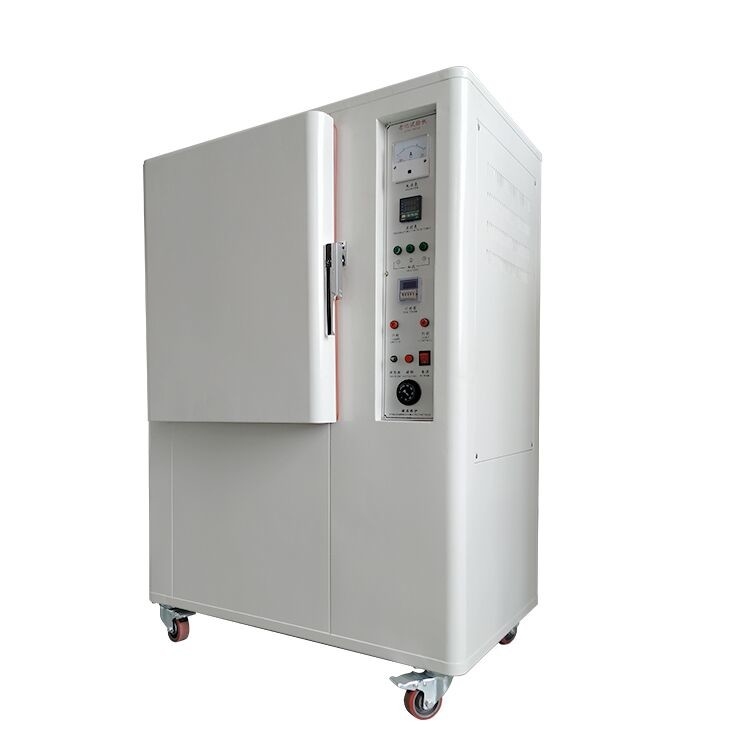

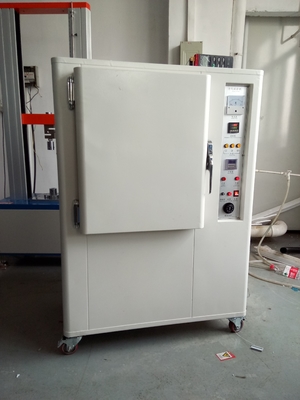

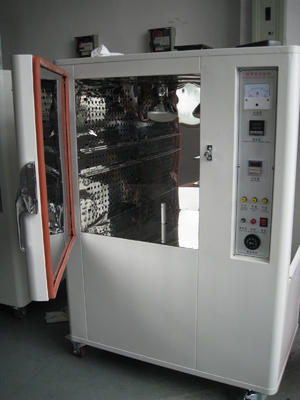

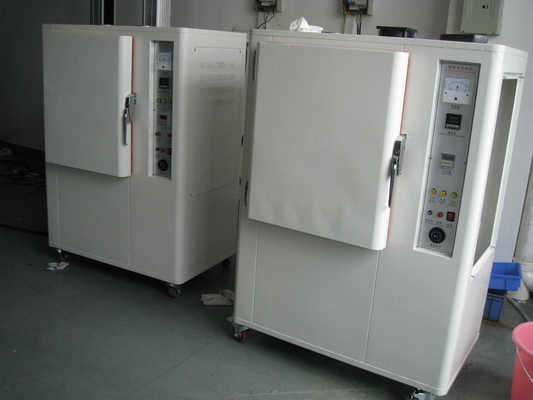

Climate Anti Yellow Aging Test Chamber Leather Rubber Yellowing Aging Tester Factory
Corresponding standard:
CNS-3556,JIS-K6301,ASTM-D2436,ASTM D1148
Introduction:
This machine specializes in the determination of white or light-colored bon materials, soles, leather, PU, fabrics and other shoe materials, the degree of yellowing resistance to light exposure, the use of sunlight bulbs and heating temperature control device, irradiation specimens, test specimens in the sunlight resistance to yellowing, suitable for doing arbitration and precision scientific research, development of the work.
The Technical Parameters:
| Light Source | bulb type |
| Placement of Test Material Disk | φ30cm rotation, 3 +- 1rpm |
| Temperature Range | room temperature ~ 80 ℃ |
| Heating Mode | hot air circulation |
| UV Light Source | UV300W bulb |

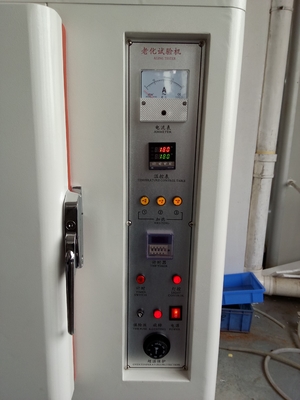

| Safety Protection | EGO over-temperature power-off indicator, safety overload switch ammeter |
| Manufacturing Material | internal SUS#304 stainless steel plate, external senior baking paint |
| Insulation Layer | glass fiber |
| Light Density | adjustable |
| Timer | LED, 0~9999 hr |
| Horsepower | 1/4HP |
| Inner Box | 50×50×60 cm |
| Volume | 100×65×117cm |
| Weight | 135kg |
| Power | 1∮,AC220V,15A |
| Light Source Working Life | 1000h |
