Product Details:
Payment & Shipping Terms:
|
| Product Name: | Advanced Spray Solor Plate Xenon Lamp Weather-resistant Environmental Chamber | Xenon Test Chamber Lamp Weather-Resistant Testing Machine Environment Test Equipment: | 500×500×600 Mm |
|---|---|---|---|
| External Size D×W×H: | 1150×1200×1900mm | Temperature Range: | 20℃～100℃ (can Be Adjusted Freely In The Allowed) |
| Temperature Deviation: | ±1℃ (without Lighting) | Humidity Range: | 65～98％R.H |
| Type Of Light Source: | Imported Air-cooled Full Solar Spectrum Long Arc Xenon Lamp (average Service Life Is About 1500 Hours) | Rain Time: | 1～9999 Minutes, Adjustable |
| High Light: | Weather Resistant Xenon Test Chamber,Lamp Xenon Test Chamber,Xenon Lamp Environment Test Equipment |
||

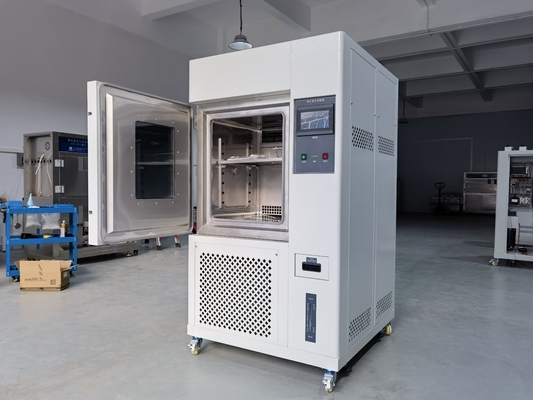

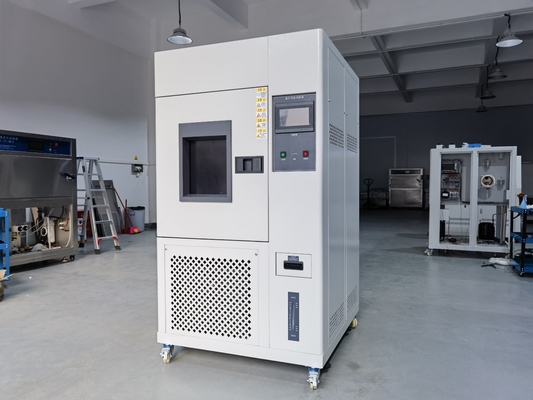

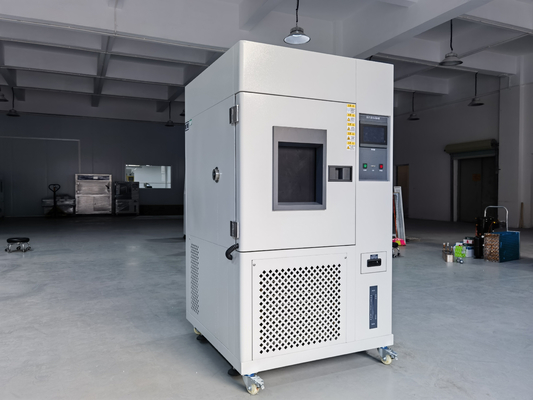

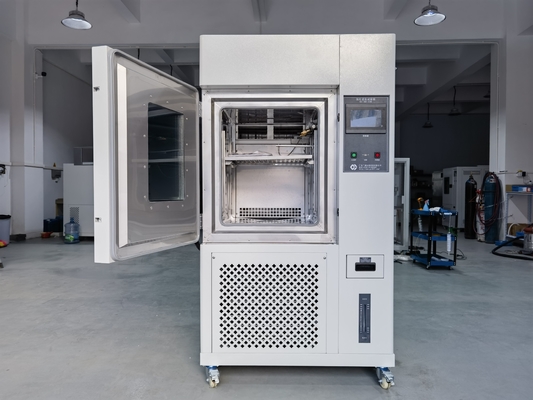

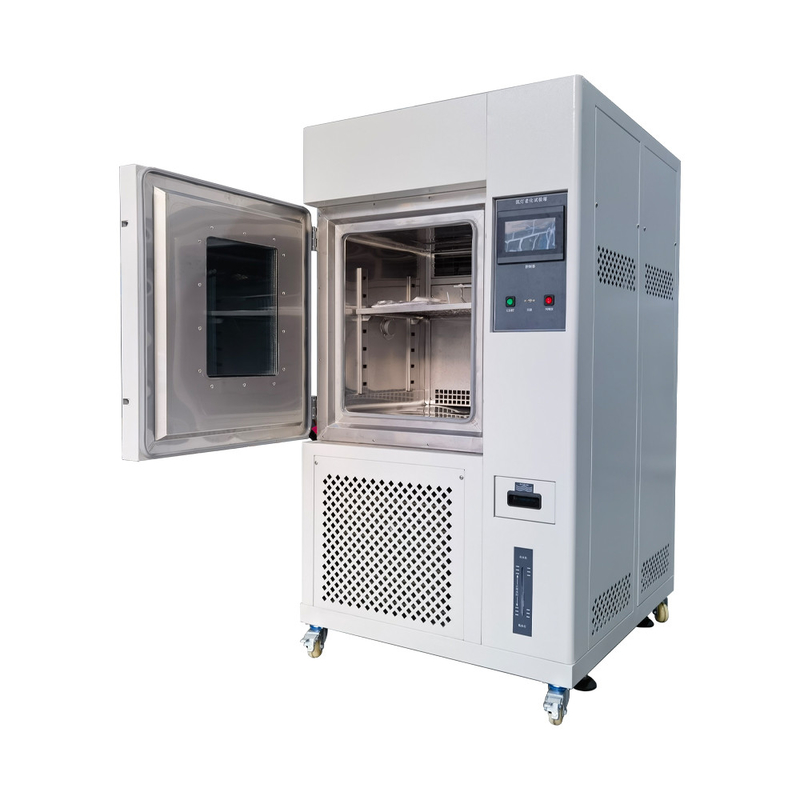

Xenon Test Chamber Lamp Weather-Resistant Testing Machine Environment Test Equipment
Equipment Summary:
Xenon lamp aging test is a comprehensive weather test device. In addition to weather aging test, it can also test the light resistance of high-quality materials, that is, polymer materials are exposed to artificial light sources that simulate the sunlight spectrum through glass to evaluate the light resistance of materials. performance. Carry out simulation and intensified tests from the main climatic factors of light energy, temperature, rainfall or condensation, and humidity; use xenon arc lamps that can simulate the full sunlight spectrum to reproduce the destructive light waves existing in different environments; xenon lamp weather resistance tests The box can provide corresponding environmental simulation and accelerated tests for scientific research, product development and quality control. It can be used for tests such as the selection of new materials, the improvement of existing materials or the evaluation of changes in durability after changes in material composition; suitable for plastics, rubber, paints , Paint, ink, paper, medicine, food, cosmetics, textiles, auto parts, packaging materials, construction materials, electrical and electrical products, etc.
KB xenon lamp test chamber uses a xenon arc lamp that can simulate the full sunlight spectrum to reproduce the destructive light waves existing in different environments, and can provide corresponding environmental simulation and accelerated tests for scientific research, product development and quality control.
KB xenon lamp test chamber can be used for tests such as the selection of new materials, the improvement of existing materials, or the evaluation of changes in durability after changes in material composition. It can well simulate the changes in materials exposed to sunlight under different environmental conditions.
Feature:
Simulate Full Sunlight Spectrum:
KB measures the light resistance of the material by exposing the material to ultraviolet (UV), visible light and infrared light. It uses filtered xenon arc lamps to produce a full sunlight spectrum with the greatest consistency with sunlight. The xenon arc lamp with reasonable filtering treatment is the best way to test the product's sensitivity to long-wavelength ultraviolet and visible light in direct light or sunlight through glass.
1. Light Resistance Test Of Indoor Materials:
Due to long-term exposure to fluorescent lamps, halogen lamps or other light-emitting lamps, products placed in retail outlets, warehouses or other environments will also experience significant photodegradation. The KB xenon lamp test chamber can simulate and reproduce the destructive light in such commercial lighting environments, and can accelerate the test process with higher intensity.
2. Simulated Climate Environment:
In addition to the photodegradation test, the KB xenon lamp test box can also become a weathering test box by adding a water spray option to simulate the influence of outdoor moisture on the material.
3. Relative Humidity Control:
Some types of KB xenon lamp test chambers can provide relative humidity control. For many humidity-sensitive materials, this function is also very important, and many test protocols also require humidity control.
Technical Specifications and Parameters:
| Inner Size D×W×H | 500×500×600 mm |
| External Size D×W×H | 1150×1200×1900mm |
| Temperature Range | 20℃～100℃ (can be adjusted freely in the allowed) |
| Temperature Deviation | ±1℃ (without lighting) |
| Humidity Range | 65～98％R.H |
| Humidity Deviation |
±2.5%R.H(humidity≥75%R.H) ±3%R.H(humidity≤75%R.H) (Without Light) |
| Type of Light Source | Imported air-cooled full solar spectrum long arc xenon lamp (average service life is about 1500 hours) |
| Rain Time | 1～9999 minutes, adjustable |
| Rain Cycle | 1～240 minutes, interval (break) adjustable |
| Spectral Wavelength | 290nm～800nm |
| Xenon Lamp Power | 1CW, 2.5KW (lifetime: 1200 hours) |
|
Light Source Wavelength Range |
290-800nm |
| Heating Power | about 4.6KW |
| Humidification Power | about 3KW |
| Light Source Irradiance | Full spectrum 300-800w/m2 (continuously adjustable); The energy compensation of the xenon lamp is realized by adjusting the voltage and current. |
| Irradiation Area: | about 5500cm2 |
|
Distance from Arc Center to Sample Holder |
350～380mm |
|
Rotating Speed of Sample Rotating Basket |
None |
| Water Spray Time | 0～99h 59min, continuously adjustable |
| Stop Spraying Time | 0～99h 59min, continuously adjustable. |
| Illumination Time | Can be programmed continuously |
| Blackboard Temperature | 63℃, 100℃ (deviation ±3℃) |
| Cooling Method | Mechanical cooling and air cooling |
| Total Power and Power Supply | about 7.5KW; 380V±10% 50HZ |
| The main technical parameters of the above products are measured at room temperature below 26℃, relative humidity ≤85%R.H, and no-load working room, after two hours of constant temperature and humidity. | |
