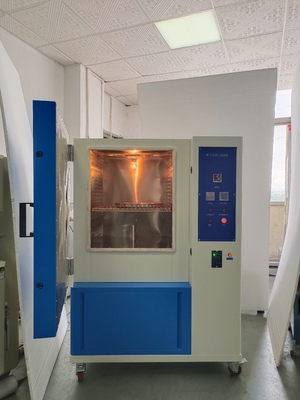

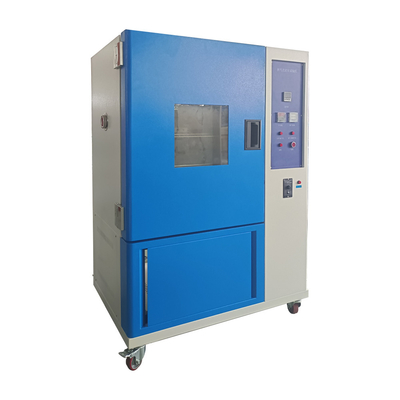

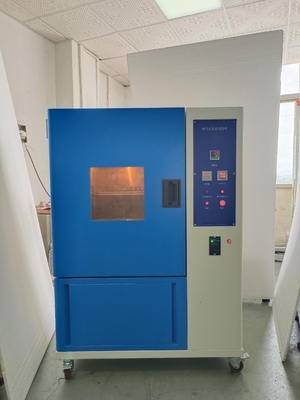

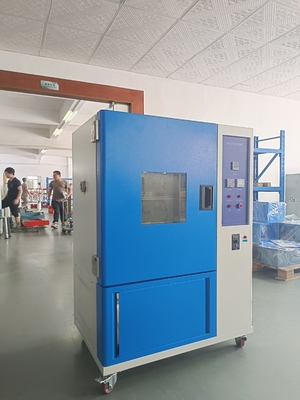

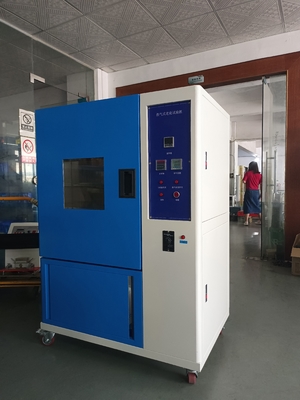

Ventilation Type Aging Testing Machine , ASTMD 5374 Solar Radiation Test Chamber

Equipment Summary:

ASTM D5423 rubber heated air cycle aging tester for testing material properties. Equipped with a special ventilation regulator for maintaining fresh air inside while heating. Equipped with a special ventilation regulator to maintain fresh air inside while heating. This tester is designed with a precision air displacement regulator and Digital voltmeter, ammeter, watt-hour meter and timer can be used to measure air replacement rate. Horizontal circulating air supply system and airflow regulator on both sides ensure the internal temperature uniformity and stability.

This machine is suitable for wire type, leather type, plastic type, rubber type, cloth type, before and after heat change characteristics. It is designed to maintain the fresh air inside the box when the wire is heated, so the air exchange volume is adjusted. This tester is equipped with precision-designed air replacement adjustment device and digital voltmeter, ammeter, watt-hour meter, timer, which can be used as the measurement of air replacement rate. The horizontal forced air circulation system and the airflow adjustment plates on both sides of the interior ensure the temperature inside the tester is uniform and stable.

Main Function:

This oven is used to study the changes of rubber and other test pieces under the heat in a rotary manner for a fixed period of time. In 70 ℃ weather test 1 day, theoretically equivalent to exposure to the atmosphere for 6 months. This oven is equipped with motor-driven test rotation disk, hot air circulation system can ensure uniform temperature distribution. Refer to ASTM, JIS, GB and other test specifications.

Corresponding Standard:

UL1581,ASTM-D2436,CNS3556,CNS742,JIS7212,JISB7757,ASTMD 5374-93,VDE,IEC

Application Industry:

This aging chamber is suitable for the heat resistance test of polymer materials (plastic, plastic) and electrical insulation materials such as: wire and cable sheathing, heat shrinkable sleeves, rubber test pieces or PVC materials and other insulation components

Main Feature:

Rubber Heated Air Circulation Aging Test Machine used to study the rubber that is heated under the rotary mode in a fixed period. Tested 1 day at 70 ℃, theoretically equivalent to 6 months exposed to the outside atmosphere. The oven is equipped with motor-driven rotary disk, hot-air circulation system that ensure uniform distribution of temperature. Reference to ASTM, JIS, GB and other testing specifications.

Main Technical Parameters:

• Power Supply: AC380V
• Power:5.5KW
• Temperature Range: room temperature +25℃~300℃
• Control Accuracy:±0.5℃
• Resolution Accuracy: 0.1℃
• Distribution Error: ±2.5℃
• Temperature Rise Time: from room temperature to 300℃, about 60 minutes.
• Machine Structure and Material:

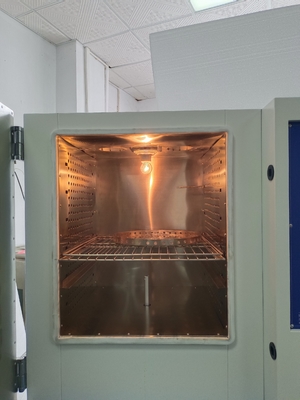

  • Inner Box Size: 50cm (depth) * 55cm (width) * 50cm (height)

8.2. Outer Box Size about: 126cm (L) * 74.5cm (W) * 129cm (H)

8.3. Inner Box Material: SUS # 304 stainless steel, outer box: baking paint.

8.4. Insulation Material: high-density rock wool.

8.5. Heater: a set of screw tube heater: AC220V4.7KW

8.6. Auxiliary Equipment

8.6.1. Fuse insurance switch

8.6.2. Overload protection

8.6.3. Various actions of the indicator

8.6.4. Rotary disk and rotary motor set. (Rotary disc detachable, speed 8~10rpm)

8.6.5. One set of air exchange measuring device. (According to JISK7212 from the consumption of electricity to determine the aging furnace

The air exchange rate of JISK7212 from power consumption to determine the aging furnace, with digital wattage meter and digital TIMER)

8.6.6, air exchange volume size adjustment device. Air exchange volume is 3 times ~ 200 times / hour at RT ~ 250

℃ within adjustable (measured at 80 degrees)

8.6.7. Wide-angle projection lighting equipment.

8.6.8. With a set of timer: used in aging timing and air exchange measurement timing.

8.6.9. Multi-layer vacuum glass window.

8.6.10. Two shelves for putting things in the test room.

8.6.11. Taiwan TAIK original watt hour meter one.

9. Air Supply Circulation System:

9.1. The use of multi-wing centrifugal circulation fan: one fan: 1 & 220V 370W

9.2. Air exchange volume up to 8 ~ 200 times / hr in RT ~ 250 ℃ can be arbitrarily changed to set.

10. Circuit control system:

10.1. The temperature controller adopts microcomputer electronic setting and digital display (made in Taiwan)

10.2. The system uses PROPORTIONAL+INTERGRAL+DIFFERENTIAL+SCR control

(i.e., proportional, integral, differential + SCR), which can improve the life and stability of the control element interface.

10.3. With PID automatic calculation function, no need to set manually.

10.4. Adopt high precision fine wire sensor.

10.5. The relay is Japan OMRON brand.

10.6. The timer is Japan OMRON brand

10.7. the factory are in accordance with the 48-hour whole machine running aging test

10.8. With phase failure protection and over-temperature alarm
