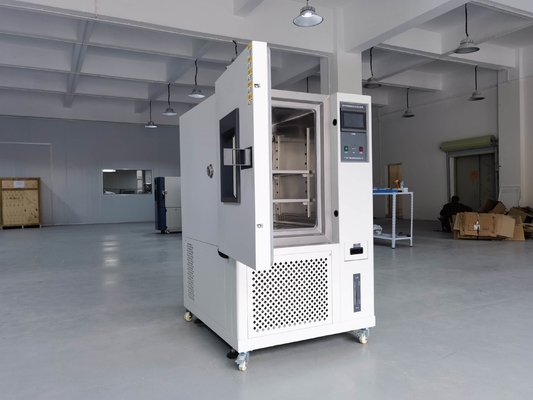

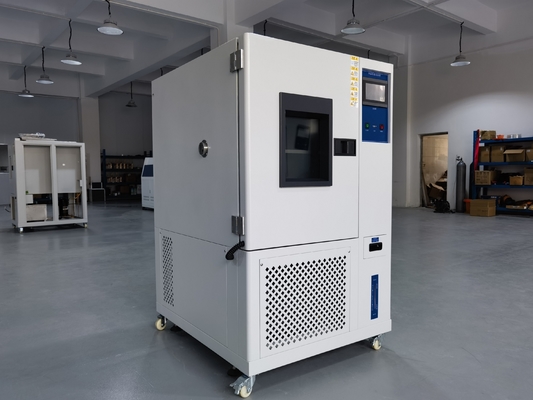

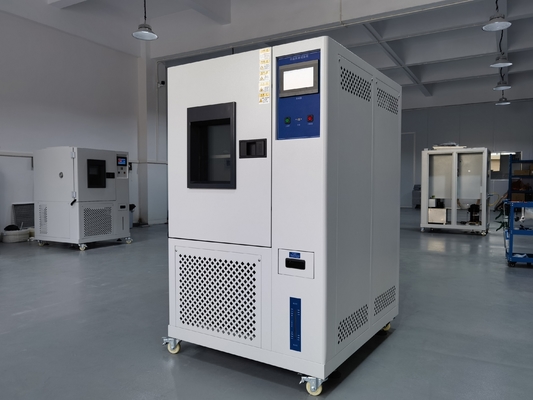

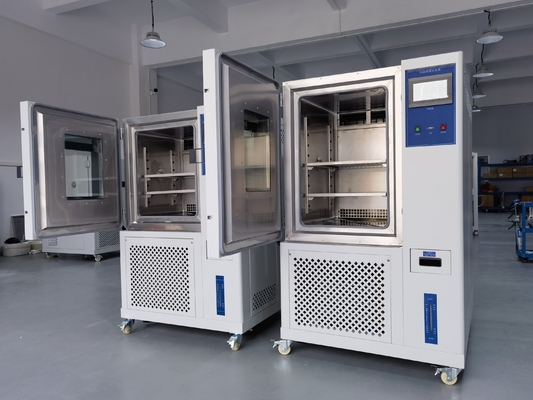

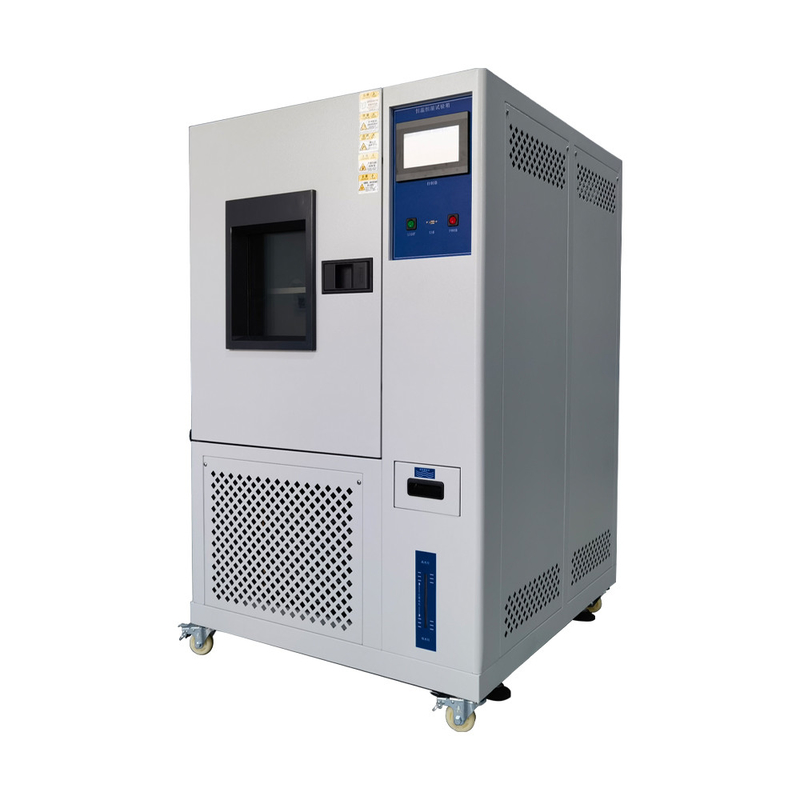

Laboratory Simulated Climate Temperature And Humidity Control Chamber -70C-+150C

Laboratory Simulated Climate Temperature And Humidity Control Chamber -70C-+150C
Laboratory Simulated Climate Temperature And Humidity Control Chamber -70C-+150C
video play

Large Image :  Laboratory Simulated Climate Temperature And Humidity Control Chamber -70C-+150C

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-6004
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: -70C~+150C Laboratory Simulated Climate Temperature And Humidity Control Chamber is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Sets
Detailed Product Description
Product Name: -70C~+150C Laboratory Simulated Climate Temperature And Humidity Control Chamber Inside Material: Stainless Steel SUS 304#
Controller: TEMI300 Digital Controller From South Korea Compressor: France Tecumceh
Power: 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz Temperature Range: -70℃~+100℃(150℃)
Humidity Range: 20%~98%R.H Accuracy/ Uniformly: ±0.1℃;±0.1%R.H./ ±1.0℃;±3.0%R.H.
Warranty: 12 Months
High Light:

SUS304 Temperature And Humidity Control Chamber

,

220VAC Temperature And Humidity Control Chamber

,

150C Environmental Test Chamber

-70C~+150C Laboratory Simulated Climate Temperature And Humidity Control Chamber







Equipment summary:



Constant temperature and humidity test chamber, also known as constant temperature and humidity test machine, constant temperature and humidity test chamber, programmable hot and humid alternating test chamber, constant temperature machine or constant temperature and humidity chamber, used to test the performance of materials in a variety of environments and test a variety of materials heat resistance, cold resistance, dry resistance, moisture resistance performance. Suitable for electronics, electrical appliances, cell phones, communications, instruments, vehicles, plastic products, metal, food, chemical, building materials, medical, aerospace and other products for testing quality



Environmental Test Chamber Catalog:



Environmental Test Chamber.pdf



Temperature Humidity Tester



Control Characteristics:


The control system of the test chamber can be said to be the heart of the whole equipment, in charge of refrigeration, heating, humidity control, circulation, control and other powers.
In terms of refrigeration, the compressor is imported from Germany. Refrigeration system consists of high temperature part and low temperature part, each part is a relatively independent refrigeration system. The evaporation of refrigerant in the high-temperature part absorbs heat from the refrigerant in the low-temperature part and vaporizes; the evaporation of refrigerant in the low-temperature part absorbs heat from the object to be cooled (the air inside the testing machine) to get the cold quantity. The high-temperature part and the low-temperature part are linked by an evaporative condenser, which is both the condenser of the high-temperature part and the condenser of the low-temperature part.



Temperature Humidity Tester



Corresponding standard:



1.International Electrotechnical Commission Standard:

IEC68-2-03_test method Ca_Steady damp-heat

IEC68-2-01_test method A_cold

IEC68-2-02_test method B_dry heat



2. Military Standards:

MIL-STD-810F-507.4 humidity

MIL-STD-810F-501.4 high temperature

MIL-STD-810F-502.4 low temperature

MIL-STD883C test method 1004.2 temperature and humidity cycling test

MIL-STD810D test method 502.2

MIL-STD810 test method 507.2 procedure 3



3. Japanese Industrial Standard:

JIS C60068-2-3-1987 test method Ca: Steady damp-heat

JIS C60068-2-2-1995 test method B:dry heat

JIS C60068-2-1-1995 test method A:low temperature



4. USA Semiconductor Industry Standard:

JESD22-A101-B-2004 Constant temperature and humidity test

JESD22-A103-C-2004 High Temperature Storage Test

JESD22-A119-2004 Low Temperature Storage Test



5. Chinese National Standard:

GB11158 Technical conditions for high-temperature testing box

GB10589-89 Technical conditions for low-temperature testing box

GB10592-89 Technical conditions for high and low temperature testing box

GB/T10586-89 technical conditions for humidity testing chamber

GB/T2423.1-2001 Low-temperature testing methods

GB/T2423.2-2001 High-temperature testing methods

GB/T2423.3-93 Testing Method for humidity Test Chamber

GB/T2423.4-93 Alternating hot and humid testing method

GB/T2423.22-2001temperature testing method



6. China's National Military Environment Test Equipment

GJB150.3 high-temperature testing

GJB150.4 low-temperature testing

GJB150.9 hot and humid condition testing



Detailed parameters:



Model

ZL-80

(A~G)

ZL-150

(A~G)

ZL-225

(A~G)

ZL-408

(A~G)

ZL-608

(A~G)

ZL -800

(A~G)

ZL-1000

(A~G)

Inside size WxHxD (cm) 40x50x40 50x60x50 50x75x60 60x85x80 80x95x80 100x100x80 100x100x100
Outside size WxHxD (cm) 100x170x87 105x175x97 115x190x97 135x195x115 145x185x137 145x210x130 147x210x140
Temperature range -70℃~+100℃(150℃)
(A:+25℃ B:0℃ C:-20℃ D:-40℃ E:-50℃ F:-60℃ G:-70℃)
Humidity range 20%~98%R.H.(10%-98%R.H/5%~98%R.H is the specific condition)
Accuracy/ uniformly ±0.1℃;±0.1%R.H./ ±1.0℃;±3.0%R.H.
Accuracy / volatility ±1.0℃;±2.0%R.H./ ±0.5℃;±2.0%R.H.
Heating / cooling time About 4.0℃/min;about 1.0℃/min(5~10℃/mm is the specific condition)
Inside material Stainless steel SUS 304#
Insulation material High-temperature high-density amino acid ethyl ester foam insulation materials,
Cooling system Air-cooled/ single-stage compressor(-20℃) ,wind, water cooled/two-stage compressor(-40℃~-70℃)
Protection compressor overload switch, high and low pressure protection switch, over-humidity-temperature protection switches, fuses, warning system
Accessories recorder(purchase),view window,50mm testing hole,PL lamp,clapboard,Dry and wet gauze ball
Controller TEMI300 digital controller from South Korea
Compressor France Tecumceh
Power 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz





ZL-6004 Following list of the programmable constant temperature and humidity testing machine:



Structure material Model From description
Box Shell Stainless steel SUS304B import Antirust
Liner Stain steel SUS304B import Antirust
insulation Rigid polyurethane foam, ultra-fine glass fiber Hongkong insulation
Door Stainless steelSUS304B import Good sealing performance
View window 38026 insulating glass   Observed the testing sample
Frame Stainless steel ring export Diameter 8mm
Testing hole Diameter 60MM   Wire through directly
Heating system Heating pipe Stainless steel heat sink Hongkong Storage’s temperature rise up
Air circulation system Fan YYF100-25-4S Japan Storage back to ring

Cooling









system

Compressor CAJ2464 France cooling
Condenser Tecumceh France Storage back to ring
Coolant R23/404/environmentally United States cooling
Electromagnetic valve 1028/3 Castor Italy Refrigerant opening and closing
Expansion valve TY2 Danfoss United States Refrigerator throttling
Filters 0835 Danfoss United States Filter oxide cooling pipe
Humidity system Humidity tube Stainless steel 304 import The effective protection of laboratory humidity
Humidity box Made by oneself   Provide temperature



Temperature Humidity Tester
