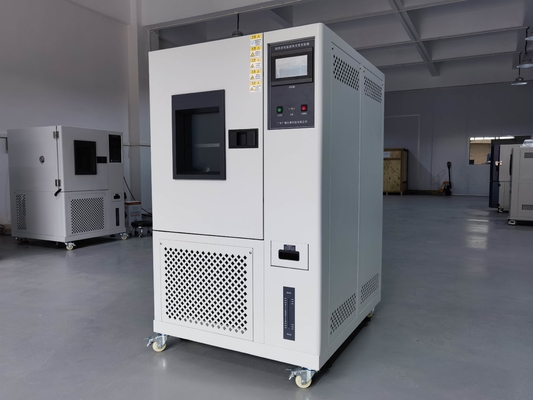

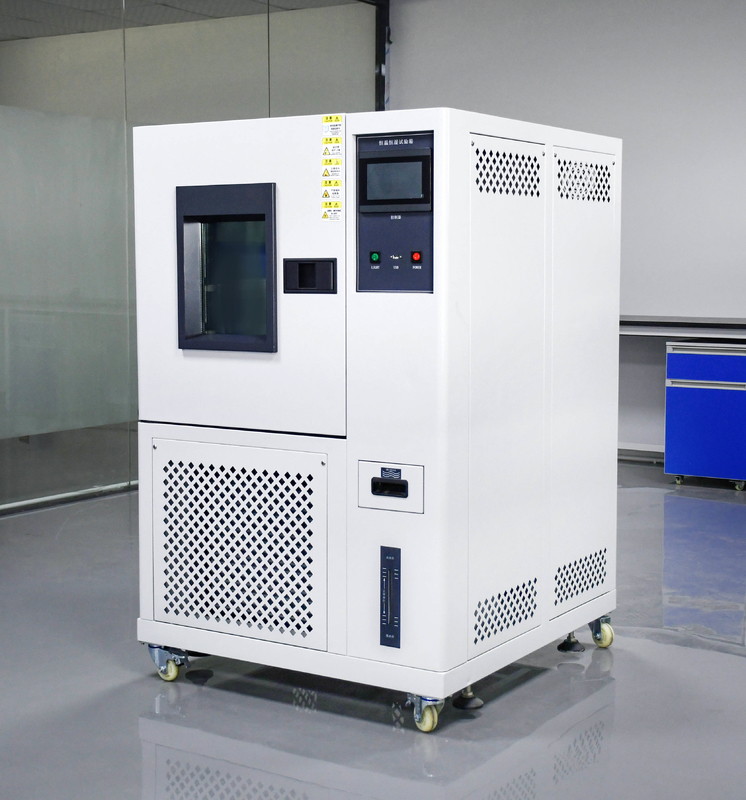

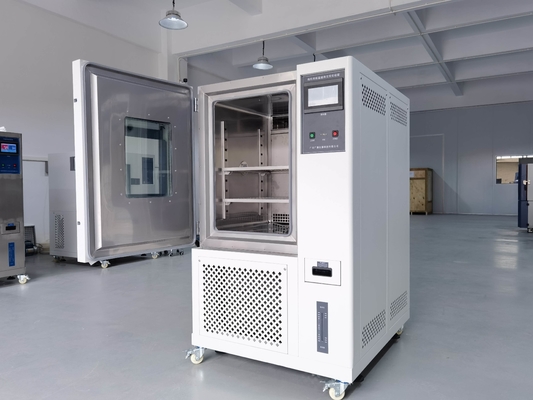

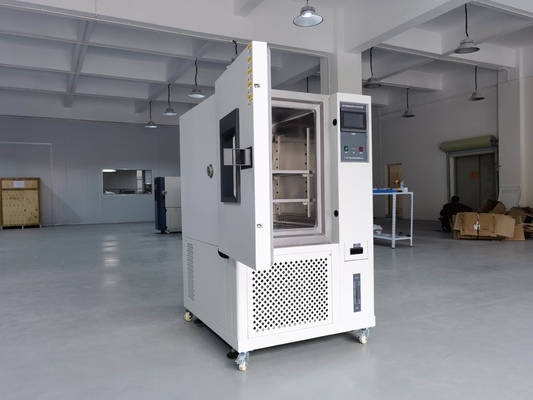

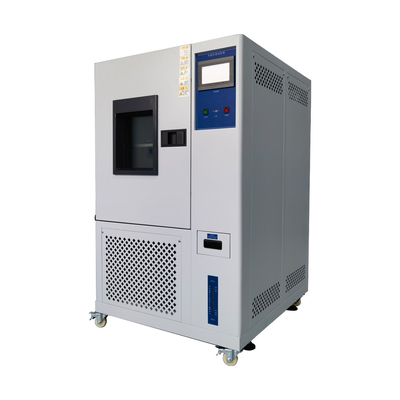

Temperature Humidity Environmental Drug Storage Stability Test Chamber
This pharmaceutical environmental test chamber is designed for stability testing of drug storage under controlled temperature and humidity conditions. The equipment tests materials for heat resistance, cold resistance, dry resistance, and moisture resistance with simple operation and easy programming capabilities.
Equipment Overview
The constant temperature and humidity test chamber, also known as high and low temperature alternating humidity and heat testing machine, is essential testing equipment for electrical appliances, aviation, automotive, home appliances, coatings, scientific research, and other fields. It tests and determines parameters and performance of electrical, electronic, and other products and materials under various environmental conditions including dry, drought, cold, and humidity test temperature environment changes.
Construction Materials
Machine is constructed with stainless steel interior and powder-coated exterior for durability and corrosion resistance.
Technical Documentation
Working Principle
The constant temperature and humidity test chamber consists of temperature regulation (heating and cooling) and humidification systems. A rotary fan installed in the top of the chamber circulates air to balance temperature and humidity. Built-in sensors collect data transmitted to the temperature and humidity controller for processing, which issues adjustment commands to air heating units, condensing tubes, and water tank heating evaporation units.
Temperature regulation occurs through built-in temperature sensors collecting data processed by the temperature controller, connected to air heating units for temperature increase or cooling solenoid valves for temperature reduction. Humidity adjustment uses body humidity sensors collecting data processed by the humidity controller, connected to water tank heating elements for humidity increase or refrigeration solenoid valves for moisture control.
Multiple protection measures include temperature system safety limits with over-temperature protector, air heating elements that stop with rotating fan and automatic power off, humidification system that stops with low water level, and refrigeration system that stops working when chamber temperature exceeds 40℃ or humidity increases.
Applicable Industries
Environmental Constant Temperature Humidity Climatic Test Chamber is applied for quality control in electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, and medical care industries.
Compliance Standards
- International Electrotechnical Commission: IEC68-2-03, IEC68-2-01, IEC68-2-02
- Military Standards: MIL-STD-810F, MIL-STD-810D, MIL-STD883C
- Japanese Industrial Standard: JIS C60068-2-3, JIS C60068-2-2, JIS C60068-2-1
- USA Semiconductor Industry: JESD22-A101-B, JESD22-A103-C, JESD22-A119
- Chinese National Standard: GB11158, GB10589-89, GB10592-89, GB/T10586-89, GB/T2423 series
- China National Military: GJB150.3, GJB150.4, GJB150.9
Technical Specifications
| Model |
ZL-80 (A~G) |
ZL-150 (A~G) |
ZL-225 (A~G) |
ZL-408 (A~G) |
ZL-608 (A~G) |
ZL-800 (A~G) |
ZL-1000 (A~G) |
| Inside Size WxHxD (cm) |
40x50x40 |
50x60x50 |
50x75x60 |
60x85x80 |
80x95x80 |
100x100x80 |
100x100x100 |
| Outside Size WxHxD (cm) |
100x170x87 |
105x175x97 |
115x190x97 |
135x195x115 |
145x185x137 |
145x210x130 |
147x210x140 |
| Temperature Range |
-70℃~+100℃(150℃)
(A:+25℃ B:0℃ C:-20℃ D:-40℃ E:-50℃ F:-60℃ G:-70℃) |
| Humidity Range |
20%~98%R.H.(10%-98%R.H/5%~98%R.H specific conditions) |
| Accuracy/Uniformity |
±0.1℃; ±0.1%R.H./ ±1.0℃; ±3.0%R.H. |
| Accuracy/Volatility |
±1.0℃; ±2.0%R.H./ ±0.5℃; ±2.0%R.H. |
| Heating/Cooling Time |
Approx. 4.0℃/min; approx. 1.0℃/min (5~10℃/mm specific conditions) |
Additional Specifications
- Inside Material: Stainless steel SUS 304#
- Insulation Material: High-temperature high-density amino acid ethyl ester foam insulation materials
- Cooling System: Air-cooled/single-stage compressor (-20℃), wind/water cooled/two-stage compressor (-40℃~-70℃)
- Protection Systems: Compressor overload switch, high/low pressure protection, over-humidity-temperature protection, fuses, warning system
- Accessories: Recorder (optional), view window, 50mm testing hole, PL lamp, clapboard, dry and wet gauze ball
- Controller: TEMI300 digital controller from South Korea
- Compressor: France Tecumceh
- Power: 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz
ZL-6004 Programmable Constant Temperature and Humidity Testing Machine Components
| Structure |
Material |
Model |
Origin |
Description |
| Box Shell |
Stainless steel SUS304B |
Import |
Import |
Antirust |
| Liner |
Stain steel SUS304B |
Import |
Import |
Antirust |
| Insulation |
Rigid polyurethane foam, ultra-fine glass fiber |
Hongkong |
Hongkong |
Insulation |
| Door |
Stainless steel SUS304B |
Import |
Import |
Good sealing performance |
| View Window |
38026 insulating glass |
|
|
Observed the testing sample |
| Frame |
Stainless steel ring |
Export |
Export |
Diameter 8mm |
| Testing Hole |
Diameter 60MM |
|
|
Wire through directly |
| Heating System |
Stainless steel heat sink |
Hongkong |
Hongkong |
Storage's temperature rise up |
| Air Circulation System |
Fan YYF100-25-4S |
Japan |
Japan |
Storage back to ring |
| Cooling System Compressor |
CAJ2464 |
France |
France |
Cooling |
| Condenser |
Tecumceh |
France |
France |
Storage back to ring |
| Coolant |
R23/404/environmentally |
United States |
United States |
Cooling |
| Electromagnetic Valve |
1028/3 Castor |
Italy |
Italy |
Refrigerant opening and closing |
| Expansion Valve |
TY2 Danfoss |
United States |
United States |
Refrigerator throttling |
| Filters |
0835 Danfoss |
United States |
United States |
Filter oxide cooling pipe |
| Humidity System |
Stainless steel |
304 Import |
304 Import |
The effective protection of laboratory humidity |
| Humidity Box |
Made by oneself |
|
|
Provide temperature |
