ISO ASTM Salt Spray Test Chamber , Universal Corrosion Resistance Testing Machine

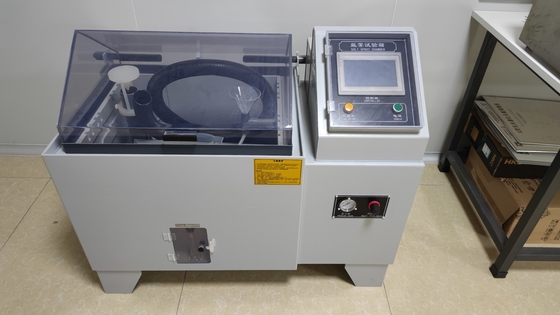

Large Image : ISO ASTM Salt Spray Test Chamber , Universal Corrosion Resistance Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-6001

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	ISO ASTM Salty Spray Test Chamber Universal Corrosion Resistance Testing Machine is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	ISO ASTM Salty Spray Test Chamber Universal Corrosion Resistance Testing Machine	Inside Box Size:	60x45x40cm
Outside Box Size:	107x60x118cm	Brine Temperature:	35℃±1℃ 50℃±1℃
Testing Room Capacity:	108L	Brine Tank Capacity:	15L
Air Pressure:	1.00±0.01kgf/cm2	Key Words:	Salt Spray
Testing Room Temperature:	Salt Test (NSS ACSS)35℃±1℃/ Corrosion Test (CASS)50℃±1℃	Pressure Barrel Temperature:	Salt Test (NSS ACSS)47℃±1℃/ Corrosion Test (CASS)63℃±1℃
Highlight:	ISO Saly Spray Test Chamber , ASTM Salt Spray Test Chamber , 1.00kgf/cm2 Environmental Test Chamber

ISO ASTM Salt Spray Test Chamber - Universal Corrosion Resistance Testing Machine

The ISO ASTM Salt Spray Test Chamber is a universal corrosion resistance testing machine designed to evaluate material corrosion resistance and protective coating quality through standardized salt spray testing methods.

Product Introduction

This salt spray test chamber assesses material and protective layer salt spray corrosion resistance, compares similar protective layer process quality, and evaluates product salt spray corrosion resistance. Suitable for testing parts, electronic components, metal material protection layers, and industrial products.

Testing Functions

Salt spray, drying, wetting, soaking, constant temperature and humidity testing
Surface treatment evaluation for coatings, electroplating, organic/inorganic films, anodic treatment, and anti-rust oils

Product Overview

The salt spray testing machine evaluates corrosive resistance of products with surface treatments including paint, electroplating, inorganic and organic films, anode handling, and anti-rust oil.

Technical Documentation

ZL-6001B Economic Salt Spray Testing Machine (Button)
Environmental Test Chamber Catalog

Compliance Standards

GB/T 10125-1997 salt spray test
GB/T 2423.17-1993 salt spray test
GB/T 2423.18-2000 salt spray test
GB.10587-89 salt spray test
IEC68-2-11 salt spray test
IEC68-2-52 1996 salt spray test
ASTM.B117-97 salt spray test
JIS H8502 salt spray test
CNS.4158 salt spray test
CNS.4159 CASS Accelerated acetic acid copper salt spray test
GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test

Technical Parameters

Model	ZL-6001B (108L)	ZL-6001B (270L)	ZL-6001B (600L)
Inside Box Size (cm)	604540	906050	16010050
Outside Box Size (cm)	10760118	14188128	210130140
Testing Room Temperature	Salt test (NSS ACSS) 35℃±1℃ / Corrosion Test (CASS) 50℃±1℃
Pressure Barrel Temperature	Salt test (NSS ACSS) 47℃±1℃ / Corrosion Test (CASS) 63℃±1℃
Brine Temperature	35℃±1℃ / 50℃±1℃
Testing Room Capacity	108L	270L	600L
Brine Tank Capacity	15L	25L	50L
Salt Concentration	5% sodium chloride or 5% sodium chloride with 0.26g per liter copper chloride (CuCl₂·2H₂O)
Air Pressure	1.00±0.01kgf/cm²
Spray Volume	1.0~2.0ml/80cm²/h (16-hour minimum operation average)
Testing Room Relative Humidity	85% above
PH	6.5~7.2 / 3.0~3.2
Spray Form	Programmable spray (continuous and intermittent)
Power	AC220V 1Φ 10A	AC220V 1Φ 15A	AC220V 1Φ 20A
