56L 86 Degree Deep Freezer Lab Ultralow Temperature Freezer Horizontal Medical Refrigerator

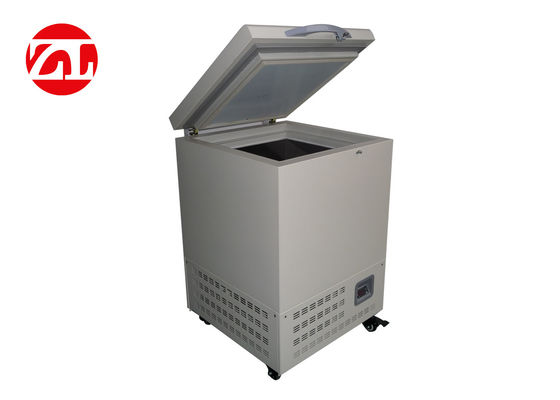

Large Image : 56L 86 Degree Deep Freezer Lab Ultralow Temperature Freezer Horizontal Medical Refrigerator

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-6005A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	216L Horizontal Deep Freezer Low Temperature Freezer Deep Freezer Refrigerator is packaged within wooden case.
Delivery Time:	4-7 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	40 sets / month

Contact Now

Detailed Product Description

Product Name:	56L 86 Degree Deep Freezer Lab Ultra-Low Temperature Freezer Horizontal Medical Refrigerator	Temperature Control:	Microcomputer Digital Control, Temperature Digital Display
Safety System:	With A Sound Alarm System, A Buzzer Sound And Light Flashing Alarm Function	Refrigeration System:	Thick Foam Layer, The Door Double Seal Design
Design:	Food Grade Stainless Steel Liner, Never Rust, Safe And Secure;	Suitable Environment:	10 ℃ ~ 30 ℃
Highlight:	56L Ultralow Temperature Freezer , Horizontal Ultralow Temperature Freezer

56L 86 Degree Deep Freezer Lab Ultralow Temperature Freezer Horizontal Medical Refrigerator

This -86°C ultra-low temperature freezer is designed for scientific research institutions, special materials storage, ultra-low temperature experiments, electronics industry, chemical industry, military applications, university laboratories, biological engineering, and ocean fisheries.

Applications

Ideal for preserving viruses, bacteria, red blood cells, white blood cells, skin, bones, semen, biological products, marine products, and electronic devices requiring low-temperature testing.

Key Features

Temperature Control

Microcomputer digital control with temperature digital display
Adjustment unit: 0.1°C
Temperature range: -40°C to -86°C
Configurable startup temperature differential
High and low temperature alarm with customizable settings

Safety System

Comprehensive alarm system with buzzer and flashing light indicators
High/low temperature alarm and sensor failure alarm capabilities
Multiple protection functions including password protection, frequent start protection, and cooling system continuity during sensor failure

Refrigeration System

Thick foam insulation with double seal door design for optimal temperature maintenance
Optimized self-cascading refrigeration system with imported compressors
Efficient evaporator design ensuring uniform temperature distribution
Environmentally friendly mixed refrigerant (100% chlorine-free)
Single compressor system for reduced failure rate and energy consumption
German EBM quiet fan for stable, low-noise operation

Design Features

Food-grade stainless steel interior (rust-proof and secure)
Heavy-duty casters for easy mobility
Safety door lock to prevent unauthorized access
Pressure balance design with test hole functionality
LED temperature display for clear monitoring
Operating environment: 10°C to 30°C
Optional digital temperature recorder with USB interface for data analysis
Wide voltage compatibility: 187V to 242V

Technical Specifications

Model	External Dimensions (mm)	Internal Dimensions (mm)	Power Supply	Power (W)	Temperature (°C)	Climate Type	Volume (L)	Net Weight (Kg)
ZL-86-W56	600×675×920	400×395×360	220/50	300	-15~-86	N	56	70
ZL-86-W116	900×745×920	700×465×360	220/50	450	-15~-86	N	116	86
ZL-86-W120	1270×775×965	540×395×560	220/50	450	-15~-86	N	120	108
ZL-86-W216	1150×745×860	960×465×570	220/50	550	-15~-86	N	216	120
ZL-86-W256	1510×880×1095	780×495×660	220/50	700	-15~-86	N	256	220
ZL-86-W316	1530×745×860	1330×465×570	220/50	700	-15~-86	N	316	250

After-Sales Service

14-month warranty with lifetime maintenance support
Free replacement of broken components during warranty period
Comprehensive support including pictures and video instructions
Complete documentation including packing list, operation instructions, and warranty certificate

Packaging

Machines are packaged with waterproof plastic wrap, poly wood board, and internal cystosepiment for secure fixture during transportation.
