216L Horizontal Deep Freezer Low Temperature Freezer Deep Freezer Refrigerator

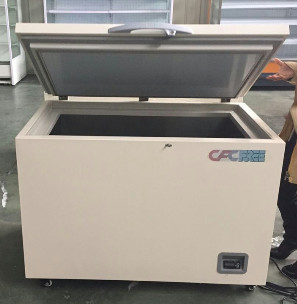

Large Image : 216L Horizontal Deep Freezer Low Temperature Freezer Deep Freezer Refrigerator

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-6005A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	216L Horizontal Deep Freezer Low Temperature Freezer Deep Freezer Refrigerator is packaged within wooden case.
Delivery Time:	4-7 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	40 sets / month

Contact Now

Detailed Product Description

Product Name:	216L Horizontal Deep Freezer Low Temperature Freezer Deep Freezer Refrigerator	Temperature Control:	Microcomputer Digital Control, Temperature Digital Display
Safety System:	With A Sound Alarm System, A Buzzer Sound And Light Flashing Alarm Function	Refrigeration System:	Thick Foam Layer, The Door Double Seal Design
Design:	Food Grade Stainless Steel Liner, Never Rust, Safe And Secure;	Suitable Environment:	10 ℃ ~ 30 ℃
Highlight:	216L Horizontal Deep Freezer , Microcomputer Digital Control Horizontal Deep Freezer

216L Horizontal Deep Freezer Low Temperature Freezer

Designed for scientific research institutions, special materials, ultra-low temperature experiments, electronics industry, chemical industry, military applications, university laboratories, biological engineering, and ocean fisheries.

Yongjia -86℃ low temperature storage box is ideal for preserving viruses, bacteria, red blood cells, white blood cells, skin, bones, bacteria, semen, biological products, marine products, and electronic devices for low temperature testing.

Key Features

Temperature Control

Microcomputer digital control with temperature digital display
Adjustment unit: 0.1℃
Temperature range: -40℃ to -86℃
Configurable startup temperature differential
High and low temperature alarm with customizable settings

Safety System

Comprehensive alarm system with buzzer and flashing light alerts
High/low temperature and sensor failure alarms
Multiple protection functions including password protection, frequent start protection, and cooling system continuity during sensor failure

Refrigeration System

Thick foam insulation with double seal door design
Optimized self-cascading refrigeration system with imported compressors
Efficient evaporator design for optimal temperature uniformity
Environmentally friendly fluorine-free mixed refrigerant
Single compressor system for low failure rate and energy consumption
German EBM quiet fan for stable, low-noise operation

Design Features

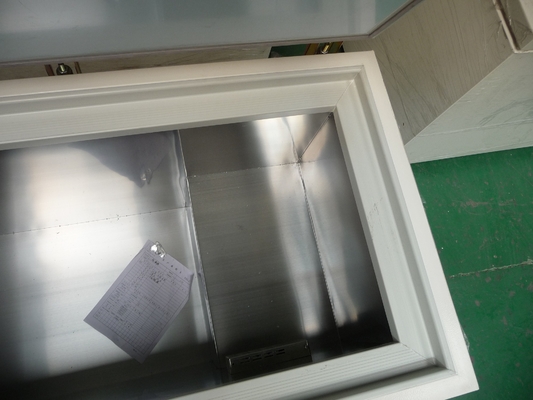

Food grade stainless steel liner - rust-proof and secure
Heavy duty casters for easy mobility
Safety door lock to prevent unauthorized access
Box pressure balance design with test hole functionality
LED temperature display for clear monitoring
Suitable for 10℃ to 30℃ environments
Optional digital temperature recorder with USB interface
Wide voltage compatibility: 187V to 242V

Technical Specifications

Model	Outer Dimensions (mm)	Inner Dimensions (mm)	Power Supply	Power (W)	Temperature (℃)	Climate Type	Volume (L)	Net Weight (Kg)
ZL-86-W56	600×675×920	400×395×360	220/50	300	-15~-86	N	56	70
ZL-86-W116	900×745×920	700×465×360	220/50	450	-15~-86	N	116	86
ZL-86-W120	1270×775×965	540×395×560	220/50	450	-15~-86	N	120	108
ZL-86-W216	1150×745×860	960×465×570	220/50	550	-15~-86	N	216	120
ZL-86-W256	1510×880×1095	780×495×660	220/50	700	-15~-86	N	256	220
ZL-86-W316	1530×745×860	1330×465×570	220/50	700	-15~-86	N	316	250

Advantage Services

R&D and design department for custom solutions
Over 50 years of manufacturing experience with advanced machinery
Two laboratories: Environmental and Physical testing facilities
Adequate monthly stock for urgent customer needs
Annual sales exceeding $1,000,000 USD
30,000㎡ manufacturing base with 120 technical staff

Technical Support

SUS stainless steel plates cut with advanced laser machines for precision
Anti-rust electrostatic painting on all machine exteriors
Premium imported electronic components: ABB, Siemens, , Saginomiya, Danfoss, Emkarate, Omron, Philips
Imported compressors: BOEK, TECUMSEH
Designed for service life exceeding 10 years
