IEC6052 Customizable Sand And Dust Testing Machine For Car Parts

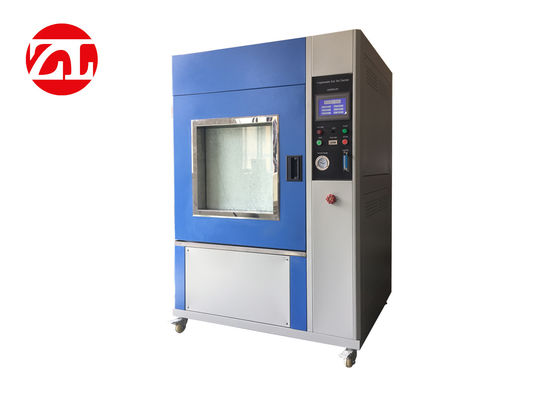

Large Image : IEC6052 Customizable Sand And Dust Testing Machine For Car Parts

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	Zhongli
Certification:	ISO,CE
Model Number:	ZL-6022

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	IEC6052 Customizable Sand And Dust Testing Machine For Car Parts is packaged in wooden case.
Delivery Time:	10~15 days after order confirmed
Payment Terms:	T/T, L/C, D/A, D/P, Western Union,
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

Product Name:	IEC6052 Customizable Sand And Dust Testing Machine For Car Parts	Test Chamber Dimension::	800800800 Mm
Outer Dimension::	113012501650mm	Metal Screen Wire Diameter::	50 Micron
Screen Line Space::	75 Micron	Environment Temperature And Humidity::	15~45°C, 45~75%RH
Dust(talcum Powder) Concentration::	2~4kg/m3	Test Standards::	GB4706,GB2423,GB7000.1,IEC60529
Warranty::	12 Months	Key Words:	Dust Test Machine
Highlight:	Customizable Sand And Dust Testing Machine , IEC6052 Sand And Dust Testing Machine

IEC6052 Customizable Sand And Dust Testing Machine For Car Parts

Professional Environment Sand Dust Test Equipment is designed according to GB4706, GB2423, GB7000.1, IEC60529 standards and meets the IPX5 and IPX6 dust test requirements. This dust filter anti-dust removing machine is primarily used for testing control cabinets, household appliances, low voltage electric appliances, automobiles, lamps, motorcycle parts, and other outer shells.

Test chamber pressure can be constant and changed, suitable for indoor low concentration dust pollution testing, assessing sample sealing and corrosion degree in this environment.

Technical Specifications

Model	Professional Environment Sand Dust Test Equipment
Test Chamber Dimension	800×800×800mm
Outer Dimension	1130×1250×1650mm
Metal Screen Wire Diameter	50μm
Screen Line Space	75μm
Environment Temperature & Humidity	15~45°C, 45~75%RH
Dust (Talcum Powder) Concentration	2~4kg/m³
Test Time	Dust test time set freely, 0~999.9hr
Test Dust	Dry talcum powder or Portland cement
Test Standards	GB4706, GB2423, GB7000.1, IEC60529
Power	3ψ 4W+G 380VAC 50HZ
