16inch Industry Two Roll Rubber Open Mixing Mill Rubber Mixer Dispersion Kneader

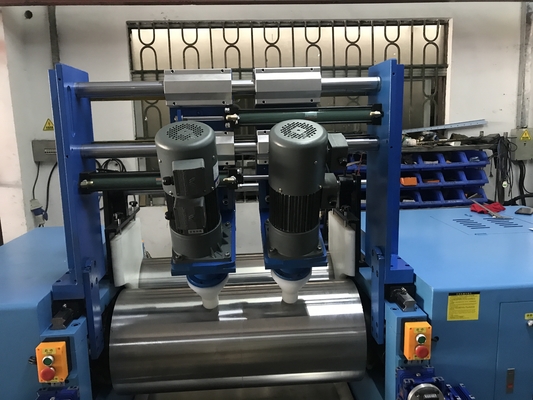

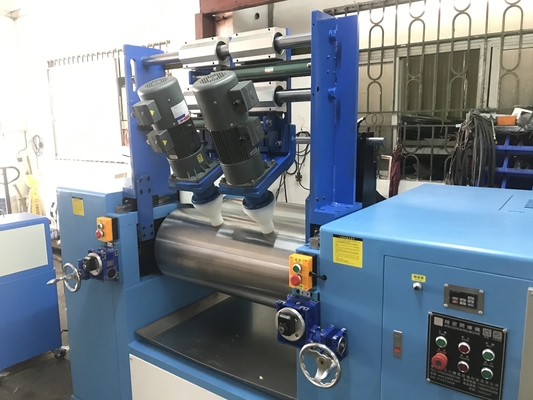

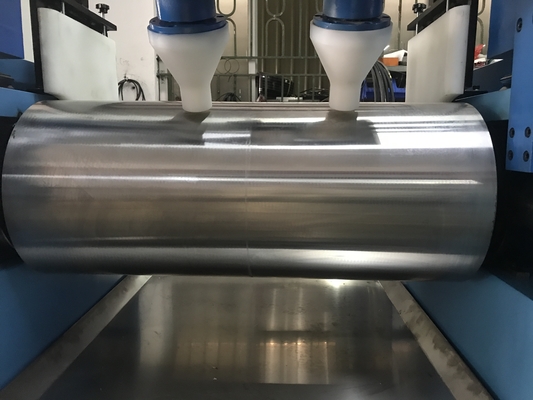

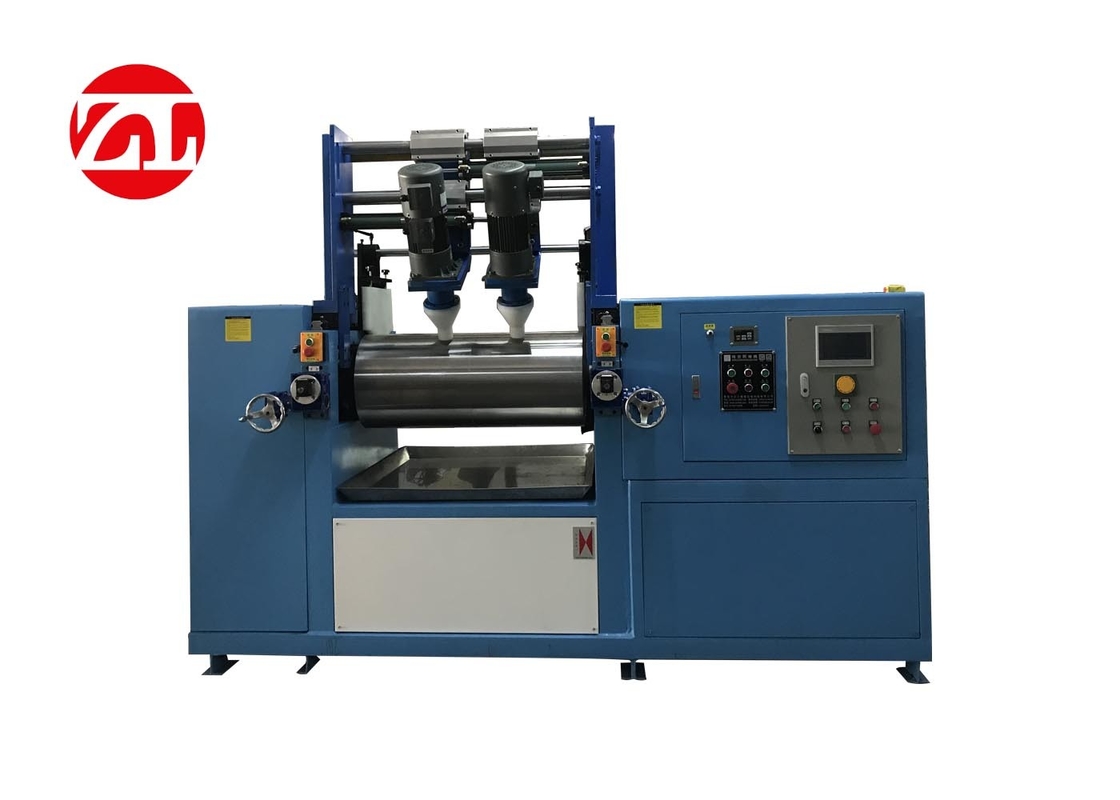

Large Image : 16inch Industry Two Roll Rubber Open Mixing Mill Rubber Mixer Dispersion Kneader

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3018

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	16inch Industry Two Roll Rubber Open Mixing Mill Rubber Mixer Dispersion Kneader is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 sets / month

Contact Now

Detailed Product Description

Product Name:	16inch Industry Two Roll Rubber Open Mixing Mill Rubber Mixer Dispersion Kneader	Heating Mode:	Electricity Heating , Oil Heating ( Option)
Power:	Power	Cooling Mode:	Water Cooling ( Option)
Roll Temperature:	Room Temperature -- 300℃	Roll Hardness:	HRC 50 ~ 60
Highlight:	Two Roll Rubber Open Mixing Mill , 16inch Rubber Open Mixing Mill , Rubber Dispersion Kneader

16-Inch Industrial Two Roll Rubber Open Mixing Mill

This professional rubber mixer and dispersion kneader delivers unmatched performance for masticating and kneading natural rubber, synthetic rubber, EVA, or PVC pellets with various chemical materials. Primarily used for plasticizing, hot milling, and mixing of natural and synthetic rubber in rubber product manufacturing facilities.

Key Features & Benefits

Automatic feeding oil or grease lubrication for easy maintenance and machine protection
Brake and emergency stop devices ensure personnel and equipment safety
Frame, frame cap, and base are welded and treated by annealing for stress relieving
Multiple roll gap adjustment methods: manual or electric operation
Rolls constructed from chilled cast alloy iron with hardness reaching 70HB
Versatile roll construction options: drilled roll, bored roll, grooved roll
Customizable speed ratio designed according to customer formulas and processing requirements

Intelligent Control System

Advanced PLC control system with intelligent control panel featuring:

Real-time data recording and export of kneading time, temperature (mixing chamber and front/rear rotors), ram pressure, current, torque, and recipe code
Control system configurable for up to 20 mixing steps with 20 recipe storage spaces
Remote process recipe import and data monitoring capability
Ethernet communication interface for MES integration
20% control points reserved for future expansion with touch screen interface

Technical Specifications

Model	ZL-3018-76	ZL-3018-120	ZL-3018-160	ZL-3018-200	ZL-3018-230	ZL-3018-300	ZL-3018-400
Diameter of roll (mm)	76	120	160	200	230	300	400
Length of roller face (mm)	300	350	350	500	650	650	900
Mixing Capacity (kg)	0.002-0.6	0.002-2	0.002-2.8	0.002-5	0.005-10	1-15	5-30
Front roll surface speed (rpm)	19	19	19	19	19	19	19
Friction ratio	1:1.30	1:1.35	1:1.35	1:1.35	1:1.27	1:1.27	1:1.27
Roll gap range (mm)	0-3	0-6	0-6	0-8	0-12	0-12	0-15
Driving Power (KW)	1	1.5	2.2	7.5	11	30	37
Machine weight (kg)	160	460	660	860	1960	2960	3800
Overall dimension (mm)	1100x400x1180	1100x550x1380	1200x650x1380	2200x750x1380	2200x950x1580	2600x950x1580	5295x1789x170

Heating Mode: Electricity heating, Oil Heating (optional)
Cooling Mode: Water Cooling (optional)
Roll Temperature: Room temperature - 300℃
Roll Hardness: HRC 50 ~ 60
Temperature Accuracy: ±2℃ (high accuracy PID micro computer controller)
Safety device: 6 safety buttons with optional safety guard
Power: 380V 3 phase 50-60hz

Frequently Asked Questions

What is the two roll mill process?

The two roll rubber mill processes natural rubber into various compounds. Two horizontally opposed stainless steel rolls rotate in opposite directions at different speeds to mix rubber and ingredients, creating rubber compounds through mechanical shearing action.

What is the principle of roller mill operation?

Roller mills utilize stress applied by rotating wheels and attrition to process solids in suspensions, pastes, ointments, and solid materials. The rollers rotate at different speeds, shearing material as it passes through the gap between them.

What is the friction ratio of a two roll mill?

The distance between mill rolls (nip) can be varied, while the speed difference between rolls is called friction ratio, enabling shearing action. Typically, the back roll moves faster than the front roll, with common friction ratios around 1:1.25. This open mill mixing process is essential for rubber compound preparation.
