2T 5T Carton Compression Tester Box Compression Packing Testing Equipment

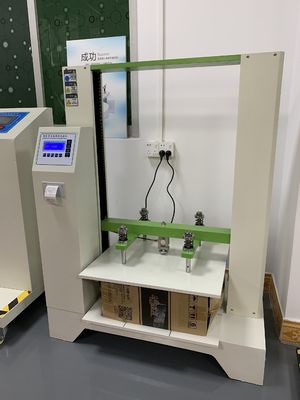

Large Image : 2T 5T Carton Compression Tester Box Compression Packing Testing Equipment

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-9001B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	2T 5T Carton Compression Tester Box Compression Packing Testing Machine is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	2T 5T Carton Compression Tester Box Compression Packing Testing Equipment	Load Resolution:	1/100,000
Stroke (exclude The Grips):	400 Mm	Load Accuracy:	≤0.5%
Operation Mode:	PC	Power:	1ø, 220v/ 50Hz
Highlight:	2T Carton Compression Tester , 5T Carton Compression Tester , TAPPI-T804 Compression Testing Machine

2T 5T Carton Compression Tester Box Compression Packing Testing Equipment

Product Overview

Computer Servo Box Compressive Tester is used for measuring the pressure strength of cartons, containers, and other packaging materials. It inspects pressure-resistance and strike-endurance capabilities during transportation or handling.

ZL-9001B Electronic carton resist compression testing machine documentation

Design Standards

TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO 12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3, GB/T4857.4

Technical Specifications

Model	ZL-9001B
Unit (switchable)	Kg, Lb, N
Capacity (optional)	2T, 5T
Load Resolution	1/100,000
Stroke (exclude the grips)	400 mm
Load Accuracy	≤0.5%
Test Space (L×W×H)	1500×1500×1500mm
Speed of Compression	10 ± 3 mm/min
Operation Mode	PC
Report Items	Serial number, Peak value, Average value, Designated holding pressure value; all memorable
Structure	AC Frequency Conversion Motor (Taiwan); Imported screw rod; 4 sensors; LED display
Dimension (L×W×H)	2370×1500×2100mm (can be custom made)
Power	1ø, 220v/50Hz
Weight	Approx. 850kg
Safety Devices	Overload protection, overvoltage protection & limited position protection device
Standard	TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642

Key Features

Single-screen operation; no need to switch screens
Three language interfaces: Simplified Chinese, Traditional Chinese, and English
Windows platform with dialog-based parameter settings for easy operation
Customizable test report formats with data displayed directly on main screen
Comparative mode for multiple curve data comparison
Multiple measurement units switchable between Imperial & Metric systems
Self-return & auto-correction functions
Automatic magnification function for optimal graphic sizing
User-defined test methods with experimental data analysis
Capable of compression, bending, pressure holding & fatigue testing
High precision and accuracy with automatic stop function

Frequently Asked Questions

How to choose the most suitable Mechanical Equipment?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.

What's the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15~20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.

Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.

Can we visit your factory before order?

Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Do you have customers of our country before?

Now our testing machines have been sold to more than 95 countries, like USA, Canada, Russia, UK, Italy, Germany, European, India, Pakistan, Philippine, Singapore, Malaysia, Thailand, Vietnam, Korea, Saudi Arabia, Brazil... and so on.
