Single Cylinder Transformer Coils Cable Testing Machine Vacuum Pressure Impregnating

Name: Single Cylinder Transformer Coils Cable Testing Machine Vacuum Pressure Impregnating
Brand: ZL
SKU: ZL-1034
Rating: 4.9 (168 reviews)

Large Image : Single Cylinder Transformer Coils Cable Testing Machine Vacuum Pressure Impregnating

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-1034

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged within wooden case
Delivery Time:	7-10 days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Detailed Product Description

Product Name:	Single Cylinder Transformer Coils Cable Testing Machine Vacuum Pressure Impregnating	Material:	Sheet Metal + Plating
Color:	White Or Customize	Ositive Pressure In Cylinder:	0.6MPa (6.12KG/CM)
Negative Pressure In Cylinder:	1.02×10MPa	Inner Dimension:	L700 * W530 * H200mm
Warranty:	12 Month	External Dimensions:	L1500 * W900 * H1100mm
Power:	1HP	Key Word:	Vacuum Impregnation
High Light:	Transformer Coils Cable Testing Machine , Single Cylinder Transformer Cable Testing Machine , Vacuum Pressure Impregnated Transformer Cable Tester

Single Cylinder Transformer Coils Cable Testing Machine Vacuum Pressure Impregnating

Product Description:

1, This machine adopts man-machine interface (Weilun color 7 inch) touch screen + (Mitsubishi) PLC control; All parameters can be programmed through the man-machine interface, and can store 0-50 different data sets.
2, by the stepper motor control the level of rise and fall, the height of the liquid level adjustable (0.1-60mm) and speed adjustable.
3, and the dipping time adjustable (0-999 seconds), at the same time with the alarm time, the second vacuum, automatically into the air, automatically open the lid and other functions.
4, the vacuum pump selection XD-020-380V, vacuum rapid, vacuum can be set (time control)

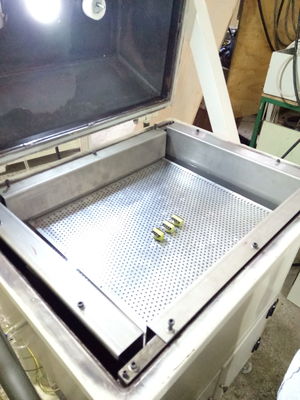

5, the vacuum box L700 * W 530 * H400 selection of high quality steel GB 6mm, vacuum cover selection of international quality steel welded together.
6, sealing system used 12mm imported silicone seal for sealing.
Automatically open the lid, automatic charge and discharge gas, liquid level automatic lift, PLC + touch screen control, can effectively prevent the pin dip paint, reduce the secondary solder!

ZL-1034A Vacuum Impregnation Machine(Single Cylind...

Parameter:

Power	AC220V / 380V 50Hz / 60Hz
Power	1HP
Positive pressure in cylinder	0.6MPa (6.12KG/CM)
negative pressure in cylinder	1.02×10MPa
Inner dimension	L700 * W530 * H200mm
External dimensions	L1500 * W900 * H1100mm
Weight	about 220Kg

We are Zhongli Instrument Technology Co., Ltd, an instrument Expert, Headquartered in Dongguan, Guangdong, China.since 2007, specialized in manufacturing Lab testing equipments.

Throughout its more than 14 years of history, Our products have sold well in the Europe, America and Southeast Asia market and total more than 95 countries these years,especially favored by European and American countries.

Our equipments cover a wide range of industries, such as rubber and plastics industry, food industry, packaging industry, electronics industry, etc.and are suitable for all scientific research units, quality inspection institutions and academic fields.
