IEC60851-5 Cable Testing Machine Salt Water Bath Pinhole Tester For Enameled Wires

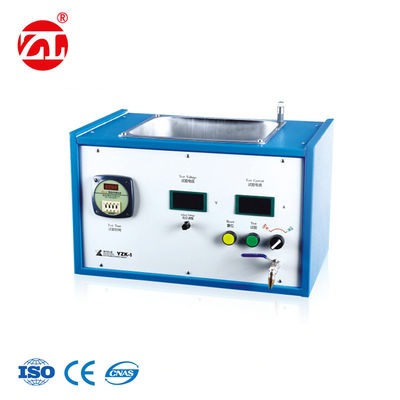

Large Image : IEC60851-5 Cable Testing Machine Salt Water Bath Pinhole Tester For Enameled Wires

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2718

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	IEC60851-5 YZK-I Salt Water Bath Pinhole Tester For All Enameled Wires is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	IEC60851-5 YZK-I Salt Water Bath Pinhole Tester For All Enameled Wires	Testing Voltage:	DC3-24V Preset
Short-Circuit Current:	﹤150mA	Cubage Of Salt Water Bath:	2500ml
Input Power Supply:	AC220V±10% 50Hz	Consumed Power:	≤50W
Highlight:	cable testing device , cable flex tester

IEC60851-5 Cable Testing Machine Salt Water Bath Pinhole Tester For Enameled Wires

YZK-I Salt Water Bath Pinhole Tester

The YZK-I Salt Water Bath Pinhole Tester is designed for efficient testing of pinholes in enameled wires, providing direct, stable, and reliable results across all wire diameters and specifications.

Key Features

Implementation Standard: IEC60851-5
Prompt, simple, and convenient testing solution
Universal application for all enameled wires
No limitations based on wire diameter or specification
Simple operation with direct, stable, and reliable results

Technical Parameters

\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n

Parameter	Specification
Testing Voltage	DC 3-24V Preset
Density of Sodium Chloride	2g/L
chemical reagent Ethanol Solution	30g/L
Short-Circuit Current	<150mA
Cubage of Salt Water Bath	2500ml
Time of Sample Immersed	1s-99min59s Preset
Input Power Supply	AC220V\u00b110% 50Hz
Consumed Power	\u226450W
Dimension	L\u00d7W\u00d7H 520\u00d7350\u00d7340mm
Weight	17kg
