| Product Name: | IEC60884 Tracking Index Test Machine With Electrical Switch Cover Leakage Current Proof | Test Voltage: | DC 0V-10000V Stepless Adjustable |
|---|---|---|---|
| Test Power: | 6000W | Drop Liquid Accuracy: | 0.5% |
| Electrode: | 0.5mm Thickness, Material: Stainless Steel | Working Capacity: | 800L*750W*850H(mm) |
| Key Words: | High Voltage | ||
| High Light: | IEC60884 Tracking Index Tester,Leakage Current Proof Tracking Index Tester,IEC60884 Electrical Leakage Tester |
||

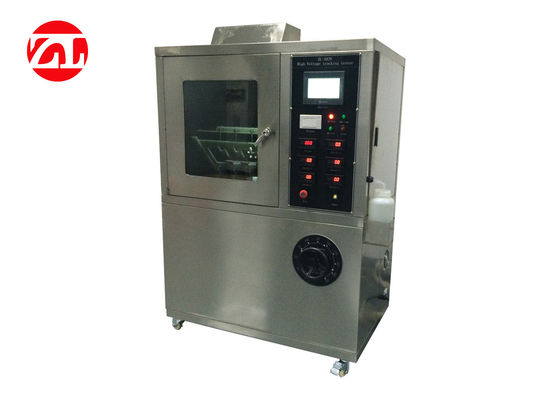

IEC60884 Tracking Index Test Machine With Electrical Switch Cover Leakage Current Proof
Test standard: IEC 60587
| Test voltage range(KV) | Tracking recommend voltage (KV) | Pollution liquid flow rate (ml/min) | Series resistance(KΏ) |
| 1.0 ~ 1.75 | - | 0.075 | 1 |
| 2.0 ~ 2.75 | 2.5 | 0.15 | 10 |
| 3.0 ~ 3.75 | 3.5 | 0.30 | 22 |
| 4.0 ~ 4.75 | 4.5 | 0.60 | 33 |
| 5.0 ~ 6.0 | - | 0.90 | 33 |
ZL-1029 High Voltage tracking tester.pdf
Technical Parameters:
1, Tester size:1250L*800W*1800H(mm)；
2, Working capacity:800L*750W*850H(mm)；
3, Electrode : 0.5mm thickness, Material: Stainless steel
4, Distance between up and down electrode:50.0mm±0.1；
5, Test Voltage:AC 0V-8000V Stepless adjustable；
6, Test voltage:DC 0V-10000V Stepless adjustable；
7, Test power:6000W；
8, The liquid flow range: 016-1.5ml/min can be set；
9, Drop liquid accuracy:0.5%
10, Test hours: 0-10 hours, can be set
11, Controller : Use Germany’s Siemens PLC + Taiwan’s screen, full touch screen control operation
12, Weight: 240 kg
13, Test voltage, series resistance and Pollution liquid flow rate table.
Description:
This testing machine suit for electronic products, household appliances and other materials resistance to tracking and erosion test, simulate the frequency (48HZ-62HZ) or a corresponding DC Voltage, liquid contaminants and ramps samples by electrical resistance to tracking and erosion measurements assessed under severe environmental conditions of electrical insulating materials resistance to tracking and erosion levels.
We are Zhongli Instrument Technology Co., Ltd, an instrument Expert, Headquartered in Dongguan, Guangdong, China.since 2007, specialized in manufacturing Lab testing equipments.
Throughout its more than 14 years of history, Our products have sold well in the Europe, America and Southeast Asia market and total more than 95 countries these years,especially favored by European and American countries.
Our equipments cover a wide range of industries, such as rubber and plastics industry, food industry, packaging industry, electronics industry, etc.and are suitable for all scientific research units, quality inspection institutions and academic fields.
In addition to standard machines, our R&D team can customize it for you. Just tell us your needs and we will make you satisfied.
