Single Wire Or Cable Vertical Burning Test

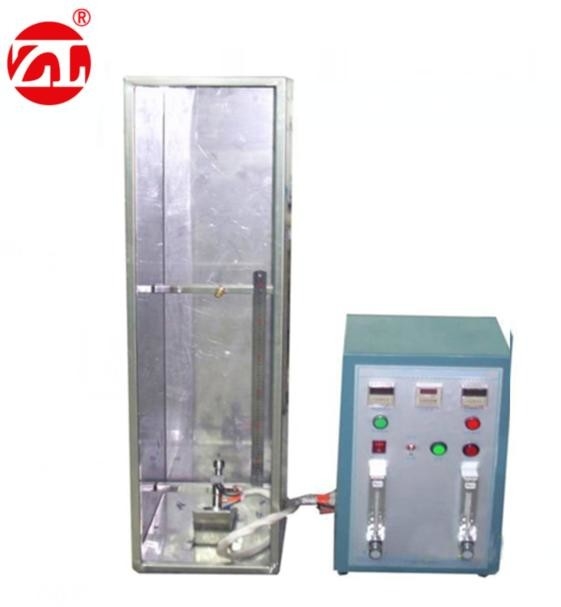

Large Image : Single Wire Or Cable Vertical Burning Test

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-1028

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Single Wire Or Cable Vertical Burning Test is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	Single Wire Or Cable Vertical Burning Test	The Combustion Chamber:	1200 X 450mm
Sample Length:	600 ± 25mm	Air Flow Range:	1-10L/min;
Pressure Gauge:	0~0.75kpa Range Adjustment	Ignition Mode:	High Pressure Automatic Ignition
Gas Flow Range:	100-1000mL/min
Highlight:	GB/T 18380.11 Burning Tester , Single Wire Burning Tester , Single Cable Vertical Burning Test Machine

Single Wire Or Cable Vertical Burning Test

Reference Standards

GB/T 18380.11‐2008, IEC60332‐1‐1:2004, GB/T 18380.12‐2008, IEC60332‐1‐2:2004, GB/T 18380.13‐2008, IEC60332‐1‐3:2004, GB/T 18380.21‐2008, IEC 60332‐2‐1:2004, GB/T 18380.22‐2008, IEC60332‐2‐2:2004, EN50265‐1, EN50265‐2‐1, GB/T5169.14‐2007 and IEC60695‐11‐2:2003.

Technical Description

The single wire and cable vertical burning tester is designed for measuring the vertical burning non-invasive performance of various cables including single plastic wire, control wire, cross-linked, elevator, ship, and mining cables. It is also suitable for testing high self-extinguishing low-smoke halogen-free flame-retardant polyolefin insulation materials and 105°C low-smoke halogen-free flame-retardant olefin radiation insulating materials.

This device provides reliable burning test capabilities for single wires and cables, featuring high accuracy, automatic timing, automatic test termination, and user-friendly operation.

Technical Specifications

Specification	Details
Combustion Chamber	Box size: 300mm wide × 1200mm high × 450mm deep
Combustion Torch	1KW combustion nozzle (GB/T5169.14-2007/IEC60695-11-2:2003 standard), blue flame core height: 50-60mm, total flame height: 170-190mm
Gas	High-purity 95% technical grade propane gas (or gas alternative)
Sample Installation	Sample length: 600 ± 25mm; Distance between upper and lower brackets: 550mm
Fire Time	0.1-999.9S continuous setting with continuous flame application during set time
Torch Installation	Blue flame contact point distance from lower edge of upper bracket: 475mm; Torch angle: 45° to specimen's vertical axis
Control Functions	Manual or automatic operation selection
Gas Flow Range	100-1000mL/min
Air Flow Range	1-10L/min
Pressure Gauge	0~0.75kpa range adjustment
Ignition Mode	High pressure automatic ignition
