Product Details:
Payment & Shipping Terms:
|
| Product Name: | TEMI880 Simulated Temperature And Humidity Climate Control Machine | Humidity Range: | 20%~98%R.H. |
|---|---|---|---|
| Temperature Range: | -70℃~+100℃(150℃) | Cooling System: | Air-cooled/ Single-stage Compressor(-20℃) ，wind, Water Cooled/two-stage Compressor(-40℃~-70℃) |
| Protection: | Compressor Overload Switch, High And Low Pressure Protection Switch, Over-humidity-temperature Protection Switches, Fuses, Warning System | Power: | 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz |
| Compressor: | France Tecumceh | ||
| High Light: | Tecumceh Compressor Climate Control Machine,Programmable Climate Control Machine,Tecumceh Compressor Climate Control Chamber |
||

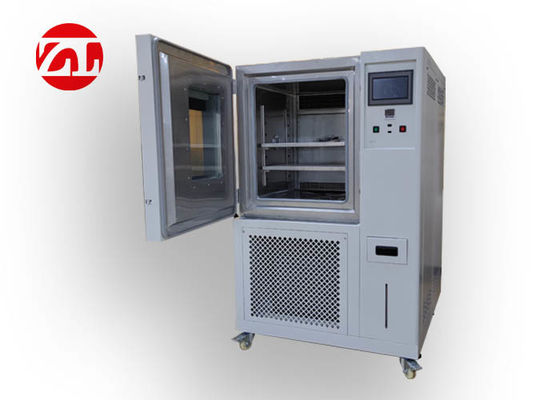

TEMI880 Simulated Temperature And Humidity Climate Control Machine
Machine is made of stainless steel:
powder paint outside the box
ZL-6004B programmable constant temperature and hum...
Equipment summary:
The machine is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.
Features:
1. High-texture appearance, the surface handled through the matte stripes, and use of planar non-reactive handles, easy to operate, safe and reliable.
2. Rectangular complex glass window can be viewed the testing sample, windows with anti-sweat heater device that prevents water vapor condensation, and high-brightness PL light.
3. Double-insulated airtight container, which can effectively isolate the internal temperature of leakage.
4. With an external water supply system can be easy to supply water and automatically reuse.
5. Compressor circulatory system from French "Taikang", more effective removal of oil between the condenser and the capillary and use environmentally refrigerants (R23, R404, R507).
6. Controller imported LCD display screen can be displayed measuring values and setting the value and time.
7. Controller with multi-segment program edited, temperature and humidity can be controlled quickly (OUICK) or slope (SLOP).
8. Built-in mobile pulley easy to move and has a strong positioning screw fixed position
Constant temperature and humidity test chamber, also known as "Programmable Constant Temperature and Humidity Test Chamber FR-1204 Constant Temperature and Humidity Chamber", belongs to the same series as "High and Low Temperature Alternating Humidity and Heat Test Chamber/GDS-100". Testing equipment necessary for fields such as testing and determining the parameters and performance of electrical, electronic and other products and materials after high temperature, low temperature, alternating humidity or constant temperature environment changes.
| Insulation material | High-temperature high-density amino acid ethyl ester foam insulation materials, |
| Cooling system | Air-cooled/ single-stage compressor(-20℃) ,wind, water cooled/two-stage compressor(-40℃~-70℃) |
| protection | compressor overload switch, high and low pressure protection switch, over-humidity-temperature protection switches, fuses, warning system |
| accessories | recorder(purchase),view window,50mm testing hole,PL lamp,clapboard,Dry and wet gauze ball |
| controller | TEMI300 digital controller from South Korea |
| compressor | France Tecumceh |
| power | 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz |
Information and services
1. To provide equipment drawing, electrical schematics, electrical wiring diagram, consume parts, operating manuals and other technical information, copy of two, and to provide essential technical information.
2. Trained how to operate and maintain the equipment, so the staff grasp to the skill of of equipment.
3. Equipment, one year warranty for free maintenance service: after one year provide the accessories for paying costs price.
