Dongguan Zhongli Instrument Technology Co., Ltd.
Home ProductsEnvironmental Test Chamber

JIS H8502 CNS.4158 480L Salt Spray Corrosion Test Chamber

China Dongguan Zhongli Instrument Technology Co., Ltd. certification
China Dongguan Zhongli Instrument Technology Co., Ltd. certification
Exceptional company. 5 STAR!!! Ship rapidly the item and very WELL packed and protected.Very good machinery and very good communication with company. i more than highly recommend using Dongguan Zhongli Instrument.

—— Remy Attalin

The response from the seller was very fast and helpful. Issuing and confirming the PO/PI was done in a single day. The product was shipped the next day after the transaction is confirmed. Couldn't be more satisfied in terms of service provided by the seller. The machine is well packed in wooden case. Everything arrived in good condition. Come with

—— Warunee Nahauythong

I'm Online Chat Now

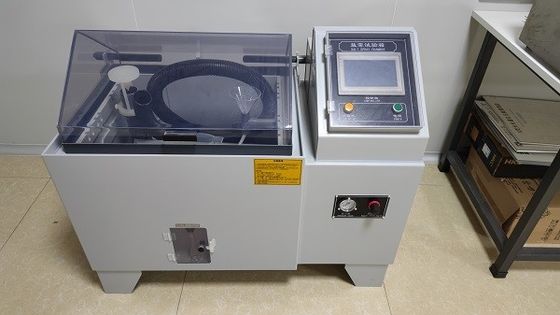

JIS H8502 CNS.4158 480L Salt Spray Corrosion Test Chamber

JIS H8502 CNS.4158 480L Salt Spray Corrosion Test Chamber
JIS H8502 CNS.4158 480L Salt Spray Corrosion Test Chamber
video play

Large Image :  JIS H8502 CNS.4158 480L Salt Spray Corrosion Test Chamber

Product Details:
Place of Origin: CHINA
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-6001A
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Salt Mist Corrosive Resistance Tester Salt Fog Corrosion Test Chamber is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 sets / month
Detailed Product Description
Product Name: Salt Mist Corrosive Resistance Tester Salt Fog Corrosion Test Chamber Testing Room Temperature: Salt Test (NSS ACSS)35℃±1℃/ Corrosion Test (CASS)50℃±1℃
Testing Room Relative Humidity: 85% Above Testing Room Capacity: 480L
Key Words: Touch Screen Air Pressure: 1.00±0.01kgf/cm2
Spray Form: Programmable Spray (Including Continuous And Intermittent Spray)
High Light:

480L Corrosion Test Chamber

,

CNS.4158 Corrosion Test Chamber

,

JIS H8502 Salt Spray Test Chamber

Salt Mist Corrosive Resistance Tester Salt Fog Corrosion Test Chamber



Equipment summary:



Salt spray testing machine used to test the corrosive resistance of products whose the surface was treated with paint, electroplating, inorganic and organic film, anode handling, anti-rust oil,etc.

ZL-6001A programmable salt spray testing machine.p...



Technical parameters:



Model ZL-6001B (108L) ZL-6001B (270L) ZL-6001B (480L)
Inside box size(cm) 60x45x40 90x60x50 120x80x50
Outside box size(cm) 107x60x118 141x88x128 190x110x140
Testing room temperature Salt test (NSS ACSS)35℃±1℃/ Corrosion Test (CASS)50℃±1℃
Pressure barrel temperature Salt test (NSS ACSS)47℃±1℃/ Corrosion Test (CASS)63℃±1℃
Brine temperature 35℃±1℃ 50℃±1℃
Testing room Capacity 108L 270L 480L
Brine tank capacity 15L 25L 40L
Salt concentration The concentration of sodium chloride 5% or the 5% concentration of sodium chloride add 0.26g per liter of copper chloride (CuCl2 2H2O)
Air pressure 1.00±0.01kgf/cm2
Spray volume 1.0~2.0ml/80cm2/h (working at least 16 hours, and then take the average)
Testing room relative humidity 85% above
PH 6.5~7.2 3.0~3.2
Spray form Programmable spray (Including continuous and intermittent spray)
Power AC220V1Φ10A AC220V1Φ15A AC220V1Φ20A





Corresponding standard :



1. GB/T 2423.17-1993 salt spray test

2. GB/T 2423.18-2000 salt spray test

3. GB/T 10125-1997 salt spray test

4. ASTM.B117-97 salt spray test

5. JIS H8502 salt spray test

6. IEC68-2-11 salt spray test

7. IEC68-2-52 1996 salt spray test

8. GB.10587-89 salt spray test

9. CNS.4158 salt spray test

10. CNS.4159 CASS Accelerated acetic acid copper salt spray test

11. GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test


Heating system:

Using steam direct heating method, the heating speed is fast, and the standby time is reduced; when the specified temperature is reached, the constant temperature state is automatically switched, the temperature is accurately controlled, and the power consumption is low; the pure titanium heating tube is resistant to acid and alkali corrosion and has a long service life.

The integral molding is welded at high temperature, corrosion-resistant, easy to clean, and no leakage. Tower spray system, equipped with salt liquid filtration system, no crystallization nozzle, even salt spray distribution, and free adjustment of settlement.

The lid of the box is made of transparent material to clearly see the test items and spray conditions in the box.

A water-tight structure is adopted between the box cover and the box body, and there is no salt spray overflow.

The circuit control board and other vital parts are fixed in a position that is convenient for inspection and maintenance. The side door is opened with a door lock, which is not only beautiful, but also convenient for maintenance.


JIS H8502 CNS.4158 480L Salt Spray Corrosion Test Chamber 0



JIS H8502 CNS.4158 480L Salt Spray Corrosion Test Chamber 1
