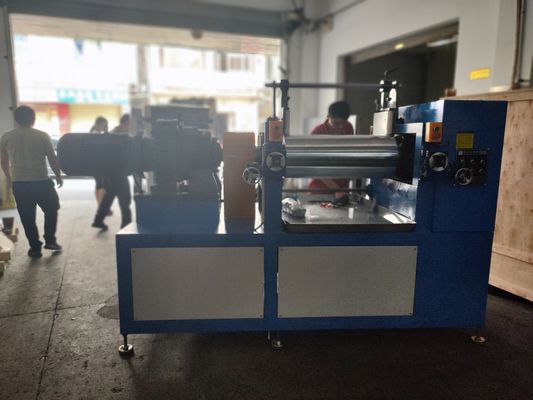

Intelligent Control 12 Inch Two Roll Silica Gel Mixing Mill Custom Made

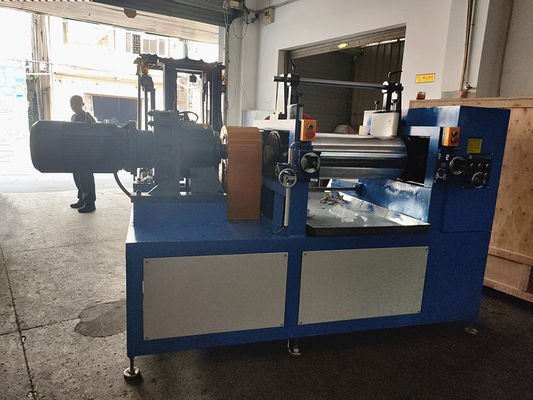

Intelligent Control 12 Inch Two Roll Silica Gel Mixing Mill Custom Made

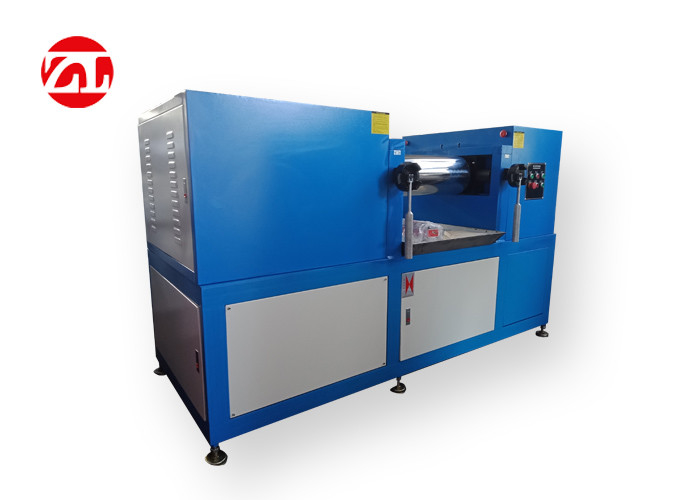

Intelligent Control 12 Inch Two Roll Silica Gel Mixing Mill Custom Made
video play

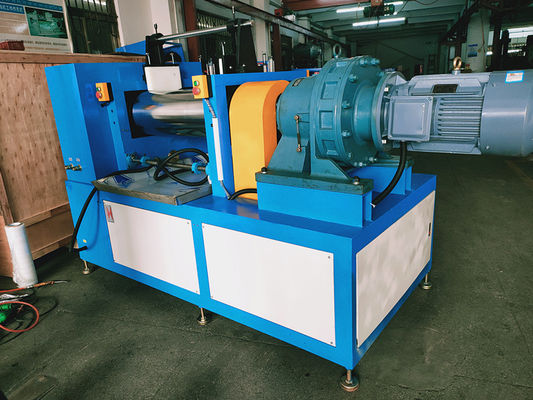

Large Image :  Intelligent Control 12 Inch Two Roll Silica Gel Mixing Mill Custom Made

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-3018
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Intelligent Control 12 Inch Two Roll Silica Gel Mixing Mill Custom Made is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 Sets
Detailed Product Description
Product Name: Intelligent Control 12 Inch Two Roll Silica Gel Mixing Mill Custom Made Diameter Of Roll: 300mm
Length Of Roller Face: 650mm Mixing Capacity: 1-15kg
Friction Ratio: 1:1.27 Roll Gap Range: 0-12
Driving Power: 30kw Key Words: Silica Gel , 12 Inch
High Light:

Silica Gel Two Roll Mixing Mill

,

Intelligent Control Two Roll Mixing Mill

,

Intelligent Control Two Roll Mill

Intelligent Control 12 Inch Two Roll Silica Gel Mixing Mill Custom Made





Application:



Silica gel open two roll mixing mill. It is widely used in rubbers and plastics industry for polymer mixing, such as PVC, color master batch. It consists of roll, bearing, gap adjusting device, electric control system, safety device, etc.



Overview:



Two roll mixing machine are engineered to provide unmatched performance for masticating and kneading natural rubber,synthetic rubber , EVA or PVC pellets with various chemical materials,This machine is mainly used to plastic ,hot mill and mixing mill of natural and synthetic rubber for rubber product factory

ZL-3018 Two roll mill.pdf



Feature:



1. Auto feeding oil or grease lubrication, it is easy to maintain and protect machine.



2. Construction of mill rolls: drilled roll, bored roll, grooved roll



3. Methods of adjusting roll nip: manual or electric



4. We can design speed ratio as per customers' formula and processing requirements.



5. Rolls material is chilled cast alloy iron which hardness is reach to 70HB.



6. Frame, frame cap and base are welded and treated by annealing for stress relieving.



7. Brake and emergency stop device can ensure the safety of personnel and equipment.



8. Human nature designed controlling system ensure labor safety.



PLC control system and Intelligent control panel



1. The control system is capable of remote import of the process recipe and data monitoring, communicating with MES via Ethernet communication interface.

2. The control system can be set up to 20 mixing steps, save 20 recipe spaces.

3. An Ethernet communication interface and 20% of the control points are reserved. Touch screen is provided.

4. Real-time data record and export of kneading time, temperature (mixing chamber and front/rear rotors), ram pressure, current, torque and recipe code.



Technical parameters:



Model   ZL-3018-76 ZL-3018-120 Zl-3018-160 ZL-3018-200 Zl-3018-230 Zl-3018-300 ZL-3018-400
Diameter of roll mm 76 120 160 200 230 300 400
Length of roller face mm 300 350 350 500 650 650 900
Mixing Capacity kg 0.002-0.6 0.002-2 0.002-2.8 0.002-5 0.005-10 1-15 5-30
Front roll surface speed rpm 19 19 19 19 19 19 19
Friction ratio   1:1.30 1:1.35 1:1.35 1:1.35 1:1.27 1:1.27 1:1.27
Roll gap range mm 0-3 0-6 0-6 0-8 0-12 0-12 0-15
Driving Power KW 1 1.5 2.2 7.5 11 30 37
Heating Mode Electricity heating , Oil Heating ( option)
Cooling Mode Water Cooling ( option)
Roll Temperature Room temperature -- 300℃
Roll Hardness HRC 50 ~ 68
Temperature Accuracy ± 2 ℃ (we adopt the high accuracy PID micro computer controller)
Safety device It has 6 safety buttons and safety guard is option
Machine weight kg 160 460 660 860 1960 2960 3800
Overall dimension mm

1100x400

x1180

1100x550

x1380

1200x650

x1380

2200x750

x1380

2200x950

x1580

2600x950

x1580

5295x1789

x170

Power 380V 3 phase 50-60hz



Download Brief:

ZL-3018 Two roll mill.pdfZL-3018 Two roll mill.pdf
