IEC 60068-2 Buttons Operation Type Salt Spray Corrosion Testing Machine

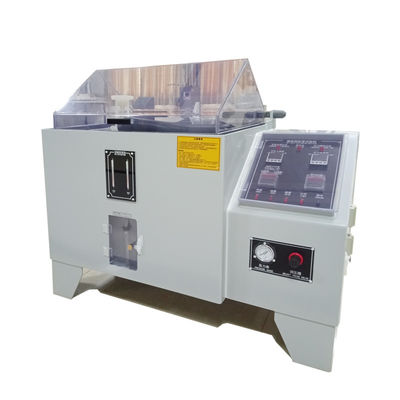

Large Image : IEC 60068-2 Buttons Operation Type Salt Spray Corrosion Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-6001

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	IEC 60068-2 Buttons Operation Type Salt Spray Corrosion Testing Machine is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	IEC 60068-2 Buttons Operation Type Salt Spray Corrosion Testing Machine	Inside Box Size:	60x45x40cm
Outside Box Size:	107x60x118cm	Brine Temperature:	35℃±1℃ 50℃±1℃
Testing Room Capacity:	108L	Brine Tank Capacity:	15L
Air Pressure:	1.00±0.01kgf/cm2	Key Words:	Salt Spray
Highlight:	IEC 60068-2 Corrosion Testing Machine , 108L Corrosion Testing Machine , IEC 60068-2 Salt Spray Test Machine

IEC 60068-2 Buttons Operation Type Salt Spray Corrosion Testing Machine

This salt spray testing machine is designed to evaluate the corrosive resistance of products with surface treatments including paint, electroplating, inorganic and organic films, anode handling, and anti-rust oil.

Compliance Standards

GB/T 10125-1997 salt spray test
GB/T 2423.17-1993 salt spray test
GB/T 2423.18-2000 salt spray test
GB.10587-89 salt spray test
IEC68-2-11 salt spray test
IEC68-2-52 1996 salt spray test
ASTM.B117-97 salt spray test
JIS H8502 salt spray test
CNS.4158 salt spray test
CNS.4159 CASS Accelerated acetic acid copper salt spray test
GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test

Technical Specifications

Model	ZL-6001B (108L)	ZL-6001B (270L)	ZL-6001B (600L)
Inside box size (cm)	604540	906050	16010050
Outside box size (cm)	10760118	14188128	210130140
Testing room temperature	Salt test (NSS ACSS) 35℃±1℃ / Corrosion Test (CASS) 50℃±1℃
Pressure barrel temperature	Salt test (NSS ACSS) 47℃±1℃ / Corrosion Test (CASS) 63℃±1℃
Brine temperature	35℃±1℃ / 50℃±1℃
Testing room capacity	108L	270L	600L
Brine tank capacity	15L	25L	50L
Salt concentration	5% sodium chloride or 5% sodium chloride with 0.26g per liter of copper chloride (CuCl₂·2H₂O)
Air pressure	1.00±0.01kgf/cm²
Spray volume	1.0~2.0ml/80cm²/h (average of at least 16 hours operation)
Testing room relative humidity	85% above
PH	6.5~7.2 / 3.0~3.2
Spray form	Programmable spray (including continuous and intermittent spray)
Power	AC220V 1Φ 10A	AC220V 1Φ 15A	AC220V 1Φ 20A
