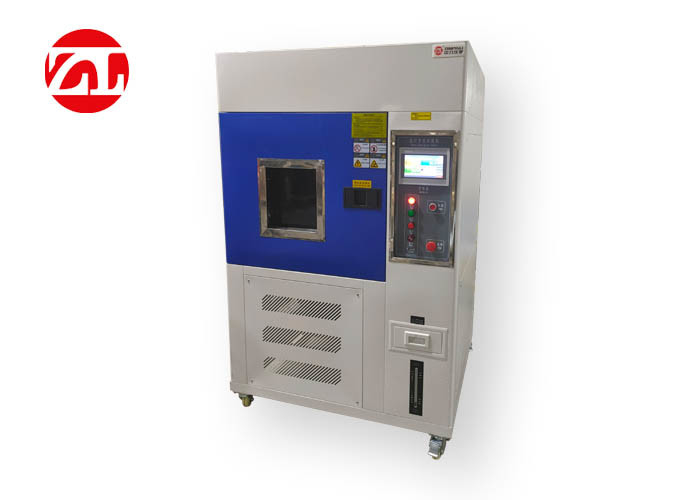

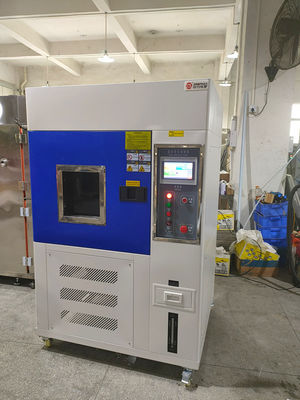

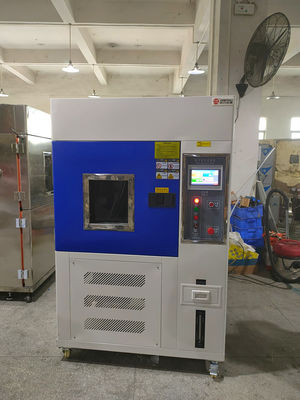

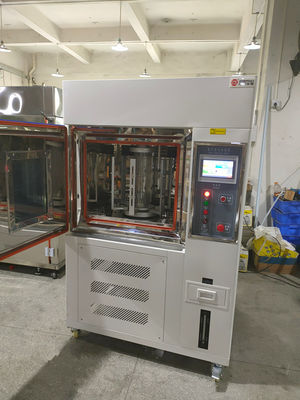

Efficient Xenon Arc Lamp Weather Resistance Accelerated Aging Chamber

Efficient Xenon Arc Lamp Weather Resistance Accelerated Aging Chamber
Efficient Xenon Arc Lamp Weather Resistance Accelerated Aging Chamber
video play

Large Image :  Efficient Xenon Arc Lamp Weather Resistance Accelerated Aging Chamber

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-6011A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Efficient Xenon Arc Lamp Weather Resistance Acceleration Aging Testing Chamber is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 Sets
Detailed Product Description
Product Name: Efficient Xenon Arc Lamp Weather Resistance Acceleration Aging Testing Chamber Humidity Range: 65~98%R·H
Spray Time: 1~9999min, Adjustable Xenon Lamp Power: 1kw、6kw( Longevity:1600H)
Outside Material: Advanced Spray Color Plate /SUS304 Stainless Steel Inside Material: SUS304 Stainless Steel
Power: AC380V±10% 50±0.5HZ , Three-phase Five-wire System Key Words: Aging Testing Chamber
High Light:

Xenon Arc Lamp Accelerated Aging Chamber

,

AC380V Accelerated Aging Chamber

,

GB12831-86 aging test chamber

Efficient Xenon Arc Lamp Weather Resistance Acceleration Aging Testing Chamber




Corresponding standard:
GB12831-86 Vulcanized rubber artificial climate (xenon lamp) Aging Test Method
GB/T1644.2-1999Plastics laboratory light exposure test method
GB/T8427-89 textile color fastness test, resistance to artificial light fastness xenon arc
GB/T8430-98 textile color fastness test, resistance to artificial light fastness xenon arc
GB/T1865-97 Paints, varnishes, artificial weather aging and artificial radiation exposure
GB/T16991-97 textile color fastness test,
GB/T5137.3-96 simulated climate test method of resistant to radiation, heat, humidity, burning
GB/T16259-96 color building materials, artificial climate accelerated aging test method.
GB/T2423.24-95 Electronic and Electrical Products Environmental Testing Part II: test method, testing SQ: Simulation of solar radiation on the ground
ASTM G155-05a Standard Practice for Operating Xenon Arc Light Apparatus for Exposure of Non-Metallic Materials1

Equipment summary:

Xenon lamp aging testing machine is a comprehensive climate testing machine, in addition to climatic aging test, the lightfastness of materials can be carried out to test, polymer materials exposed at simulated sunlight. It simulates the light, temperature, rainfall, condensing, humidity to test the materials; it can be used for choosing new materials, improving existing materials, or assessment of change in material composition;

Applicable industries:

Applied to control the product quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.

Main functions:

Make the samples exposed to the high temperature and alternating back to the circle of light and moisture environment to test the materials. This machine use xenon lamp tube to simulate the sunlight radiation, and use condensation water and spray water to simulate the dew and rain. This instrument only use a few days or weeks time, to realize the condition or the parts aging damage state in outside environment in few months or years. Including fade, color change, fracture, crack, wrinkle, foaming, embrittlement, strength reduction, oxidization and so on.

Main feature:

Xenon lamp test chamber (vertical climate resistance) the cold rolled steel sheet electrostatic pensu or high quality stainless steel sheet, the tank for high quality stainless steel plate. Radiation light source is the solar spectrum xenon lamp, automatically track irradiation intensity, precisely control the blackboard temperature, irradiation cycle, dark cycle, spray cycle all can set according to relevant test standards or customer's requirements . Xenon lamp box (desktop weather resistance test) according to the user's controller to choose imported touch screen control instrument or intelligent digital display controlling instrument.
Xenon lamp climate resistance test box with ultraviolet radiation sensors, it can amend the aging tube or any other changes in the light energy decrease in time. Ultraviolet radiation sensors allows you to select proper light irradiation during the test. Ultraviolet radiation sensors can monitor indoor light irradiation intensity continuously, and by adjusting the power of tubes, can accurately keep the irradiation intensity in operation value.
Water spray cycle can effectively simulate temperature changing and rain erode process. Because of the rain was often flush, coating layer of lumber(including paint and coloring), will have erosion phenomenon. Recent research results show that the rain layer washed the material itself thus the materials are directly exposed to UV and water . The rain spray function can reproduce such environmental conditions, and enhance some paint climate aging test.

Equipment safety protection device:

  1. Power overload, short circuit protection
  2. Ground protection
  3. Over temperature protection
  4. Water shortage protection
  5. In order to protect the equipment,All alarm will automatically cut off power supply,and with audible reminder

Technical parameter:


ModelZL-6011A
Testing room D×W×H500*600*500mm
IndexTemperature rangeRT+10℃~80℃
Humidity range65~98%R·H
Spray time1~9999min, adjustable
Spray cycle1-240min, interval adjustable
Spectral wavelength290nm~800nm(550w/m2)
Light sourcexenon lamp(air-cooled)
Xenon lamp power1kw,6kw(longevity:1600H)


Temperature and humidity control

Time controllerImport controller from Moeller
Accurate rangeTemperature: ±0.1℃,/ humidity: ±0.1℃R·H
SensorPlatinum resistance Pt100Ω/mv
Heating systemIndependent system, nickel chromium alloy electric heating type heater
Humidity systemstainless steel, external Isolated humidifier
Blackboard temperatureBimetal thermometer blackboard 55℃~75℃
Water supplyHumidification water supply with automatic control, xenon lamp cooled by water recycling
Temperature controllerImport controller
umidityIrradiation: 30%~65%RH darkly: up to 90%RH
Cycle systemlow-noise air-conditioning-type motors, multi-leaf-type centrifugal wind wheel
MaterialOutside materialAdvanced spray color plate /SUS304 stainless steel
Inside materialSUS304 stainless steel
Sample holder materialSUS304 stainless steel
InsulationHigh and low temperature aging of silicone rubber
Standarda set of radiation-proof glass window, dynamic testing sample shelf 1, xenon lamp tube 2
ProtectorLeakage, short circuit, over-temperature, water shortages, motor overheating, over-current protection.
PowerAC380V±10% 50±0.5HZ , Three-phase five-wire system
Environmental temperature±5℃~+30℃ ≤85%R·H


Operating conditions:

1. Temperature:15℃~35℃
2. Relative humidity: less than 85%RH
3. Without strong vibration and strong electromagnetic field
4. Without high concentration of dust and corrosive materials in round field
5. No direct sunlight or other sources of heat radiation directly
6. Without a strong airflow around,when need forced air flow around,air should not be blown directly to the body
7. Test cases should be placed stably, level
8. The sides of the test chamber should keep a certain distance, convenient maintenance operation.
9. Installation site well ventilated
10. Ground Benign
