ISO1974 Microcomputer Control Textile Tearing Machine

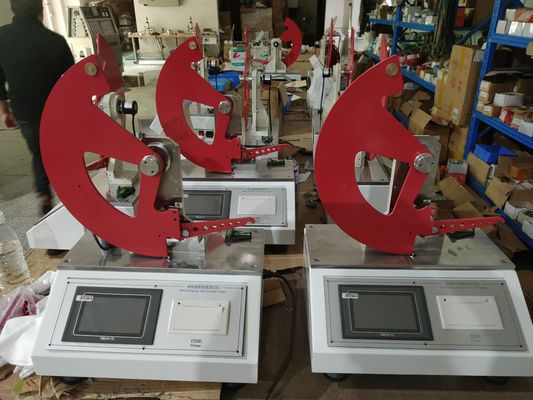

Large Image : ISO1974 Microcomputer Control Textile Tearing Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-9010A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	ISO1974 Microcomputer Control Tearing Machine for Paper Board and Textile is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	ISO1974 Microcomputer Control Tearing Machine For Paper Board And Textile	Tearing Arm:	(104±1)mm
Tear The Initial Angle:	27.5 ±0.5°	Sample Length Of Incision:	(20±0.5)mm
Room Temperature:	20±10 Degree/temperature	Power:	AC220V±22V,50Hz,Power Should Be A Reliable Ground
Indication Accuracy:	Displaying Error:±1% ;Acceptability Error Of Indication:≤1%	Key Words:	Tearing Strength Machine
Highlight:	ISO1974 Textile Tearing Machine , Microcomputer Control Textile Tearing Machine , ISO1974 tearing strength tester

ISO1974 Microcomputer Control Textile Tearing Machine

ISO1974 Microcomputer Control Tearing Machine for Paper Board and Textile

Applications Industry

ZL-9010A Microcomputer control tearing machine is used in paper making, research, product quality supervision, and inspection industries as an ideal testing instrument.

ZL-9010A Microcomputer control tearing machine.pdf...

Standards Compliance

Performance parameters comply with ISO1974 "Paper - Determination of Tearing Strength (Ai-li gate Adolf Law)" and GB455 • 1 "Determination of Degree of paper tearing" and other standard requirements.

Working Principle

The instrument operates based on functional design principles. Tearing occurs at a position where potential energy stored in the pendulum is released, converting potential energy into kinetic energy to perform work on the sample. The force required to tear the sample (reflected by the rotation angle of the fan-shaped pendulum) is converted to an electrical signal through a high-precision photoelectric rotary encoder, processed by the control circuit, and displayed or printed as output.

Main Features

This electromechanical integrated testing device features a computer control system using high-precision photoelectric rotary encoder and digital single-chip microcomputer core circuit technology. Through Chinese language LCD display operations with command prompts, it enables simple human-machine dialogue. With advanced technology, complete functions, stable performance, and easy operation, it serves as ideal laboratory equipment for paper, packaging, research, and product quality supervision industries.

Technical Parameters

Parameter	Specification
Model	ZL-9010A Microcomputer control tearing machine
Measurement range	100mN~13000mN (Provides best sample layer and corresponding measuring range, according to tested sample strength for rational choice of specimen layer)
Indication accuracy	Displaying error: ±1%; Acceptability error of indication: ≤1%
Tearing arm	(104±1)mm
Tear initial angle	27.5±0.5°
Sample length of incision	(20±0.5)mm
Outside dimensions	450×310×465 (L×W×H mm)
Quality	About 15kg
Room temperature	20±10°C
Power	AC220V±22V, 50Hz, Power should be reliably grounded
Note	Working environment should be clean, dry, free from strong magnetic field sources and corrosive gases

Product Summary

ZL-9010A Microcomputer control tearing machine is a specialized instrument for determining tear strength of paper. The instrument is primarily used for determining tearing degree of paper and can also be used for determining tearing strength of cardboard with lower degrees.
