|Product Name:||IEC60529 Programmable Environmental Dust Test Machine IPX6 For Portland Cement||Test Chamber Dimension:||800*800*800mm|
|Outer Dimension:||1130*1250*1650mm||Metal Screen Wire Diameter:||50um|
|Screen Line Space:||75um||Environment Temperature And Humidity:||15~45°C, 45~75%RH|
|Dust(talcum Powder) Concentration:||2~4kg/m3||Test Time:||Dust Test Time Set Freely, 0~999.9hr|
|Power:||3ψ 4W+G 380VAC 50HZ||Key Words:||Dust Test Chamber|
IEC60529 Environmental Test Chamber,
IPX6 Environmental Test Chamber,
Portland Cement Test Apparatus

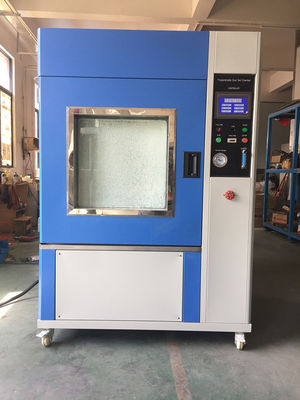

IEC60529 Programmable Environmental Dust Test Machine IPX6 for Portland Cement
LCD Touch Screen Programmable Dust Test Machine is mainly used for testing control cabinet, household appliances, low voltage electric appliance, automobile, lamps and lanterns, motorcycle parts,ect outer shells. Test chamber pressure can be constant and changed, suitable for indoor low concentration dust pollution test, assessment sample in this environment of sealing and corrosion degree.
LCD Touch Screen Programmable Dust Test Machine is designed according to GB4706, GB2423, GB7000.1, IEC60529,ect standards and meet the IPX5 and IPX6 dust test requirements.
1. LCD Touch Screen Programmable Dust Test Machine Inner material: Stainless steel (SUS #304)
2. LCD Touch Screen Programmable Dust Test Machine Outer material: Powder painting steel plate
3. Dust Test Chamber Use imported touch screen programmable controller, can control dust blowing motor, dust vibration and test time.
4. With sealing good chamber door, has lock device and glass observation window.There is lamp and dust brush to ensure easy observation of inner chamber.
5. With strong dust blowing device and vibrator to ensure informity of each blowing.
6. Circulating air supplying device: Frequency converter and high pressure motor to ensure the air volume more precision.
7. Large diameter strong stainless steel air hose, covered with heating device, can heat and dry the test chamber dust.
8. Anti-explosion handle, easy operation, strurdy and durable.
9. Imported high-precision electronic temperature humidity sensor and air speed sensor.
10. Test sample differential pressure test device, can set pumping rate freely according to sample inquiry.
11. There is a ψ50mm test hole on the left chamber and equipped with port lid and silica gel chock plug. Through this hole can connect to outer test device.
12. There are casters with brake equipments and fixing foot pad to make the machine easy operation and level adjustment.
13. With voltage current indicator, equipped with corresponding sample DC12V power, DC24V / 20 a, interval, continuous power supply adjustable. Dust concentration wind speed regulating function. May control test total time, blow the dust of time interval and blowing dust cycle and sample with the power source of the intermittent time.
14. Vacuum system: Equipped with pressure meter, air filtration, dust dehumidification system, regulating triple pieces, connecting pipe (Vacuum pump should be prepare by customer)
|Test chamber dimension||800*800*800mm|
|Metal screen wire diameter||50um|
|Screen line space||75um|
|Environment temperature and humidity||15~45°C, 45~75%RH|
|Dust(talcum powder) concentration||2~4kg/m3|
|Test time||Dust test time set freely, 0~999.9hr|
|Test dust||Dry talcum powder or portland cement|
|Power||3ψ 4W+G 380VAC 50HZ|
