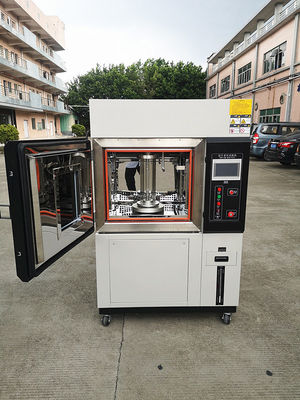

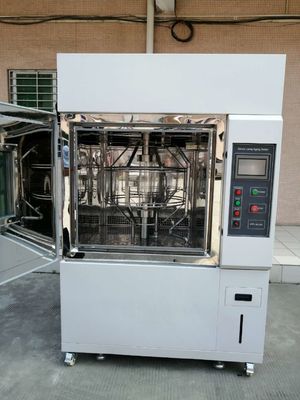

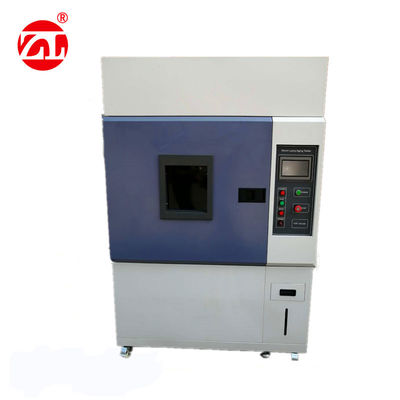

GB12831-86 Paint Xenon Lamp Aging Comprehensive Climate Testing Machine
The GB12831-86 Paint Xenon Lamp Aging Comprehensive Climate Testing Machine is a sophisticated environmental testing instrument designed to simulate sunlight, temperature, rainfall, condensation, and humidity conditions to evaluate material performance and durability.
Equipment Overview
This xenon lamp aging testing machine performs comprehensive climate testing, including material lightfastness evaluation. It exposes polymer materials to simulated sunlight conditions and is ideal for selecting new materials, improving existing materials, or assessing changes in material composition.
Key Features
- Constructed with cold-rolled steel sheet electrostatic coating or high-quality stainless steel
- Solar spectrum xenon lamp radiation source with automatic irradiation intensity tracking
- Precise control of blackboard temperature, irradiation cycle, dark cycle, and spray cycle
- Ultraviolet radiation sensors for real-time light energy monitoring and adjustment
- Water spray cycle effectively simulates temperature changes and rain erosion processes
- Available with imported touch screen control or intelligent digital display instruments
Main Functions
Exposes samples to high temperatures and alternating cycles of light and moisture environments. Uses xenon lamp tubes to simulate sunlight radiation, and condensation/spray water to simulate dew and rain. Accelerates aging damage that would normally take months or years to occur in outdoor environments, including fade, color change, fracture, crack, wrinkle, foaming, embrittlement, strength reduction, and oxidation.
Applications
Widely used for quality control in electronics, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, and medical care industries.
Technical Parameters
| Parameter | Specification |
|---|
| Model | ZL-6011C |
| Testing Room Dimensions | 700*500*400mm (W*L*H) |
| Temperature Range | RT/10℃~80℃ |
| Humidity Range | 65～98% RH |
| Spray Time | 1～9999min, adjustable |
| Spray Cycle | 1-240min, interval adjustable |
| Irradiance | 350W/㎡～1300W/㎡ (300～800nm) |
| Light Source | 2*1800W air-cooled xenon lamp |
| Xenon Lamp Power | 1kw, 6kw (longevity: 1600H) |
| Control Accuracy | Temperature: ±0.1℃, Humidity: ±0.1% RH |
| Blackboard Temperature | 40℃~110℃ (±3℃) |
| Power Supply | AC380V±10% 50±0.5HZ, Three-phase five-wire system |
Compliance Standards
GB12831-86, GB/T1644.2-1999, GB/T8427-89, GB/T8430-98, GB/T1865-97, GB/T16991-97, GB/T5137.3-96, GB/T16259-96, GB/T2423.24-95, ASTM G155-05a
Test Methods and Procedures
Fixed: 12 international and national xenon lamp aging test standards. Program capacity: 4 editable programs, maximum 1200 blocks. Simulates different test conditions using various internal and external filter covers. Automatic control, monitoring, and display of light/dark cycles.
Operating Conditions
- Temperature: 15℃~35℃
- Relative humidity: less than 85% RH
- Without strong vibration and strong electromagnetic fields
- Without high concentration of dust and corrosive materials
- No direct sunlight or other heat radiation sources
- Stable, level placement with adequate maintenance space
- Well-ventilated installation site with proper grounding
Safety Protection Features
- Power overload and short circuit protection
- Ground protection
- Over temperature protection
- Water shortage protection
- Automatic power cutoff with audible alarm for all protection functions
