GB 4789 Ultraviolet Sterilization Machine With Radiation Protection Design

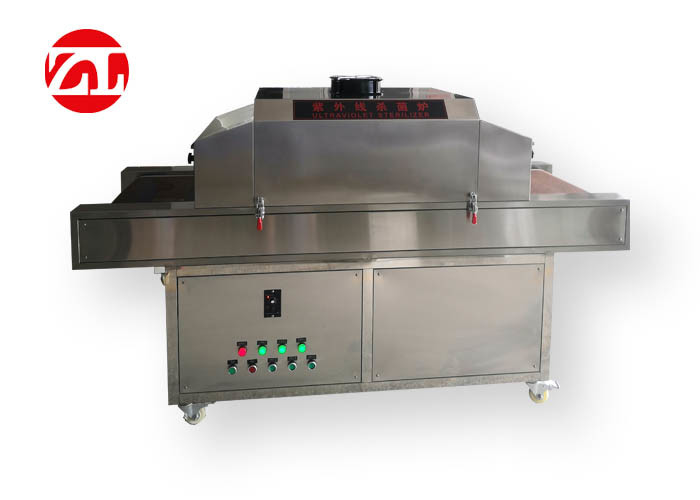

Large Image : GB 4789 Ultraviolet Sterilization Machine With Radiation Protection Design

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-6013

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	GB 4789 Ultraviolet Sterilization Machine With Radiation Protection Design is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	GB 4789 Ultraviolet Sterilization Machine With Radiation Protection Design	Tube Length:	900mm
Input And Output Height:	200mm (adjustable)	Equipment Length:	2000mm
UV Work Area:	1000mm	Feed Operation Area:	400mm
The Total Power:	1.5 KW	Transportation Motor:	800 W
Highlight:	4789.4 GB Ultraviolet Sterilization Machine , 1.5 KW Ultraviolet Sterilization Machine

GB 4789 Ultraviolet Sterilization Machine With Radiation Protection Design

This advanced ultraviolet sterilization machine is designed for comprehensive air, water, and surface sterilization applications. It meets GB 4789 standards and features radiation protection design for safe operation.

Applications

Widely used in hospitals, food processing facilities, tea and beverage packaging equipment, food factories, cosmetics factories, milk processing plants, breweries, beverage factories, bakeries, cold storage facilities, and more. Effectively extends product shelf life while maintaining quality standards.

Sterilization Technology

Utilizes ultraviolet irradiation sterilization to effectively eliminate microorganisms including Escherichia coli, mold, and significantly reduce total bacterial counts. The physical sterilization method minimizes damage to food components while achieving optimal sterilization results.

Compliance Standards

This product conforms to GB 4789.2, GB 4789.3, GB 4789.4, and GB 4789.5 standards.

Sterilization Device Specifications

UV light radiation tube length: 900 mm
16 * 20W UV germicidal lamps with comprehensive 360-degree coverage
Upper, lower, left, and right comprehensive sterilization

Protection Systems

Over-voltage and over-current protection
Equipment overload protection
Fault alarm system

Sterilization Parameters

Species	Name	100% Sterilization Time (s)	Species	Name	100% Sterilization Time (s)
Bacterial	Bacillus anthracis	90	Virus and Viroid	Influenza virus	70
	Clostridium tetani	83		Phagocytosis cell virus	53
	Coliform	62		Rotavirus	86
	Coronavirus	94		Staphylococcus aureus	94
	Salmonella	98		HBV	210
	Shigella	75		Algal bloom	213
Mycotic spore	Aspergillus	105	Nematode Eggs		101
	Pioneer fungi	99	Paramecium		131
	Mucormycosis	89	Protozoa		126

Equipment Body Dimensions

Equipment length	2000mm
UV work area	1000mm
Feed operation area	400mm
Discharging operation area	400mm
Input and output height	200mm (adjustable)
Input and output width	700mm
Conveyor belt height above ground	750±50mm

Electrical Specifications

Main switch	15A
Total power	1.5 KW
Mesh belt speed range	0-5 m/min
Transportation motor	800W
Governor	500W
Suction fan	CY-125
Ammeter	50A
Working voltage	220V +5% three-wire system 50Hz

Main Body Structure

External body of working tunnel: 1.2mm high-quality stainless steel (A3 model)
Work space tunnel cavity: 1.0mm mirror stainless steel plate (#212 model)
Body brace: Rectangular tube steel (2" model)
Wind system: Forced wind combination exhauster with harmful gas extraction (SANGJING model)
Thermal insulation material: Vacuum aluminum silicate + silk cotton double (60K model)
Conveyor belt: Mesh belt system
Lamp adjustable height: 100mm - 180mm manual adjustment
Balancing device: Smooth water goblet (50*12*100mm model)
