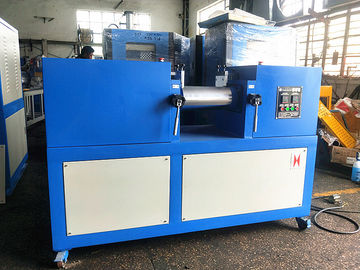

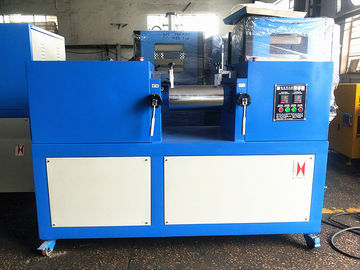

160mm 6 Inch Lab Hot Rubber / Plastic Mixer , Open Two Rolling Mill

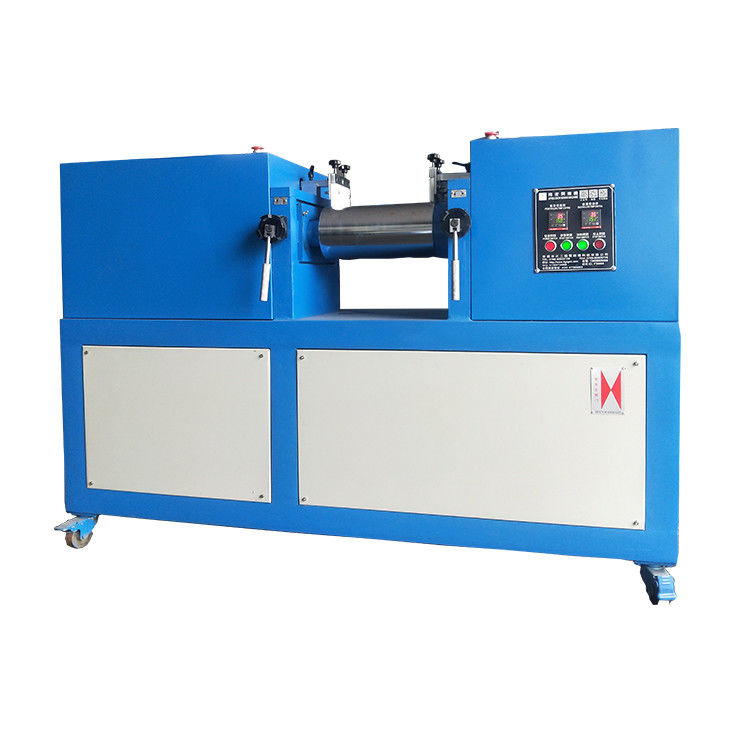

Large Image : 160mm 6 Inch Lab Hot Rubber / Plastic Mixer , Open Two Rolling Mill

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3018

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	160mm 6 Inch Lab Hot Rubber / Plastic Mixer , Open Two Rolling Mill is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	20 Sets

Contact Now

Detailed Product Description

Product Name:	160mm 6 Inch Lab Hot Rubber / Plastic Mixer , Open Two Rolling Mill	Diameter Of Roll:	160mm
Length Of Roller Face:	350mm	Mixing Capacity:	0.002-2.8kg
Front Roll Surface Speed:	19rpm	Friction Ratio:	1:1.35
Roll Gap Range:	0-6mm	Roll Gap Range:	0-6mm
Driving Power:	2.2Kw
Highlight:	rubber tensile testing machine , rubber testing equipments

160mm 6 Inch Lab Hot Rubber / Plastic Mixer, Open Two Rolling Mill

Two roll mixing machines are engineered to provide unmatched performance for masticating and kneading natural rubber, synthetic rubber, EVA, or PVC pellets with various chemical materials. This machine is primarily used for plastic, hot mill, and mixing mill operations of natural and synthetic rubber in rubber product manufacturing facilities.

Applications

Plastic open two roll mixing mill. Widely used in rubber and plastics industry for polymer mixing applications including PVC and color master batch production. The system consists of rolls, bearings, gap adjusting device, electric control system, safety devices, and more.

Key Features

Multiple roll construction options: drilled roll, bored roll, grooved roll
Rolls manufactured from chilled cast alloy iron with hardness reaching 70HB
Customizable speed ratio based on customer formulas and processing requirements
Automatic feeding oil or grease lubrication for easy maintenance and machine protection
Frame, frame cap, and base are welded and stress-relieved through annealing treatment
Brake and emergency stop devices ensure personnel and equipment safety
Human-centered control system design for operator safety
Multiple roll nip adjustment methods: manual or electric operation

Technical Specifications

Model	ZL-3018-76	ZL-3018-120	ZL-3018-160	ZL-3018-200	ZL-3018-230	ZL-3018-300	ZL-3018-400
Diameter of roll (mm)	76	120	160	200	230	300	400
Length of roller face (mm)	300	350	350	500	650	650	900
Mixing Capacity (kg)	0.002-0.6	0.002-2	0.002-2.8	0.002-5	0.005-10	1-15	5-30
Front roll surface speed (rpm)	19	19	19	19	19	19	19
Friction ratio	1:1.30	1:1.35	1:1.35	1:1.35	1:1.27	1:1.27	1:1.27
Roll gap range (mm)	0-3	0-6	0-6	0-8	0-12	0-12	0-15
Driving Power (KW)	1	1.5	2.2	7.5	11	30	37
Machine weight (kg)	160	460	660	860	1960	2960	3800
Overall dimension (mm)	1100x400x1180	1100x550x1380	1200x650x1380	2200x750x1380	2200x950x1580	2600x950x1580	5295x1789x170

Additional Specifications

Heating Mode: Electricity heating, Oil Heating (optional)

Cooling Mode: Water Cooling (optional)

Roll Temperature: Room temperature - 300℃

Roll Hardness: HRC 50 ~ 60

Temperature Accuracy: ±2℃ (using high accuracy PID micro computer controller)

Safety Device: 6 safety buttons with optional safety guard

Power: 380V 3 phase 50-60hz

Intelligent Control Panel and PLC Control System

Real-time data recording and export of kneading time, temperature (mixing chamber and front/rear rotors), ram pressure, current, torque, and recipe code
Control system supports up to 20 mixing steps and 20 recipe storage spaces
Remote import of process recipes and data monitoring capability, communicating with MES via Ethernet interface
Ethernet communication interface with 20% control points reserved, includes touch screen interface
