JIS Motor Drive Spring Elongation Tester , Wire Tensile Testing Machine

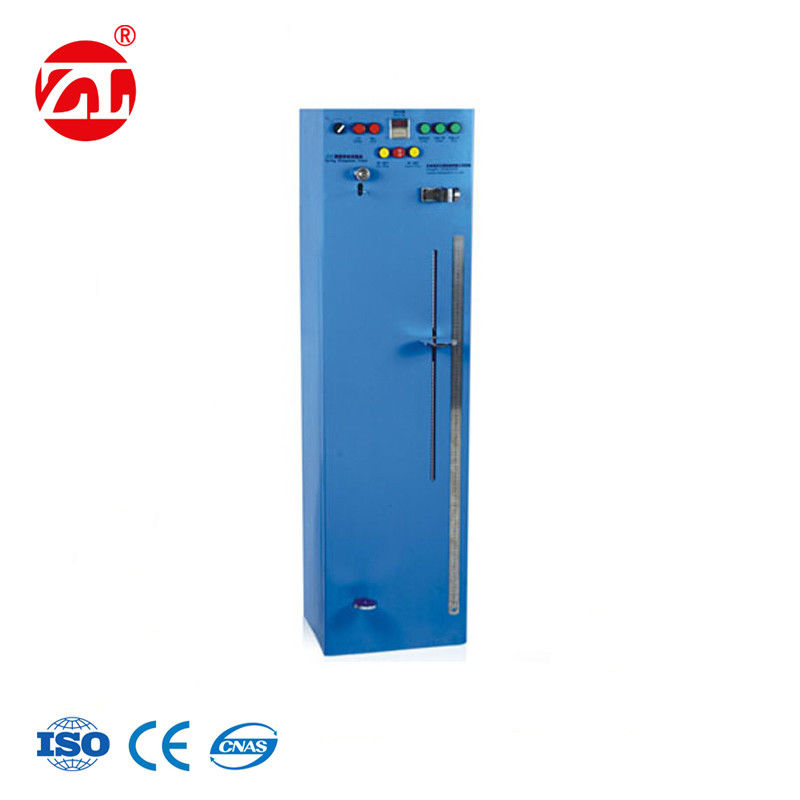

Large Image : JIS Motor Drive Spring Elongation Tester , Wire Tensile Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2723

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	JIS Motor Drive Spring Elongation Tester , Wire Tensile Testing Machine is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	JIS Motor Drive Spring Elongation Tester , Wire Tensile Testing Machine	Winding Speed:	50±5mm/S
Winding Extension:	Motor Drive	Consumed Power:	≤200W
Weight:	40 Kg	Input Power Supply:	AC220V±10% 50Hz
Highlight:	cable testing device , cable flex tester

JIS Motor Drive Spring Elongation Tester, Wire Tensile Testing Machine

Product Overview

This JIS Standard Motor Drive Spring Elongation Tester is designed for testing spring elongation performance of enameled wire, conforming to Japanese JIS standards.

Key Features

Complies with Japanese JIS standards
Tests spring elongation performance for enameled wire with conductor diameters from 0.100mm to 1.600mm
Convolutes 1000mm enameled wire into springs with 10D diameter
Customizable poise selection based on user requirements
Eliminates manual measurement of spring length before and after hanging poises
Automatic pointer indication of spring elongation length

Technical Specifications

Parameter	Specification
Measurement Range	Φ(0.1~1.6)mm
Winding Speed	50±5mm/S
Poise Falling Speed	50±5mm/S
Round Bars	Φ(1~16)mm, total 16 pieces
Loading Weights	5.5g, 10g, 15g, 20g, 30g, 50g, 100g, 200g, 300g, 500g (total 10 pieces)
Winding Extension	Motor drive
Input Power Supply	AC220V±10% 50Hz
Power Consumption	≤200W
Dimensions	L×W×H 420×320×1400mm
Weight	40 Kg
