IEC60851-6 Cable Testing Machine Double - Deck Shelf Intelligent Thermal Voltage Tester

Large Image : IEC60851-6 Cable Testing Machine Double - Deck Shelf Intelligent Thermal Voltage Tester

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2721

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	IEC60851-6 Double-deck Shelf RD-300 Intelligent Thermal Voltage Tester is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	IEC60851-6 Double-deck Shelf RD-300 Intelligent Thermal Voltage Tester	Temperature Range:	RT＋10～300℃
Size Of Workroom:	L×W×H 400×500×550 Mm	Temperature Fluctuation:	0.5℃
Temperature Equality:	≤2.5℃	Heating Power:	1750W
Highlight:	cable testing device , cable flex tester

IEC60851-6 Cable Testing Machine Double-Deck Shelf Intelligent Thermal Voltage Tester

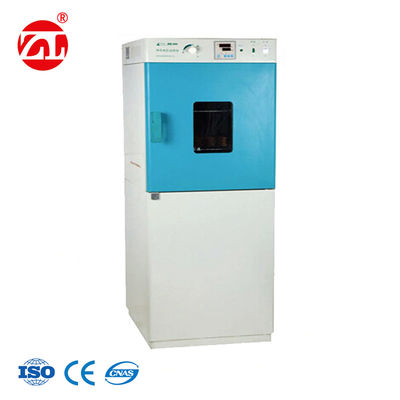

IEC60851-6 Double-deck Shelf RD-300 Intelligent Thermal Voltage Tester

This advanced testing equipment is designed for high-temperature cutting-through enameled wires testing and thermal shock testing, featuring intelligent temperature control and a double-deck shelf configuration for enhanced testing capabilities.

Product Features

Implementation Standard: IEC60851-6
Works with voltage tester for high-temperature cutting-through enameled wires test and thermal shock test
Double-deck shelf design for heating samples, work pieces, and drying or aging components
Highly intellectualized digital temperature-regulating instrument with preset temperature display, over-temperature alarm, and PID parameter self-completion
Easy to operate with user-friendly controls
Stainless steel internal components (gallbladder, fan blade, calefaction tube) prevent sample contamination
High-temperature resistant silicon rubber strip sealing for optimal performance
Durable ceramic insulator construction

Technical Specifications

Parameter	Specification
Temperature Range	RT＋10～300℃
Workroom Size	L×W×H 400×500×550 mm
Temperature Fluctuation	0.5℃
Temperature Equality	≤2.5℃
Input Power Supply	AC220V±5% 50Hz
Heating Power	1750W
Dimension	L×W×H 780×600×1700 mm
Weight	87Kg
