Automatic Calculate Unidirectional Scraping Tester With LCD Screen

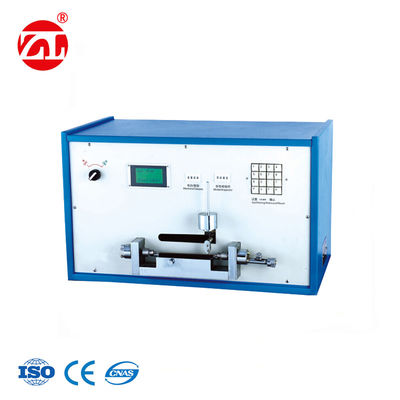

Large Image : Automatic Calculate Unidirectional Scraping Tester With LCD Screen

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2717

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Automatic Calculate XHUS400 Unidirectional Scraping Tester with LCD Screen is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	Automatic Calculate XHUS400 Unidirectional Scraping Tester With LCD Screen	Move Distance Of Scrape Device:	＞100mm
Speed Of Scraping Device:	400±40mm/min	Diameter Of Scraper:	0.23±0.01mm
Short Circuit Current:	20±0.5mA	Sample Voltage:	DC6.5±0.5V
Error Of Scraping Force:	＜±5%	Consumed Power:	≤150W
Highlight:	cable testing device , cable flex tester

Automatic Calculate XHUS400 Unidirectional Scraping Tester with LCD Screen

Product overview:

• Implementation standard: IEC60851-3

• It is applied to test scrape resistance of round enameled wire with diameter wider than 0.250mm.

• 32 bit RAM control system

• It calculates and displays scraping-force and average scraping-force automatically.

• Sample’s supporting table-board can ascend and descend parallel so that the whole table-board can contact closely with the sample.

• It adopts fine ball screw to drive the scraper ,which will not shiver when move..

• It adopts stainless precision drill chuck for wire..

• The LCD screen can indicate the testing steps and display the testing result.

• All the testing data and the sample characteristics value can be transfer to computer automatically, the MPS6 enameled wire quality data managerment system can save and analysis these data.

Parameters:

Move Distance of Scrape Device	＞100mm
Speed of Scraping Device	400±40mm/min
Diameter of Scraper	0.23±0.01mm
Sample Voltage	DC6.5±0.5V
Short Circuit Current	20±0.5mA
Error of Scraping Force	＜±5%
Input Power Supply	AC220V±10% 50Hz
Consumed Power	≤150W
Dimension	L×W×H 670×410×420mm
Weight	55Kg
