LCD Screen Thermoplastic Cut - Through Tester With Two Test Methods

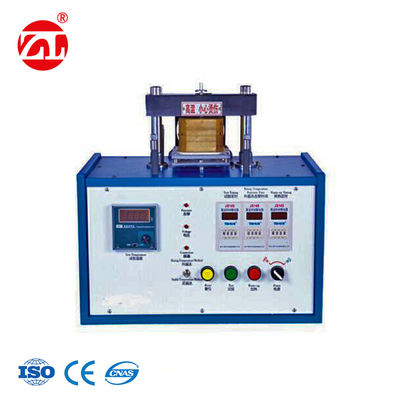

Large Image : LCD Screen Thermoplastic Cut - Through Tester With Two Test Methods

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2716

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	LCD Screen XHTC500 Thermoplastic Cut-Through Tester With Two Test Methods is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	LCD Screen XHTC500 Thermoplastic Cut-Through Tester With Two Test Methods	Test Voltage Between Two Samples:	AC100±10V
Cutting- Through Current:	5±0.5mA	Dimension Of Heating Mould:	100×100×70mm
Test Or Preheating Time:	1” ～ 99'59” Predetermined	Highest Test Temperature:	≤500℃
Input Power Supply:	AC220V±10% 50Hz	Heating Power:	750W
Highlight:	cable testing device , cable flex tester

LCD Screen Thermoplastic Cut-Through Tester With Two Test Methods

Product Overview

The XHTC500 Thermoplastic Cut-Through Tester features an LCD screen and offers two distinct testing methods for comprehensive wire insulation analysis.

Complies with NEMA and JIS standards
Tests round enameled and filmed wires with conductor diameters from 0.1mm to 2.5mm
Provides two testing methods: heated method and constant temperature method
Automatically discharges load and alarms when sample is cut through
Displays test time and temperature upon completion
Features axial-flow fan for rapid cooling between tests
Automatically transfers testing data to computer systems
LCD screen displays testing steps and results clearly

Technical Specifications

Parameter	Specification
Dimension of Heating Mould	100×100×70mm
Test Voltage Between Two Samples	AC100±10V
Cutting-through Current	5±0.5mA
Short-Circuit Current Between Samples	<50mA
Error Between Displayed Temperature and Sample's Temperature	<2℃
Test or Preheating Time	1" ～ 99'59" predetermined
Included Angle Between Heating Mould's Two Winding Slots	90°
120 Seconds Error Allowance of Timing Device	±2s
Highest Test Temperature	≤500℃
Test Temperature of Constant Temperature Method	Room temperature to 500℃ preset
Input Power Supply	AC220V±10% 50Hz
Heating Power	750W
Dimension	L×W×H 520×320×500 mm
Weight	35Kg
