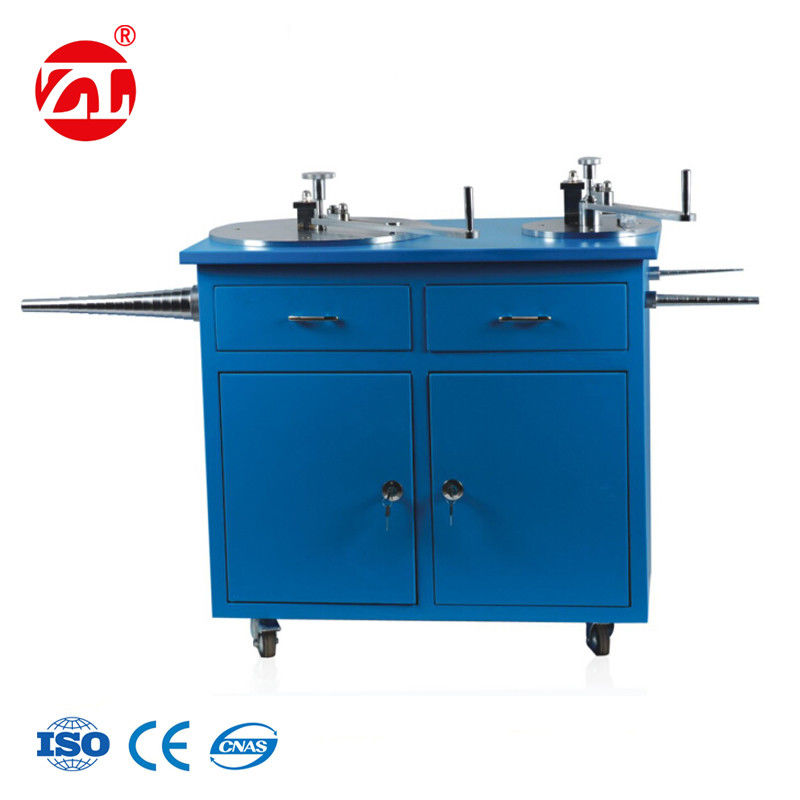

IEC 60851-3 FCB-I Flat Wire Circular Bending Tester With Two Hosts

Large Image : IEC 60851-3 FCB-I Flat Wire Circular Bending Tester With Two Hosts

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2703

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	IEC 60851-3 FCB-I Flat Wire Circular Bending Tester With Two Hosts is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	IEC 60851-3 FCB-I Flat Wire Circular Bending Tester With Two Hosts	Bending Host:	NO.1 And NO.2 Two Hosts
Diameter Of Flange:	NO.1 Host: 260mm;NO.2 Host: 425mm	Turning Angle Of Turning Arms:	NO.1 Host: 350mm;NO.2 Host: 450mm
Standard:	IEC 60851-3
Highlight:	cable testing device , cable flex tester

IEC 60851-3 FCB-I Flat Wire Circular Bending Tester With Two Hosts

The FCB-I flat wire circular bending tester is designed for testing flat magnet wire with a cross-section length of 16mm or less. This includes enameled wires, paper-covered wires, fiber-glass covered wires, film-covered wires, and corresponding flat copper and aluminum wires.

Key Features

Implementation Standard: IEC 60851-3
Dual testing hosts for comprehensive testing capabilities
Compatible with various wire types including enameled, paper-covered, fiber-glass covered, and film-covered wires
Extensive range of testing sticks for precise measurements

Technical Specifications

Component	Specifications
Bending Host	NO.1 and NO.2 two hosts
Diameter of Flange	NO.1 host: 260mm NO.2 host: 425mm
Length of Bending Turning Arm	NO.1 host: 350mm NO.2 host: 450mm
Turning Angle of Turning Arms	>180°
Sticks Number and Diameter Range	Three tower sticks with diameter from 4-80mm 121 kinds of circular sticks with diameter from 4-80mm
