IEC60851-3 LED Twist Peeling Tester Adopt High Intensive Steel Scraper

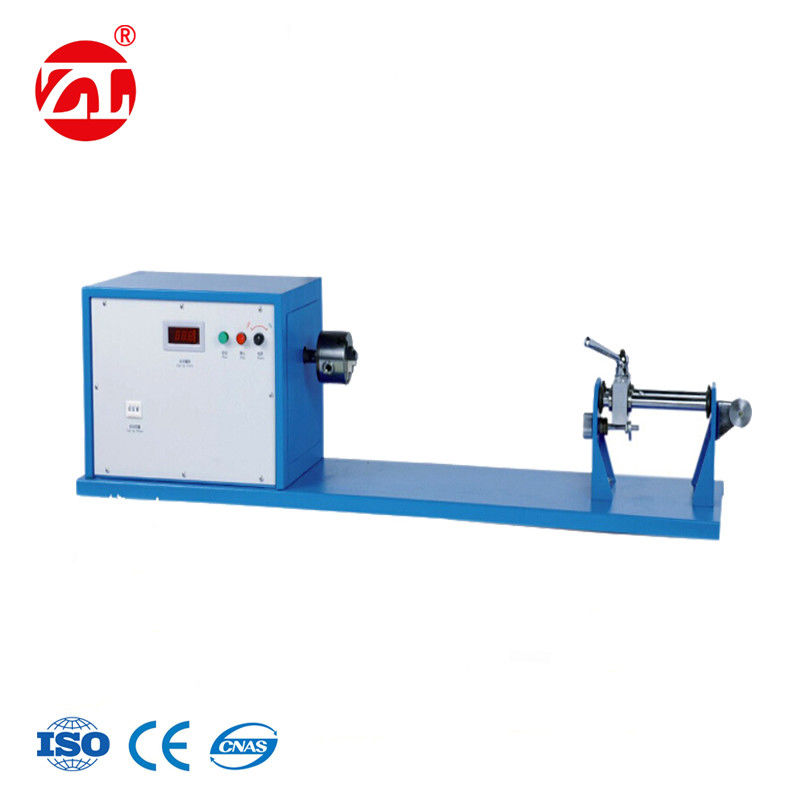

Large Image : IEC60851-3 LED Twist Peeling Tester Adopt High Intensive Steel Scraper

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2702

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	IEC60851-3 LED Twist Peeling Tester Adopt High Intensive Steel Scraper is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	IEC60851-3 LED Twist Peeling Tester Adopt High Intensive Steel Scraper	Twist Speed:	80 R/ Min
Length Of Testing Wire:	500 ± 2mm	Twist Counter Range:	0-999r
Input Power Supply:	AC220V±10% 50Hz	Consumed Power:	≤100W
Highlight:	cable testing device , cable flex tester

IEC60851-3 LED Twist Peeling Tester Adopt High Intensive Steel Scraper

Product Overview

The IEC60851-3 LED Twist Peeling Tester is designed to evaluate the adhesion performance of round enameled wire with conductor nominal diameter wider than 1.0mm, featuring a high-intensity steel scraper for reliable operation.

Key Features

Implementation standard: IEC60851-3
Tests adhesion performance of round enameled wire with conductor nominal diameter wider than 1.0mm
Freely adjustable twist times
LED display for automatic twisting times monitoring
Accurate and reliable twist counter
High-intensity steel scraper for easy operation

Technical Specifications

Twist Speed	80 r/min
Length of Testing Wire	500 ± 2mm
Twist Counter Range	0-999r
Input Power Supply	AC220V±10% 50Hz
Consumed Power	≤100W
Dimension	L×W×H 1280×300×310mm
Weight	30kg
