Portable Thermometer Calibration Dedicated Blackbody Furnace 220V AC 50HZ 100W

Portable Thermometer Calibration Dedicated Blackbody Furnace 220V AC 50HZ 100W
Portable Thermometer Calibration Dedicated Blackbody Furnace 220V AC 50HZ 100W Portable Thermometer Calibration Dedicated Blackbody Furnace 220V AC 50HZ 100W Portable Thermometer Calibration Dedicated Blackbody Furnace 220V AC 50HZ 100W Portable Thermometer Calibration Dedicated Blackbody Furnace 220V AC 50HZ 100W

Large Image :  Portable Thermometer Calibration Dedicated Blackbody Furnace 220V AC 50HZ 100W

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-5048
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Portable Thermometer Calibration Dedicated Blackbody Furnace is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 Sets
Detailed Product Description
Product Name: Portable Thermometer Calibration Dedicated Blackbody Furnace Temperature Measurement Range: 30-50C ° Adjustable
Operation: Push-button Temperature Resolution: 0.01 ℃
Cavity Mouth Diameter: Φ56mm Cavity Depth: 50mm
Cavity Mouth Emissivity: ≥0.99 Temperature Stability: ± 0.1 ℃ / 30min
Temperature Uniformity: ± 0.1C ° Power: 220V AC 50HZ 100W
High Light:

temperature humidity test chamber

,

low temperature refrigerator

New Design Portable Thermometer Calibration Dedicated Blackbody Furnace





Product Overview:

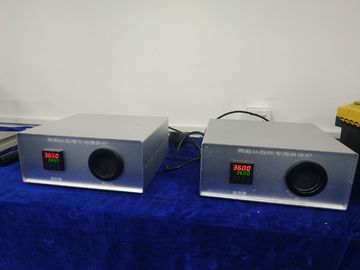

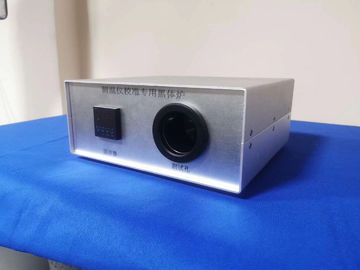

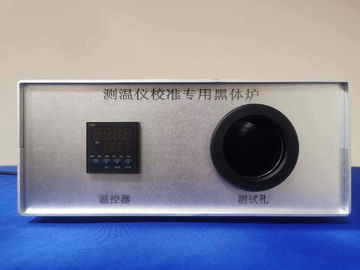

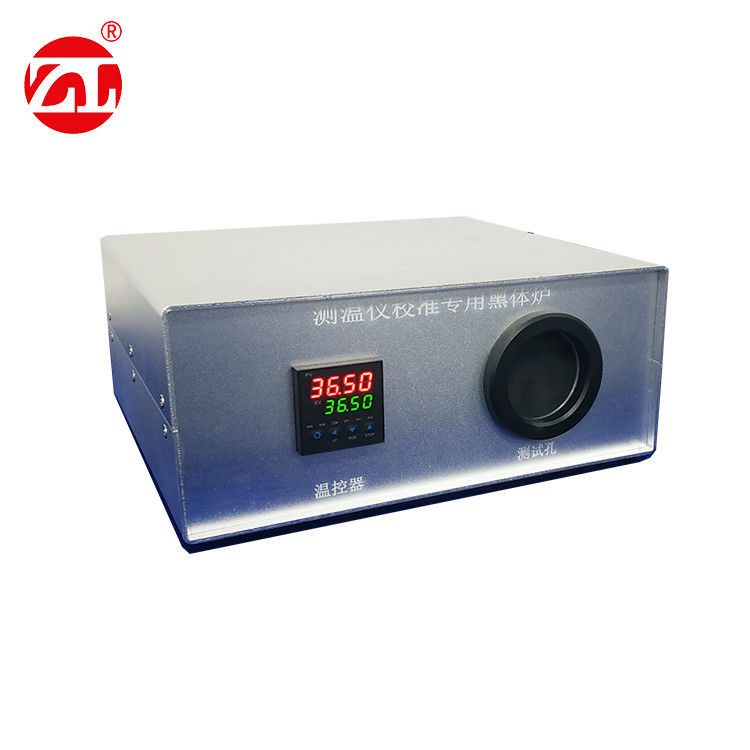

The portable black body stove for infrared body temperature guns is independently developed by our company and is mainly used for the calibration of infrared ear thermometers and infrared forehead thermometers. It can also be used for the calibration of infrared body surface screeners.

Portable infrared body gun black body furnace, through the company's self-developed temperature cycling system, coupled with the use of new materials developed by the company, the emissivity can reach above 0.99, is the best ideal product for calibrating infrared ear thermometer and forehead thermometer .



Product advantages:



  •  New appearance design, LED screen display, easy operation.
  •  The isothermal blackbody cavity has only one cavity mouth. The cavity mouth radiation is uniformly distributed with the spectrum, and the cavity mouth emissivity is above 0.99.
  •  The automatic heating temperature control method is adopted, which is safe and reliable, the heating speed is fast, and the temperature stability is good.
  •  Easy to use, small size, light weight, and easy to carry, not only suitable for laboratory calibration, but also for on-site calibration work.
  •  Using new technology such as double-row digital display of measured value and set value parameter setting, high precision, high function, and strong anti-interference ability.



Specifications:



Model ZL5048
Temperature measurement range 30-50C ° adjustable
Operation Push-button
Temperature resolution 0.01 ℃
Cavity mouth diameter Φ56mm
Cavity depth 50mm
Cavity mouth emissivity ≥0.99
Temperature stability ± 0.1 ℃ / 30min
Temperature uniformity ± 0.1C °
Power 220V AC 50HZ 100W
Weight about 3.0Kg
Dimension 125mm * 305mm * 280mm (length, width and height)



Note: other special requirements can be customized according to user needs
