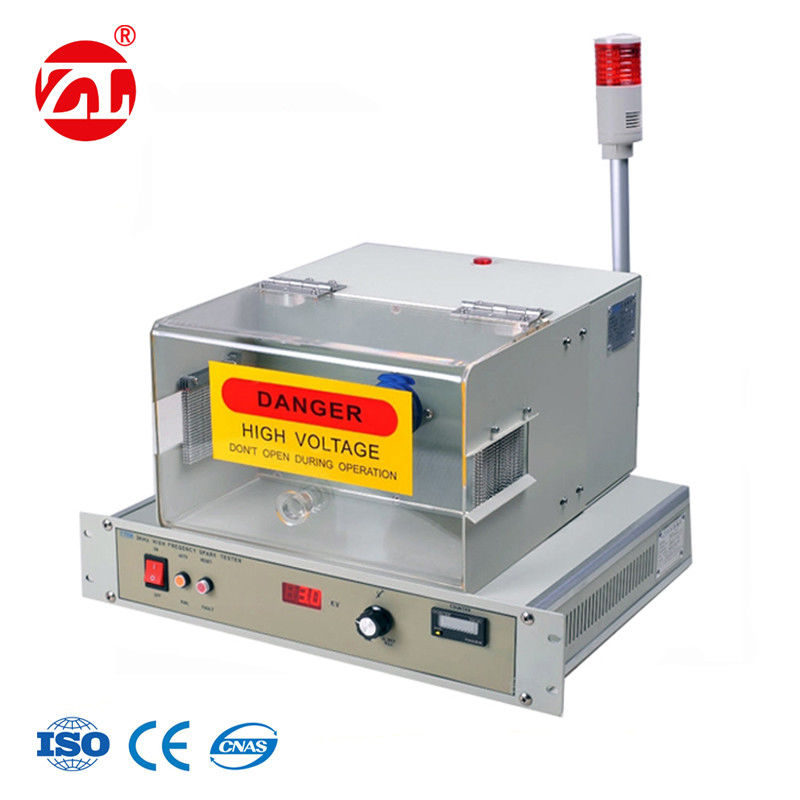

Wet Proof Anti Interference High Frequency Spark Tester , Cable Testing Device

Wet Proof Anti Interference High Frequency Spark Tester  ,  Cable Testing Device
Wet Proof Anti Interference High Frequency Spark Tester  ,  Cable Testing Device

Large Image :  Wet Proof Anti Interference High Frequency Spark Tester , Cable Testing Device

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-1007
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: High Frequency Spark Tester is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 Sets
Detailed Product Description
Product Name: Wet Proof AndAnti Interference High Frequency Spark Tester Cable Diameter: 0~25mm
Operation Temperature: +4~45°C Operation Humidity: <90%RH
Signal Cable Lengths: 5M Weight: Control Unit =5 Kgs, Electrode = 8.5 Kgs
Dimension Controller: 360(L)x485(W)x90(H) Mm Line Speed: 2000 M/min. Maximum
High Light:

cable testing device

,

cable flex tester

Wet Proof Anti Interference High Frequency Spark Tester , Cable Testing Device





Specifications:



Test Voltage:1.0~15.0KV. Cable Diameter: 0~25mm. Output Frequency: 2.5-3.5KHz normal. Fast recovery time after fault (0.1s)

The Sine Wave Spark Tester is a fast and reliable instrument used in distinguish wire faults and detecting bare wires. Its high-speed fault detection feature gives you prompt information without worsening the condition of the wire after the test.

The use of high frequency (3KHz) enables a traditional commercial power frequency bead chain electrode to be shortened to 120mm HS015E Model.

The Sine Wave Spark Tester is quality-assured to meet your needs.



Basic Function

  • Fast recovery time after fault (0.1 second).
  • Occupies short space in line and with improvement factor of 50 compared to
  • traditional CT power frequency electrode.
  • Voltage Display: 0.0~15.0KV digit, 14.2mm LED display, Accuracy +/- 1% of reading
  • Output Control: Front Panel Reset in Manual Mode. Closure time is selectable
  • 0.2s/2s/5s in main board by jumper JP, Form C relay contacts (250VAC/5A) for all
  • wire faults detected.
  • Limits the fault current without damaging the test equipment.
  • Short exposure time to corona does not degrade nor damage good insulation.
  • Distinguishes all wire faults and detects bare wire.
  • Safety Switch interlock.

Basic Specification:



Specification ZL-1007 High Frequency Spark Tester For Cable
Output Voltage 0.0~15.0KV R.M.S.
Test Voltage 1.0~15.0KV R.M.S.
Cable Diameter 0~25mm
Maximum Load Current 4mA Resistive,40mA Capacitive
Output Frequency 2.5-3.5KHznormal
Electrode lengths Bead Chain 120mm
Fault Indication Indicating lamp,Counting by Digital Counter
Output Control 1 Form C relay Contacts(220VAC/5A)for all wire faults and bare wire faults detected
Input Control SP1, SP2 input interlock control
Operating Model Extruder Continuous Application
Power Source 175~264 Volts, 180VA, Single phase, 50/60 Hz
Operation Temperature +4~45°C
Operation Humidity <90%RH
Signal Cable Lengths 5M
Weight Control Unit =5 kgs, Electrode = 8.5 kgs
Dimension Controller 360(L)x485(W)x90(H) mm
Gauge Head 330(L)x200(W)x390(H)
Line Speed 2000 M/min. maximum*



*Follow UL 44, any point on the wire being traveled for not less than a total of 18 positive or negative crests of the supplied voltage.
