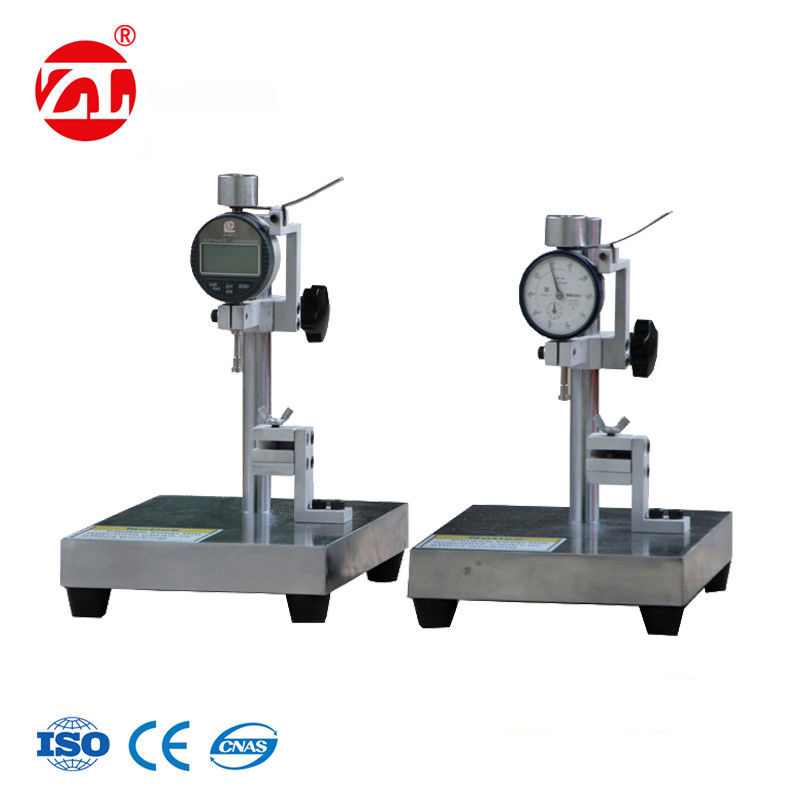

Desktop Style Wire Insulation Coating Thickness Tester Scale On Base

Large Image : Desktop Style Wire Insulation Coating Thickness Tester Scale On Base

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-1006

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wire Insulation Coating Thickness Tester is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	Wire Insulation Coating Thickness Tester	Measuring Range:	0.01-10mm
Load (option):	10gf, 25gf, 85gf (selection)	Up Clip:	Width 8 Mm, Thickness 1mm
Down Clip:	0.4,0.6,0.8,1.0 Mm	Volume:	11 × 15 × 25cm
Highlight:	cable testing device , cable flex tester

Desktop Style Wire Insulation Coating Thickness Tester Scale On Base

Product Overview

Desktop Style Wire Insulation Coating Thickness Tester with scale on the base, featuring needle clip for testing deformity and tube material with accurate measurement capabilities.

Testing Capabilities

This precision tester is designed specifically for measuring the thickness of wire insulation coatings. The desktop configuration provides stable operation while the integrated scale on the base ensures accurate readings.

Desktop style design for stable operation
Integrated scale on base for precise measurement
Needle clip system for testing deformity and tube materials
High accuracy measurement capabilities

Technical Specifications

Model	ZL-1006
Measuring Range	0.01-10mm
Load (optional)	10gf, 25gf, 85gf (selection)
Upper Clip	Width 8mm, Thickness 1mm
Lower Clip	0.4, 0.6, 0.8, 1.0 mm
Dimensions	11 × 15 × 25cm
Weight	4kg
