Ultra-quiet Programmable 5 ~ 400HZ Sine Wave Vertical Vibration Tester

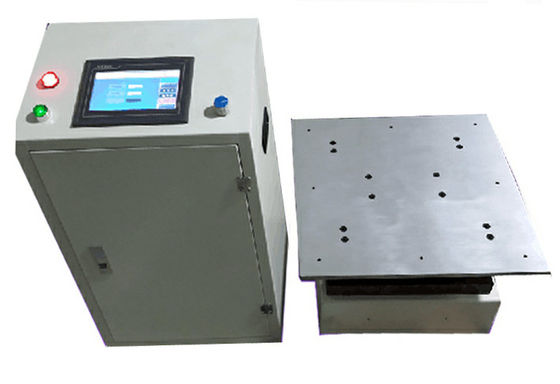

Large Image : Ultra-quiet Programmable 5 ~ 400HZ Sine Wave Vertical Vibration Tester

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-1002

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Programmable 5 ~ 400HZ Vertical Vibration Tester is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	Programmable 5 ~ 400HZ Vertical Vibration Tester	Amplitude (adjustable Range Mmp-p):	0 ~ 5mm Can Be Arbitrarily Adjusted
The Maximum Acceleration:	20g.	The Vibration Form:	Sine Wave
The Set Range:	1 ~ 350000S	Time Control:	Any Time Can Be Set (seconds).
The Power Supply Voltage (V):	220 ± 20% / (50 / 60Hz)	The Maximum Current:	20 (A)
Highlight:	cable testing device , cable flex tester

Ultra-quiet Programmable 5 ~ 400HZ Sine Wave Vertical Vibration Tester

Product Features

Self-developed drive and control system for stable and reliable operation
Thick aluminum plate test table with precision machining for ultra-quiet performance
Vertical electrical control box with beautiful structure, good stability, and easy operation
Swept and fixed frequency FM operation modes with time control for various industry test requirements
Anti-magnetic and anti-jamming capability
Safe and reliable protection systems

Main Technical Parameters

Parameter	Specification
Vibration Frequency	5 ~ 400Hz (±0.1%) can be arbitrarily set, any frequency can be customized
Maximum Test Load	Within 0 ~ 50kg / maximum exciting force range 2000kgf, customizable according to customer requirements
Vibration Table Size	500×500mm, table has 10mm threaded holes and four sides with center holes about 7cm hook
Frequency Range	5 ~ 400Hz - FM frequency / amplitude / acceleration can be set
Sweep Range	5 ~ 400Hz - Sweep frequency / rate / amplitude / acceleration can be arbitrarily set, standard swept back and forth with recycling capability
Programmable Range	5 ~ 400Hz - Programmable frequency / amplitude / acceleration can be set
Octave Range	5 ~ 400Hz - Octave frequency / amplitude / acceleration can be set
Amplitude	0 ~ 5mm (mmp-p) can be arbitrarily adjusted
Maximum Acceleration	20g
Simple Acceleration Setting	5 ~ 400Hz sweep frequency within acceleration constant
Simple Amplitude Setting	5 ~ 400Hz sweep frequency within the same amplitude
Vibration Form	Sine wave
Set Range	1 ~ 350000 seconds
Time Control	Any time can be set (seconds)
Precision	Frequency display to 0.01Hz
Power Supply Voltage	220V ± 20% / (50/60Hz)
Maximum Current	20A
Cooling	Natural air cooling
Working Environment Temperature	0 ~ +45℃

Shaker Main Features

Vibration Mode: Y + (X or Z-axis)
Sine wave operation
Vertical vibration capability

Safety Devices

Timing automatic power cutoff
Overload automatic power cutoff
Safety warning light equipment

Electromagnetic Vibration Table Technical Parameters

Parameter	Specification
Vibration Table Size	500×500mm
Vibration Direction	Vertical
Maximum Load	50KG with 20g acceleration
Frequency Range	5-400Hz (adjustable)
Sweep Range	5-400Hz with arbitrary upper/lower frequency and time settings
Amplitude (Load)	0-5mm (varies with frequency in sweep range)
Time Control	Seconds (maximum 99H99M)
Vibration Machine Power	1.5KW
Power Supply Voltage	220V ± 10%
Maximum Current	5A

Example: Set upper frequency 60Hz, lower frequency 10Hz, time 1min - machine will sweep back and forth between 10-60Hz and 60-10Hz
