| Product Name: | 5030C Dual Search Unit X-Ray Security Scanner | Maximum Load Capacity: | 150Kg |
|---|---|---|---|
| Penetration: | 10mm Steel Plate | Conveyor Speed: | 0.22 M Seconds |
| Channel Size: | 500 (W) X 300 (H) Mm | Power: | <0.5kw/h |
| Working Voltage: | 110~240VAC (-10%~+20%) 50/60±3Hz | Penetration Resolution: | Φ0.127mm, Wire |
| High Light: | conveyor metal detector,metal detector checkweigher |
||

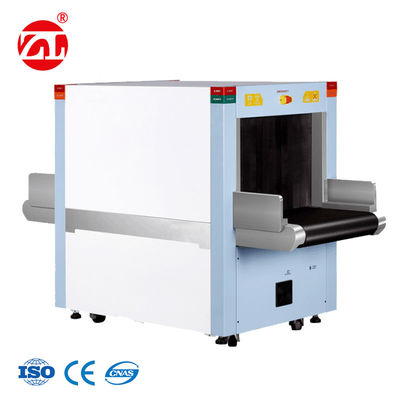

5030C Dual Search Unit X-Ray Security Scanner , 1-64 times stepless amplification
Main use and scope of use
It can quickly and effectively detect all kinds of dangerous goods and is widely used in bus station railway stations.
High-speed rail station, Hotel , customs, government agencies, embassies, airports, convention centers, courts
Tourist attractions, sports tubes, post offices, express delivery companies, shoe factories, toy factories, luggage
Factory, handbag factory, hotel, school and other security inspection occasions
System functions
Power-on self-test function, multi-level user management, curve diagnosis, image management, equipment
Information query, OSD operation function, multi-format image export, image mirroring
1-64 times stepless amplification, operator training, precise positioning of package images, remote operation
Software, one shutdown.
Scanner Function
Image processing functions: color, black and white, high wear, low wear,local enhancement, super increase,
Organic rejection, inorganic removal, reverse color, highlighting, darkening, gray sweeping, magnification
Pseudo-color, organic enhancement, suspicious object alarm mark, edge enhancement processing.
X-ray generator
Tube voltage: 80k∨ (default), can be customized according to customer requirements tube current 0.2~0.6mA
Cooling / working time: cooling with sealing oil / 100%
Beam direction: divergence angle from the bottom diagonal (60°)
Basic parameters
| Maximum load capacity | 150Kg |
| Penetration | 10mm steel plate |
| Conveyor speed | 0.22 m seconds |
| Penetration resolution | Φ0.127mm, wire |
| Line resolution | Φ0.0787mm, wire |
| Noise | ≤55dB |
| Spatial resolution | horizontal: Φ1.0mm, vertical: Φ1.0mm. |
Radiation safety indicator
Single dose: less than 1 micro sievert (μGy)
Leakage radiation dose rate: less than 0.3 micro sievert (μGy) (tested anywhere from 5cm outside the device surface)
Meets and exceeds domestic and international health and safety standards.
Efficient anti-radiation: double-layer staggered, wear-resistant, strong lead curtain ultra-thick 2~5mm lead plate to ensure safe and reliable equipment
Film Safety: Safe for SO1600 film.
Installation parameters:
| Channel size | 500 (W) x 300 (H) mm |
| Conveyor height | 740mm |
| Product size | 1550mm (L) x 720mm (W) x 1193mm (H) |
| Wooden box packaging size | 1750mm (L) x 850mm (W) x 1400mm (H) |
| Net weight | 200kg |
| Gross weight | 250kg |
| Display | Standard 19-inch (16:10/1440·900) display |
| Keyboard | PC keyboard, optional industrial keyboard |
| Operating temperature | (-20) ° C - (+60) ° C / working humidity 5% to 95% no condensation; no condensation. |
| Storage temperature | (-30) ° C - (+70) ° C / working humidity 5% to 95% no condensation; no condensation |
| Working voltage | 110~240VAC (-10%~+20%) 50/60±3Hz |
| Power | <0.5kw/h |
| Certification | Comply with the electrical safety IEC standard, the product meets the CE requirements EMC/LVD/ROHS) directive |
