Product Name: | 5030 High Resolution X - Ray Security Scanner Max. Load 150kg | Channel Size: | 500 (W) X 300 (H) Mm |
---|---|---|---|
Display: | Standard 19-inch (16:10/1440·900) Display | Keyboard: | PC Keyboard, Optional Industrial Keyboard. |
Power: | <0.5kw/h | Conveyor Speed: | 0.22 M Seconds. |
Maximum Load Capacity: | 150Kg | Penetration: | 10mm Steel Plate |
Highlight: | food metal detector,metal detector checkweigher |

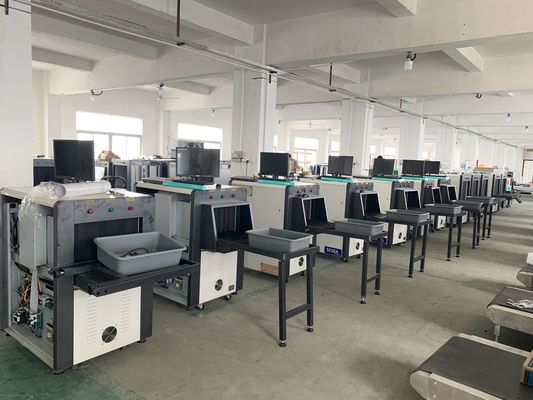

5030 High Resolution X - Ray Security Scanner Max. Load 150kg
Scanner Function
Image processing functions: color, black and white, local enhancement, high wear, low wear, super increase, organic rejection, inorganic removal, reverse color, highlighting, darkening, gray sweeping, magnification pseudo-color, organic enhancement, suspicious object alarm mark, edge enhancement processing.
System functions
Power-on self-test function, multi-level user management, image management, curve diagnosis, equipment information query, multi-format image export, OSD operation function, image mirroring 1-64 times stepless amplification, operator training, precise positioning of package images, remote operation software, one shutdown
Main use and scope of use
It can quickly and effectively detect all kinds of dangerous goods and is widely used in bus station railway stations. High-speed rail station, customs, government agencies, embassies, airports, convention centers, courts, tourist attractions, sports tubes, post offices, express delivery companies, shoe factories, toy factories, luggage, Factory, handbag factory, hotel, school and other security inspection occasions.
Basic parameters
Conveyor speed | 0.22 m seconds. |
Maximum load capacity | 150Kg. |
Penetration | 10mm steel plate |
Line resolution | Φ0.0787mm, wire |
Penetration resolution | Φ0.127mm, wire |
Spatial resolution | horizontal: Φ1.0mm, vertical: Φ1.0mm |
Noise | ≤55dB |
X-ray generator
Tube voltage: | 80k∨ (default), can be customized according to customer requirements tube current 0.2~0.6mA |
Cooling / working time | cooling with sealing oil / 100% |
Beam direction |
Divergence angle from the bottom diagonal (60°) |
Radiation safety indicator
Single dose | less than 1 micro sievert (μGy) |
Leakage radiation dose rate | less than 0.3 micro sievert (μGy) (tested anywhere from 5cm outside the device surface) |
Efficient anti-radiation | double-layer staggered, wear-resistant, strong lead curtain ultra-thick 2~5mm lead plate to ensure safe and reliable equipment |
Film Safety | Safe for SO1600 film. |
Meets and exceeds domestic and international health and safety standards. |
Installation parameters:
Channel size | 500 (W) x 300 (H) mm |
Conveyor height | 740mm |
Product size | 1550mm (L) x 720mm (W) x 1193mm (H) |
Wooden box packaging size | 1750mm (L) x 850mm (W) x 1400mm (H) |
Net weight | 200kg |
Gross weight | 250kg |
Display | Standard 19-inch (16:10/1440·900) display |
Keyboard | PC keyboard, optional industrial keyboard. |
Operating temperature | (-20) ° C - (+60) ° C / working humidity 5% to 95% no condensation; no condensation. |
Storage temperature | (-30) ° C - (+70) ° C / working humidity 5% to 95% no condensation; no condensation. |
Working voltage | 110~240VAC (-10%~+20%) 50/60±3Hz |
Power | <0.5kw/h |
Certification | Comply with the electrical safety IEC standard, the product meets the CE requirements EMC/LVD/ROHS) directive. |
