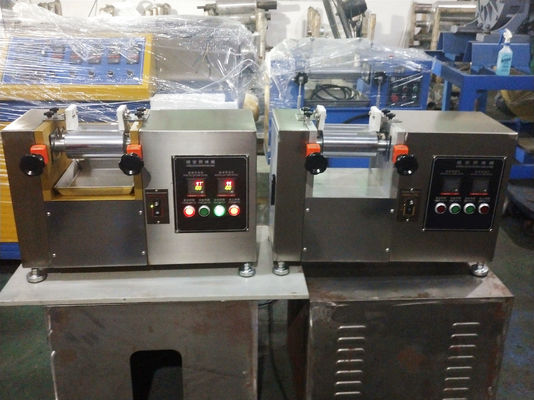

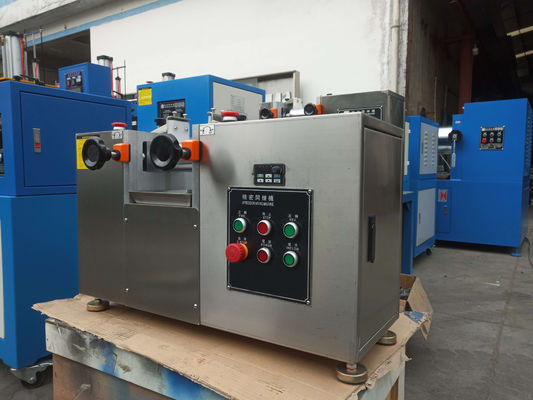

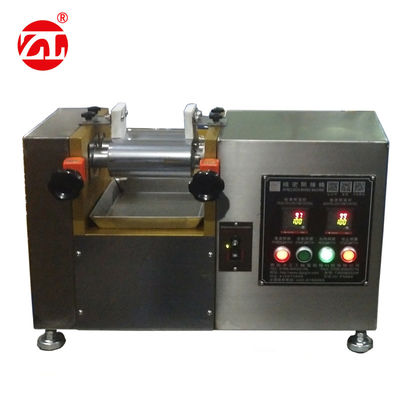

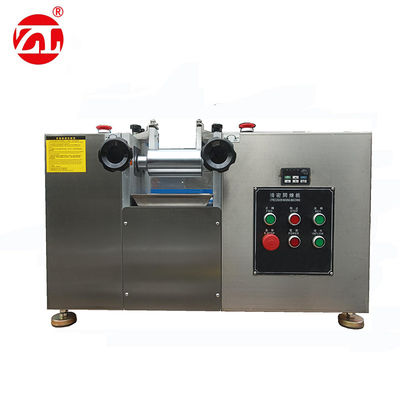

Desktop Type Mini Open Mixing Mill For Rubber Industry

Large Image : Desktop Type Mini Open Mixing Mill For Rubber Industry

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3018B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Desktop Type Mini Open Mixing Mill is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	50 sets / month

Contact Now

Detailed Product Description

Product Name:	Food Grade Desktop Type Mini Open Mixing Mill	Heating Mode:	Electricity Heating / Oil Heating
Cooling Mode:	Water Cooling ( Option)	Roll Temperature:	Room Temperature -- 300℃
Roll Hardness:	HRC 50 ~ 60	Temperature Accuracy:	± 2 ℃
Highlight:	rubber tensile testing machine , rubber testing equipments

Desktop Type Mini Open Mixing Mill For Rubber Industry

Professional mixing mill designed for food industry and pharmaceutical applications, engineered to provide unmatched performance for masticating and kneading natural rubber, synthetic rubber, EVA, or PVC pellets with various chemical materials.

Primary Applications

This machine is mainly used for plastic processing, hot milling, and mixing of natural and synthetic rubber in rubber product factories. With its food-grade manufacturing standards, it is also suitable for food industry and pharmaceutical applications.

Plastic Open Two Roll Mixing Mill

Widely used in rubbers and plastics industry for polymer mixing, such as PVC and color master batch. The system consists of roll, bearing, gap adjusting device, electric control system, safety device, and more.

Key Features

Construction of mill rolls: drilled roll, bored roll, grooved roll
Customizable speed ratio designed according to customer formulas and processing requirements
Frame, frame cap and base are welded and treated by annealing for stress relieving
Rolls material is chilled cast alloy iron with hardness reaching 70HB
Brake and emergency stop device ensures personnel and equipment safety
Auto feeding oil or grease lubrication for easy maintenance and machine protection
Human nature designed controlling system ensures labor safety
Methods of adjusting roll nip: manual or electric

Intelligent Control System

Advanced PLC control system with real-time data recording and export capabilities for kneading time, temperature (mixing chamber and front/rear rotors), ram pressure, current, torque and recipe code.

Control system can be set up to 20 mixing steps with 20 recipe spaces
Remote import of process recipe and data monitoring capabilities
Ethernet communication interface for MES integration
20% of control points reserved for future expansion
Touch screen interface provided

Technical Specifications

Model	ZL-3018-76	ZL-3018-120	ZL-3018-160	ZL-3018-200	ZL-3018-230	ZL-3018-300	ZL-3018-400
Diameter of roll (mm)	76	120	160	200	230	300	400
Length of roller face (mm)	300	350	350	500	650	650	900
Mixing Capacity (kg)	0.002-0.6	0.002-2	0.002-2.8	0.002-5	0.005-10	1-15	5-30
Front roll surface speed (rpm)	19	19	19	19	19	19	19
Friction ratio	1:1.30	1:1.35	1:1.35	1:1.35	1:1.27	1:1.27	1:1.27
Roll gap range (mm)	0-3	0-6	0-6	0-8	0-12	0-12	0-15
Driving Power (KW)	1	1.5	2.2	7.5	11	30	37
Machine weight (kg)	160	460	660	860	1960	2960	3800
Overall dimension (mm)	1100x400x1180	1100x550x1380	1200x650x1380	2200x750x1380	2200x950x1580	2600x950x1580	5295x1789x170
