High - Precision Constant Temperature Tank For Enameled Wire Or Insulation Coating

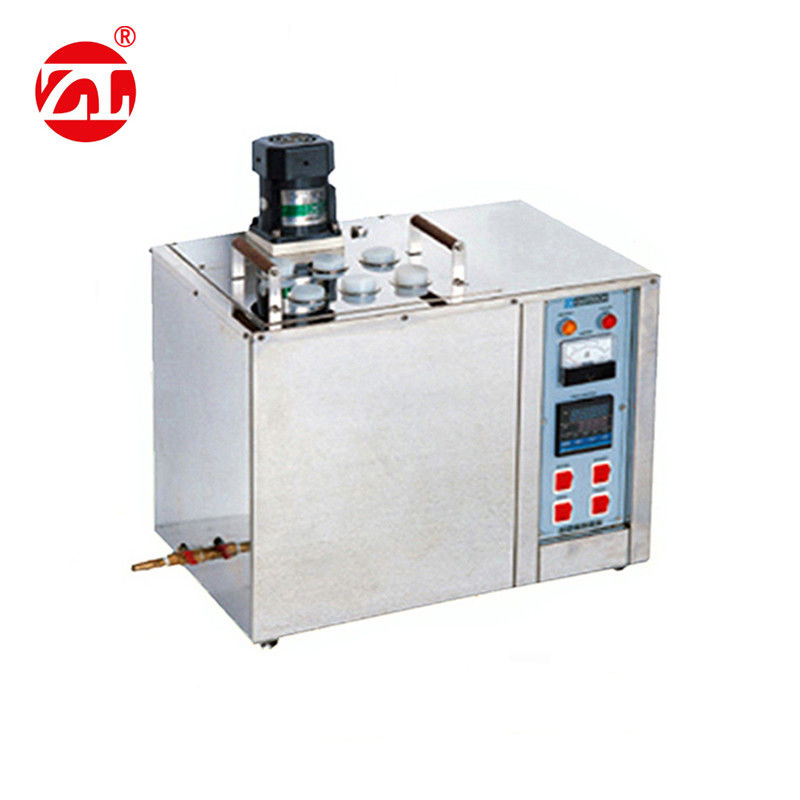

Large Image : High - Precision Constant Temperature Tank For Enameled Wire Or Insulation Coating

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-7009A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Constant temperature tank is packaged within wooden case.
Delivery Time:	4-7 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	40 sets / month

Contact Now

Detailed Product Description

Product Name:	Constant Temperature Tank	Testing Space:	About 30 × 30 × 20 Cm
Temperature Range:	RT ～ 250 ℃	Stirring Motor:	25 W
Thermostat:	300 ℃	Timer:	24 H
Highlight:	cable testing device , cable harness tester

High-Precision Constant Temperature Tank For Enameled Wire Or Insulation Coating

Equipment Overview

The constant temperature tank is a high-precision immersion testing temperature equipment designed for exceptional temperature control, uniformity, and stability. This machine is specifically applied to test oil resistivity for enameled wire and insulation coating. Testing involves immersing the specimen in the constant temperature tank for a specified duration, then measuring the tensile residual value to evaluate the coating quality of enameled wire.

Product Specifications

Enameled wire using the insulating oil CNS-1326
Enameled wire testing temperature: 100℃, testing duration: 24 hours
Oil-resin testing temperature: 100℃, testing duration: 6 hours
Specimen length: 20 cm

Technical Parameters

Parameter	Specification
Testing Space	Approximately 30 × 30 × 20 cm
Temperature Range	RT ～ 250℃
Stirring Motor	25 W
Thermostat	300℃
Timer	24 H
Power	1 ∮ 220V
Machine Size	Approximately 65 × 43 × 35 cm
Machine Weight	Approximately 17 kg

Included Accessories

One-year warranty book and operating instructions
200℃ mercury thermometer
