Product Name: | IPX8 Water-resistance Testing Machine | Tank Diameter(m): | 0.5 Meter |
---|---|---|---|
Water Level Inside Tank: | 1.0 Meter | Machine Outer Size: | 600*780*1300mm |
Tank Material: | SUS304# | Time Control: | 0-999Min |
Highlight: | temperature humidity test chamber,low temperature refrigerator |

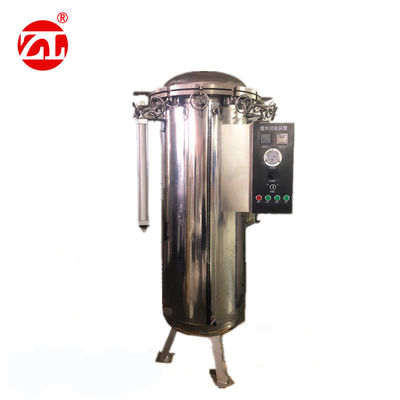

IPX8 Water-resistance Testing Machine For Automobiles , Motorcycles etc
Product Usage:
Used to detect the protective performance of the appliance (IPX8) with waterproof performance requirements.
IPX8 prevents water intrusion during sunk and prevents the effects of diving; in the case of indefinite sinking of equipment and early designation of water pressure, it can ensure that damage is not caused by water ingress;
IPX8 continuous diving test; test equipment: test conditions and test time according to industry standards. Its severity should be higher than IPX7;
Application range:
The main function of the equipment is to test the physical and other related properties of electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts under simulated rain conditions. After the test, it is judged whether the performance of the product meets the requirements, so as to facilitate the design, improvement, verification and factory inspection of the product.
Standards compliant:
Complies with IEC60529:2001 "DeSCees of protection provided by enclosures (IP Code)", GB4208-2008 "Enclosure Protection Level (IP Code)" 14.2.8 and GB7000.1 "Lamps Part 1: General Requirements and Tests" 9.2.9 Terms and conditions.
Features:
1. Applicable to IPX8 testing of products.
2, IPX8 pressure immersion test device tanks all use SUS304 # stainless steel plate high-precision overall sub-arc welding, outer mirror polishing, inner layer rough throw, beautiful appearance, convenient cleaning and durability.
3, special silicone sealing ring (elasticity, never aging, the tube used for ten years).
4, the electronic control components are all imported LG, Panasonic, Omron, Anliang and other brands.
5, time control function, set the time 0-999 minutes, automatically stop when the set time is reached, and automatically drain the air inside the tank, the tester can open the can lid to take out the test sample.
6. The bottom of the tank body has a water inlet valve and a drain valve, and a 5 meter water hose is provided.
7, the base is equipped with 4 activities with brake casters, easy to move.
8. Manual type--Use the domestic big brand "Red Flag" brand pressure gauge (surface diameter 100mmm, accuracy 1.6) to display the pressure inside the tank. During the operation, the pressure in the tank is controlled by manually adjusting the pressure regulating valve. With the voltage regulation function, the test pressure can be maintained consistently after adjusting the pressure.
9, automatic type - using the imported Panasonic brand "pressure sensor" to automatically control the test pressure inside the tank, control accuracy ± 0.002Mpa, display accuracy of 0.001Mpa.
Product parameters:
No. | Parameter | -IPX8A-30M | IPX8B-30A |
IPX8A- 50M |
IPX8A -50A |
IPX8A -100M |
IPX8A -100A |
1 | Pressure adjust | Manual | Automatic | Manual | Automatic | Manual | Automatic |
2 | Control accuracy(MPa) | View sight(manual) |
±0.002 (Automatic) |
View sight(manual) |
±0.002 (Automatic) |
View sight(manual) |
±0.002 (Automatic) |
3 | Pressure range(MPa) | 0.05-0.3 | 0.00-0.3 | 0.05-0.5 | 0.00-0.5 | 0.05-1.0 | 0.00-1.0 |
4 | Test water depth range(m) | 5-30 | 0-30 | 5-50 | 0-50 | 5-100 | 0-100 |
5 | Relief valve pressure (MPa) | 0.35 | 0.35 | 0.55 | 0.55 | 1.05 | 1.05 |
6 |
Maximum ultimate pressure (MPa) |
0.40 | 0.40 | 0.60 | 0.60 | 1.10 | 1.10 |
7 | Pressure meter accuracy | 0.4mpa | 0.001MPa | 0.4 mpa | 0.001MPa | 0.4 mpa | 0.001MPa |
8 | Tank thickness | 3mm | 3mm | 4mm | 4mm | 6mm | 6mm |
9 | Flange thickness | 20mm | 20mm | 25mm | 25mm | 30mm | 30mm |
10 | Tank diameter(m) | 0.5 meter | |||||
11 | Water level inside tank | 1.0 meter | |||||
12 | Machine outer size | 600*780*1300mm | |||||
13 | Tank Material | SUS304# | |||||
14 | Time control | 0-999Min | |||||
15 | Protective safety | Pressure relief valve protection, leakage switch | |||||
16 | Power | AC220V,100W | |||||
17 | weight(kg) | 100 | 120 | 200 |
