IEC 60335 High Voltage Tracking Tester for Electronic Products

China Dongguan Zhongli Instrument Technology Co., Ltd. certification
China Dongguan Zhongli Instrument Technology Co., Ltd. certification
Exceptional company. 5 STAR!!! Ship rapidly the item and very WELL packed and protected.Very good machinery and very good communication with company. i more than highly recommend using Dongguan Zhongli Instrument.

—— Remy Attalin

The response from the seller was very fast and helpful. Issuing and confirming the PO/PI was done in a single day. The product was shipped the next day after the transaction is confirmed. Couldn't be more satisfied in terms of service provided by the seller. The machine is well packed in wooden case. Everything arrived in good condition. Come with

—— Warunee Nahauythong

I'm Online Chat Now

IEC 60335 High Voltage Tracking Tester for Electronic Products

IEC 60335 High Voltage Tracking Tester for Electronic Products
IEC 60335 High Voltage Tracking Tester for Electronic Products
video play

Large Image :  IEC 60335 High Voltage Tracking Tester for Electronic Products

Product Details:
Place of Origin: CHINA
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-1029B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: IEC 60335 High Voltage Tracking Tester for Electronic Products is packaged within wooden case.
Delivery Time: 4-7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 40 sets / month
Detailed Product Description
Product Name: IEC 60335 High Voltage Tracking Tester For Electronic Products The Volume Of The Box: ≥ 0.5 Cubic Meters, With Glass Observation Door
Power: AC 220V, 50Hz Test Standard: IEC 60335, GB4706.1, IEC60884-1, GB2099.1, GB / T4207-2003, IEC60112.
The Two Poles On The Sample Force: The Use Of Rectangular Platinum Electrode, The Two Poles On The Sample Force Were 1.0N ± 0.05N
High Light:

cable testing device

,

cable harness tester

IEC 60335 High Voltage Tracking Tester for Electronic Products





Test standard:



IEC 60335, GB4706.1, IEC60884-1, GB2099.1, GB / T4207-2003, IEC60112.



Technical Description:



This product is used in electrical products under the influence of moisture and impurity environment, between the different polarity of the live parts or between the live parts and the grounding metal parts may cause insulation on the leakage, the resulting arc caused by electrical breakdown of the electrical or due to Discharge causes the material to erode and even ignite the fire. The test apparatus is a destructive test of the insulating material in the above case to test and evaluate the relative resistance to traceability of the insulator in the presence of electric and impurity water at a specified voltage. Applicable to electrical and electronic products, household appliances, solid electrical insulation materials and their products, such as: relay socket, switch cover, contactor body.



Basic Specifications:



The volume of the box ≥ 0.5 cubic meters, with glass observation door
Electrical load The test voltage between 100 ~ 600V adjustable, short circuit current in 1A ± 0.1A, the voltage drop should not exceed 10%, when the test circuit, short circuit leakage current equal to or greater than 0.5A, the time to maintain 2 seconds, the relay action, cut off the current, indicating that the test failed.
The two poles on the sample force The use of rectangular platinum electrode, the two poles on the sample force were 1.0N ± 0.05N
Droplet Drip height from 30mm ~ 40mm adjustable, the size of the drop of 44 to 50 drops / cm3, dropping time interval of 30 ± 1 second
Power AC 220V, 50Hz





Features:



The test box structural parts made of stainless steel or brass, the electrode head for the platinum metal, high temperature corrosion resistance, accurate counting of the drip, the control system is stable and reliable.

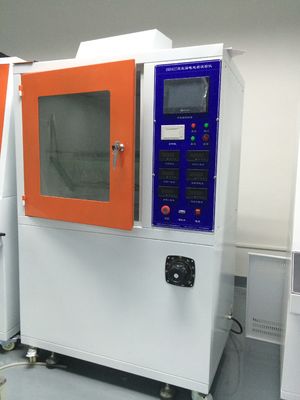

IEC 60335 High Voltage Tracking Tester for Electronic Products 0

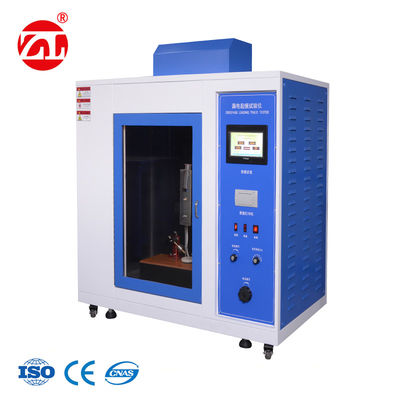

IEC 60335 High Voltage Tracking Tester for Electronic Products 1

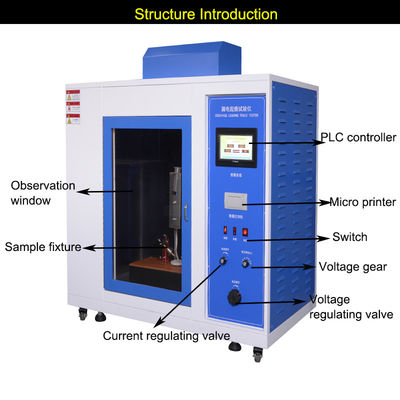

IEC 60335 High Voltage Tracking Tester for Electronic Products 2
